R409.093.S.F4 AS46
Insert
Part number R409093SF4AS46

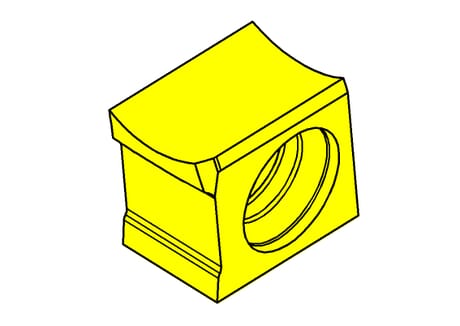

HORN Insert R409.093.S.F4 AS46 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-03

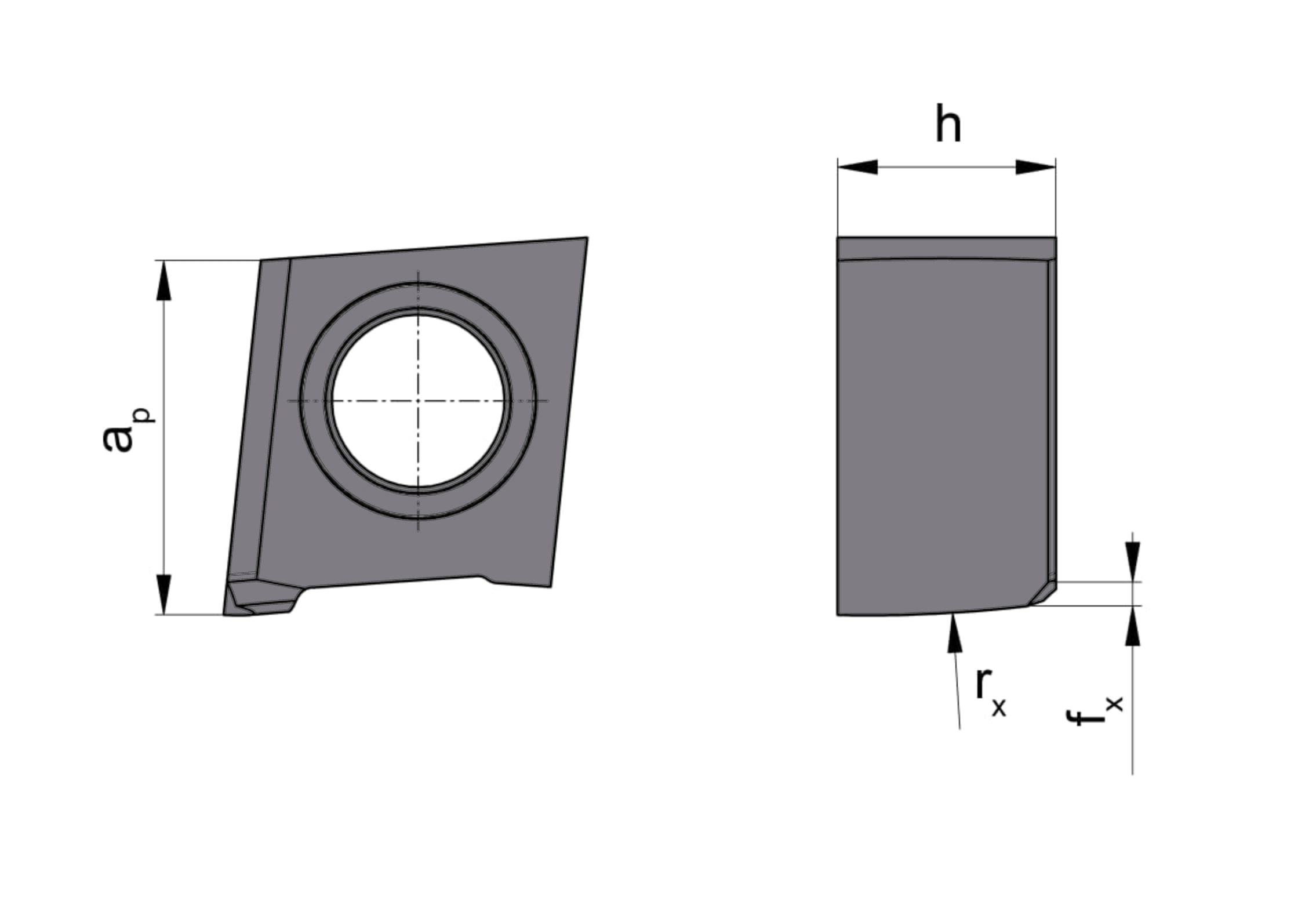

Corner radius (rx)
100
mm
Maximum stepover (ap) (ap)
9.3
mm
Cutting insert height, Cutting insert thickness (h)
5.2
mm
Corner bevel (45 ° x b) (fx)
0.4
mm
| Downloads | |
|---|---|
| R409093SF4.DXF | Download |
| R409093SF4_20230113_172849944.STP | Download |
| Download all files | |
