R845.2020.K1.IK
base support
Part number R8452020K1IK

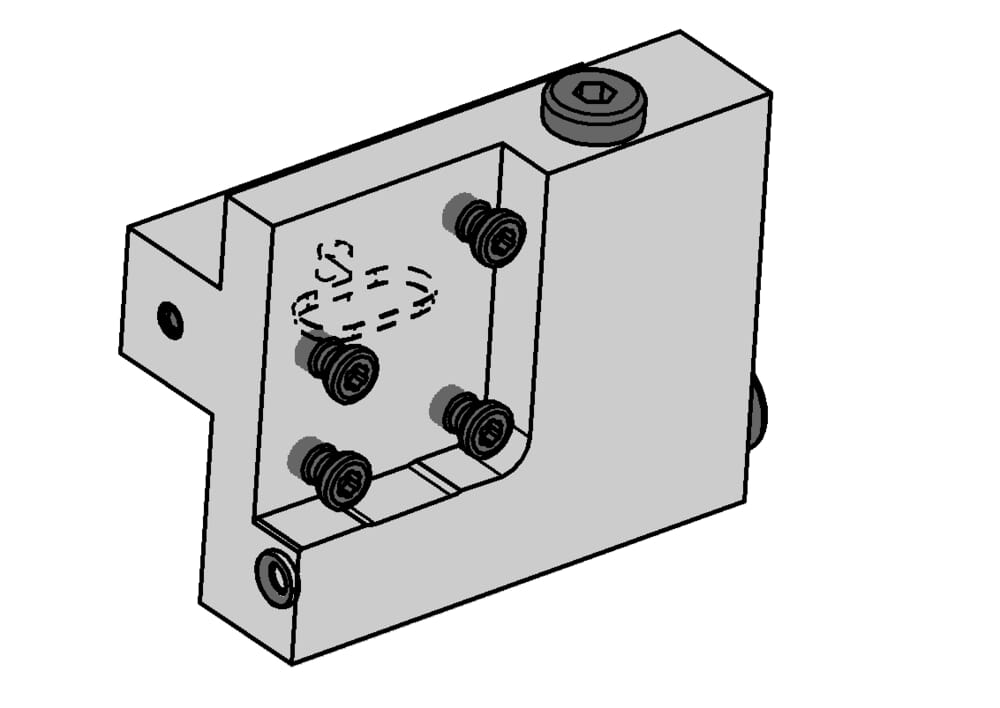

HORN base support R845.2020.K1.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-18
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
845001;845002
DIN_CCTWS
HORN-84500193;HORN-84500293
ISO_CCTWS
HORN84500193$$;HORN84500293$$
Dimension shank to locating face cassette (h1)
11.65
mm
Dimension shank to outer edge holder (h2)
30
mm
basic-holder-width-met
40
mm
basic-holder-height-met
65
mm
Cutting insert width (b2)
30
mm
Shank height (h)
20
mm
Shank width (b1)
20
mm
Length (l)
80
mm
| Downloads | |
|---|---|
| R8452020K1IK.DXF | Download |
| R8452020K1IK_20210630_181749760.STP | Download |
| Download all files | |
