R849.0226R.00.05
Part number R8490226R0005

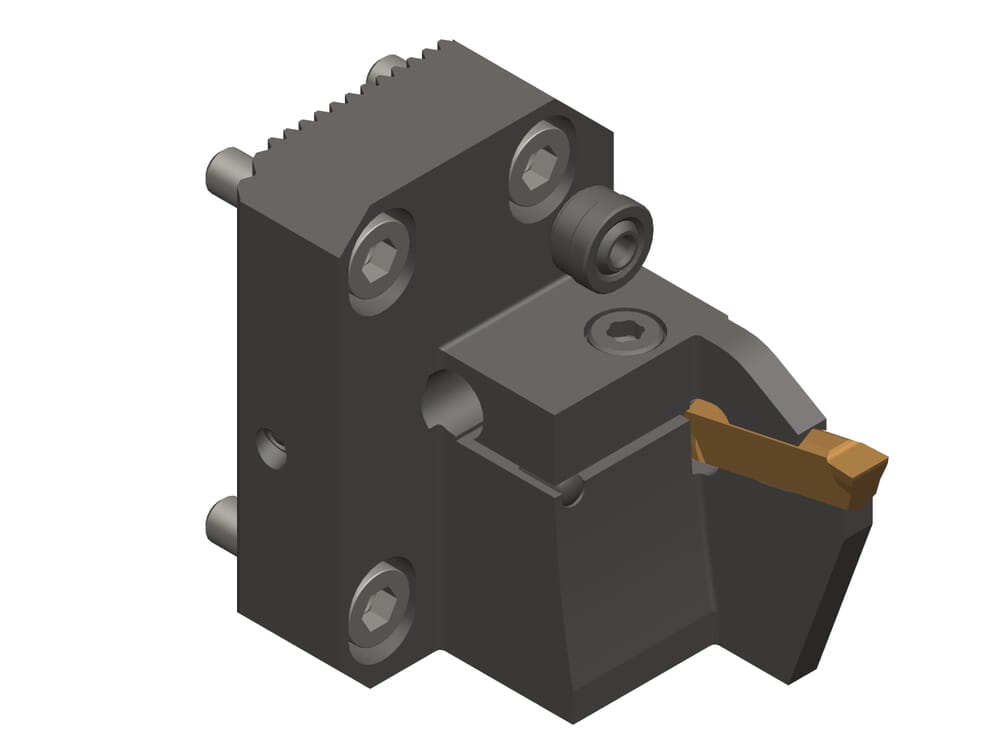

HORN R849.0226R.00.05 for Turning
Please note:Technical instructions
length-from-bore-met
61.5
mm
eclass-shortcut
21-02-90-90
Katalog_CCTMS
Schütte
Katalog_CCTWS
229050;229051
DIN_CCTWS
HORN-229050108N;HORN-229051108N
ISO_CCTWS
HORN229050108N$$$$$;HORN229051108N$$$$$
Maximum depth of groove (tmax)
25
mm
Height (h)
68
mm
Total length with cutting edge (l1)
61.5
mm
Adjustment dimension from center (f)
21.7
mm
Width (b)
45.5
mm
| Downloads | |
|---|---|
| R849_0226R.DXF | Download |
| R849_0226R_00_05.STP | Download |
