R849.0226R.00.07
Part number R8490226R0007

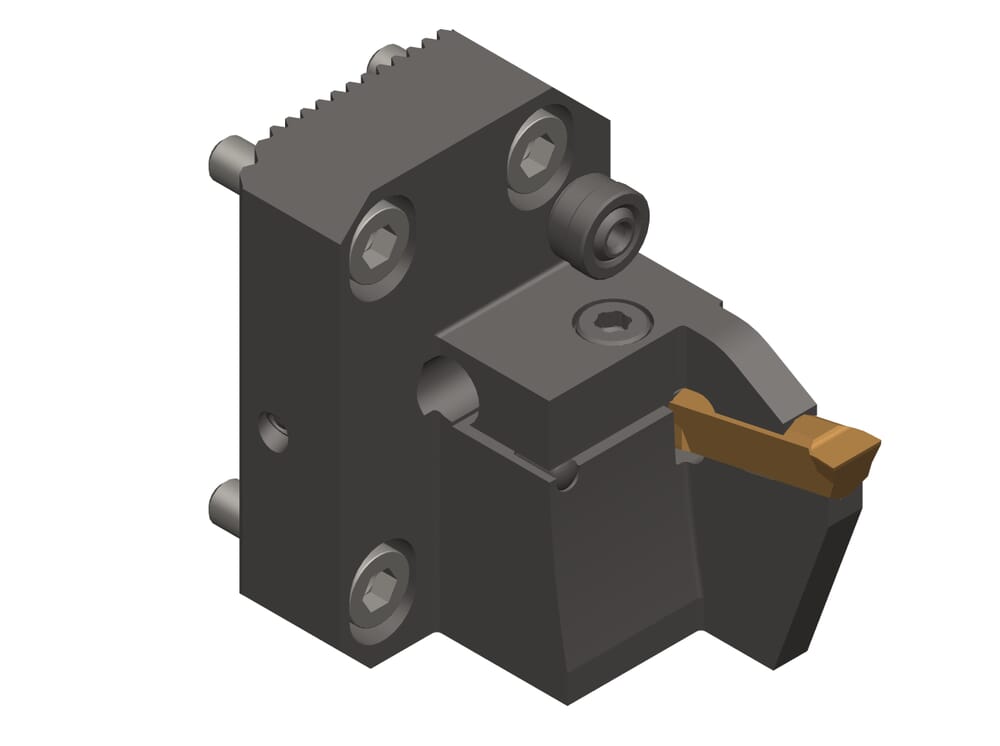

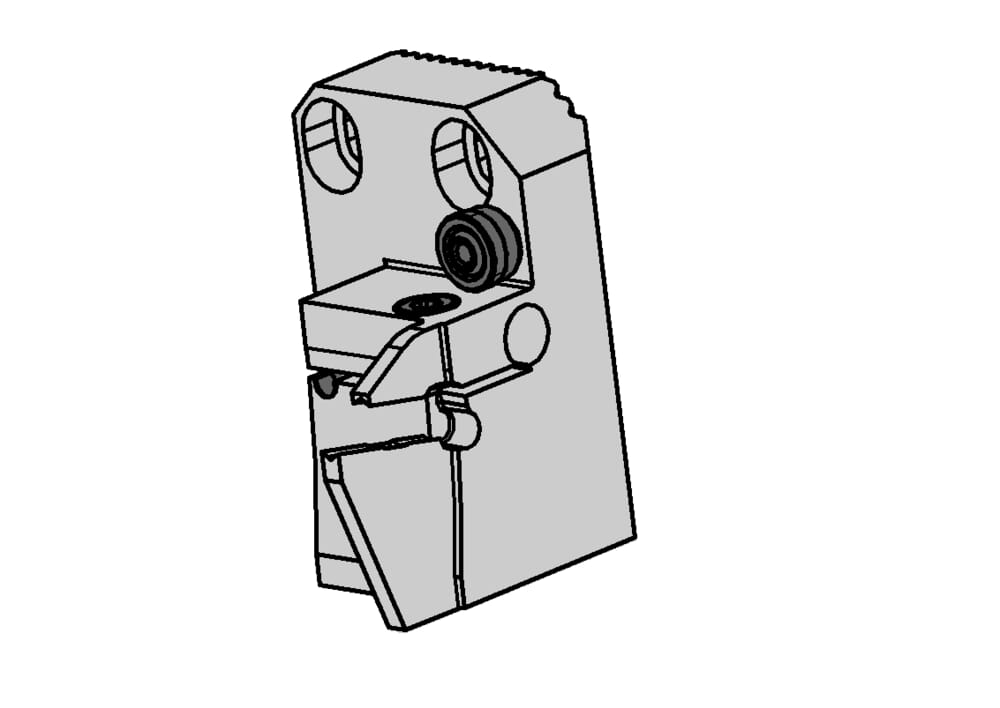

HORN R849.0226R.00.07 for Turning
Please note:Technical instructions
length-from-bore-met
61.5
mm
eclass-shortcut
21-02-90-90
Katalog_CCTMS
Schütte
Katalog_CCTWS
229070;229071
DIN_CCTWS
HORN-229070108N;HORN-229071108N
ISO_CCTWS
HORN229070108N$$$$$;HORN229071108N$$$$$

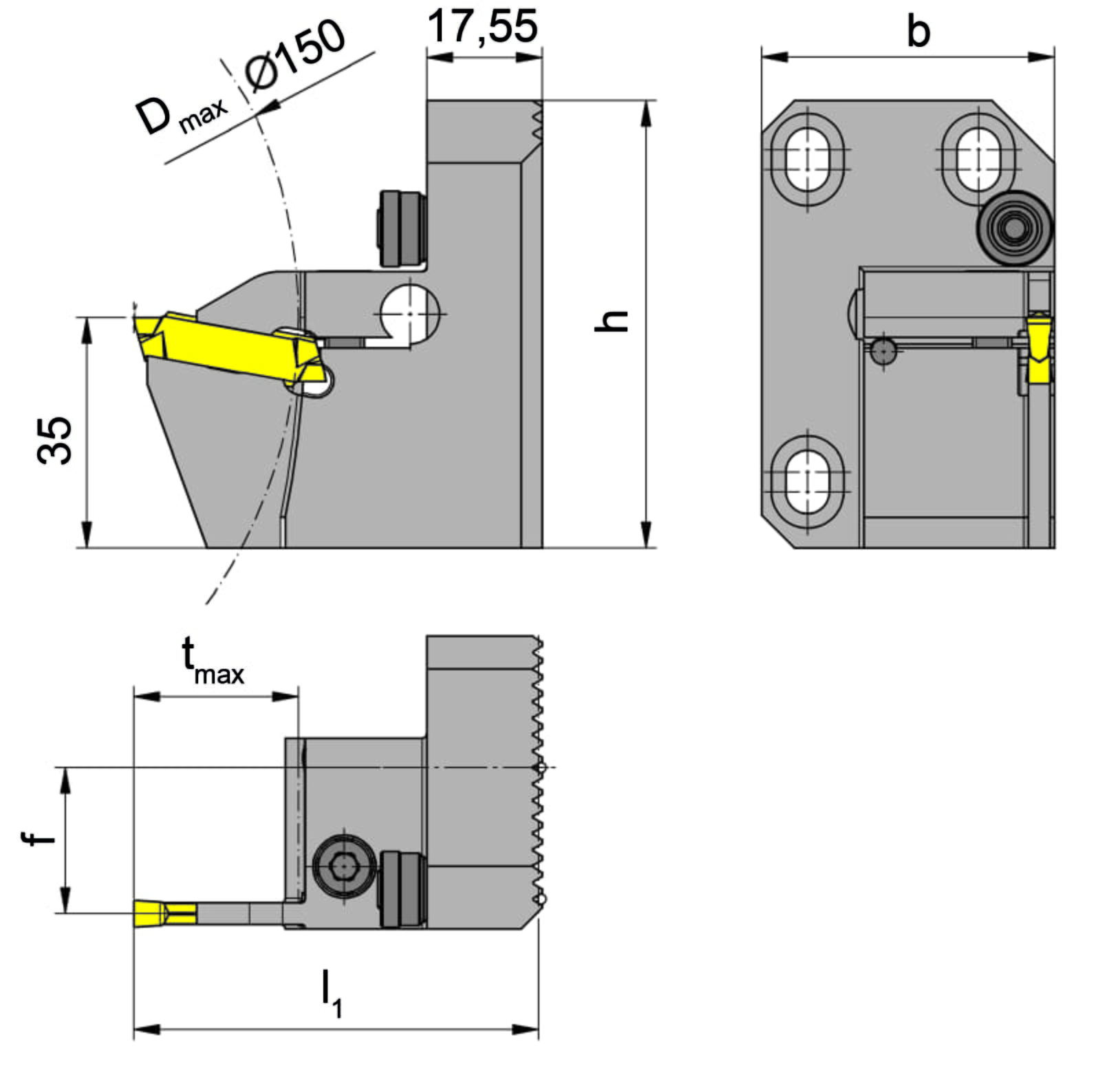

Maximum depth of groove (tmax)
25
mm
Height (h)
68
mm
Total length with cutting edge (l1)
61.5
mm
Adjustment dimension from center (f)
20.7
mm
Width (b)
45.5
mm
