R849.SCLCR.09.00
Part number R849SCLCR0900

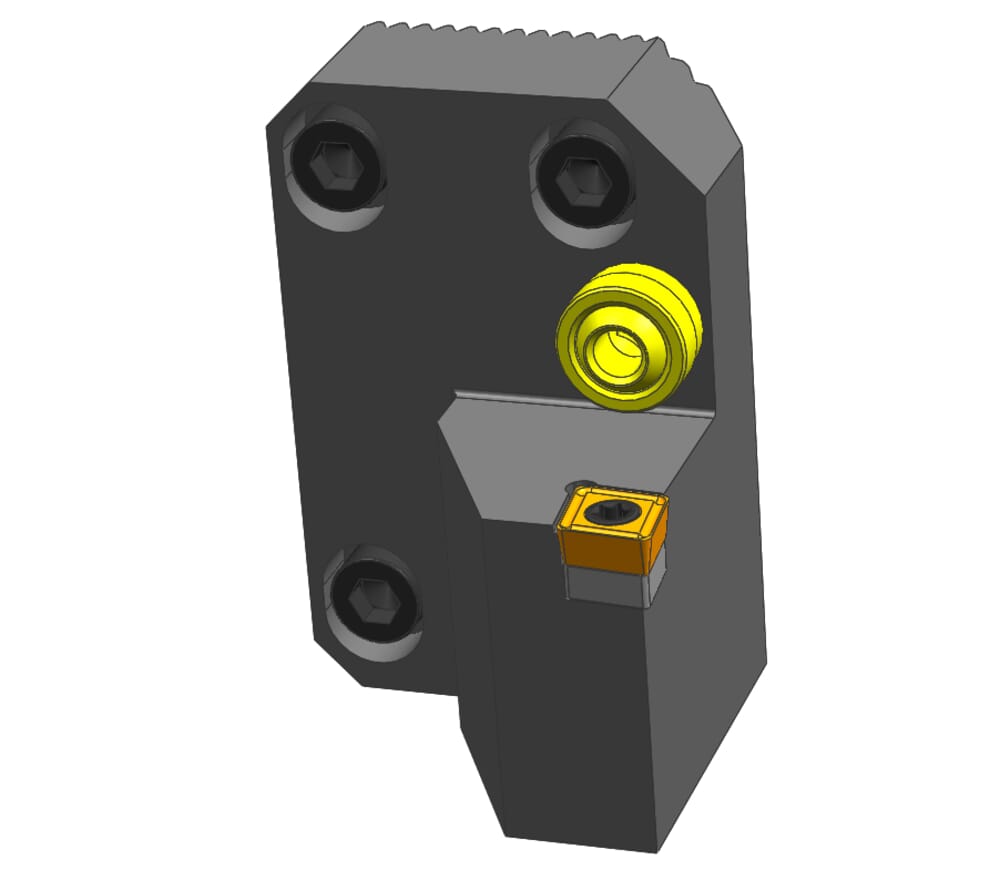

HORN R849.SCLCR.09.00 for Turning
Please note:Technical instructions
Width (b)
45.5
mm
Flange thickness (l1)
17
mm
Adjustment dimension from center (f)
27
mm
Total length with cutting edge (l)
45
mm
Height (h)
68
mm
ISO_CCTWS
ISO$CC09T3013NB$$01;ISO$CC09T3023NB$$02;ISO$CC09T3043NB$$04;ISO$CC09T3083NB$$08;ISO$CC09T3123NB$$12
DIN_CCTWS
CC09T3013N;CC09T3023N;CC09T3043N;CC09T3083N;CC09T3123N
Katalog_CCTMS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| R849_SCLCR_09_00.STP | Download |
| Download all files | |
