R849.SDJCR.11.00
Part number R849SDJCR1100

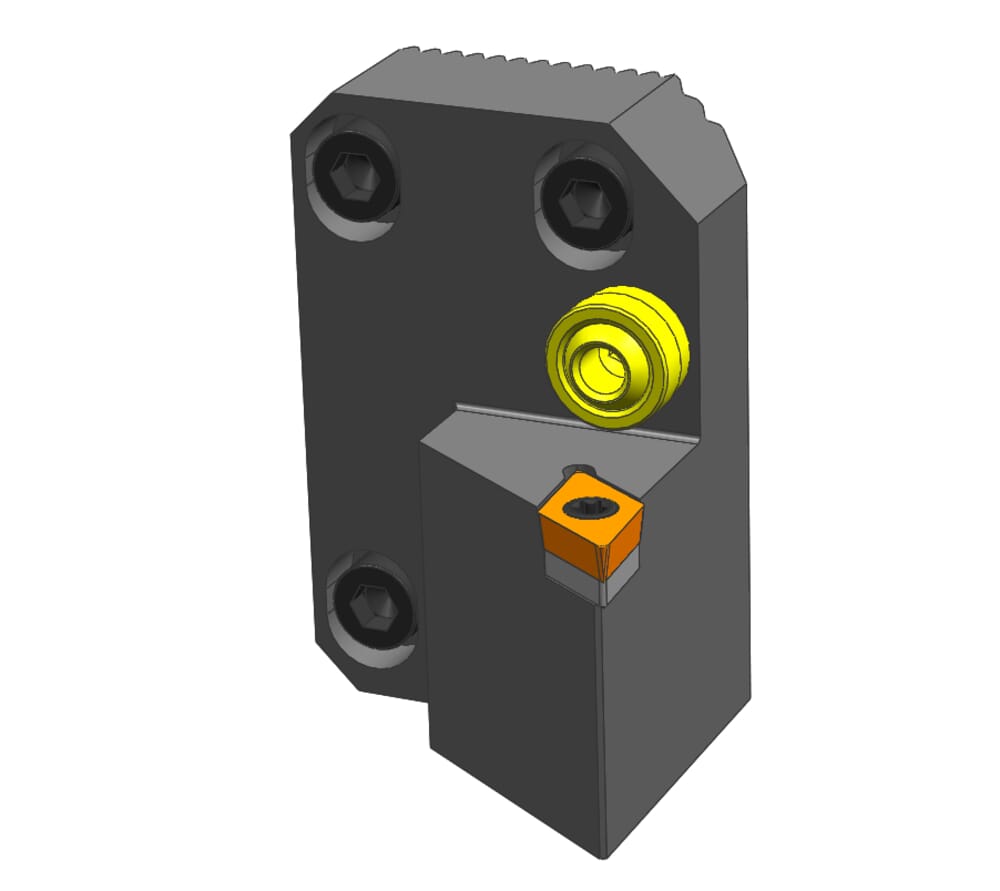

HORN R849.SDJCR.11.00 for Turning
Please note:Technical instructions
Width (b)
46.7
mm
Flange thickness (l1)
17
mm
Adjustment dimension from center (f)
27
mm
Total length with cutting edge (l)
45
mm
Height (h)
68
mm
ISO_CCTWS
ISO$DC11T3013NB$$01;ISO$DC11T3023NB$$02;ISO$DC11T3043NB$$04;ISO$DC11T3083NB$$08;ISO$DC11T3123NB$$12
DIN_CCTWS
DC11T3013N;DC11T3023N;DC11T3043N;DC11T3083N;DC11T3123N
Katalog_CCTMS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| R849_SDJCR_11_00.STP | Download |
| Download all files | |
