R849.SVJBR.16.00
Part number R849SVJBR1600

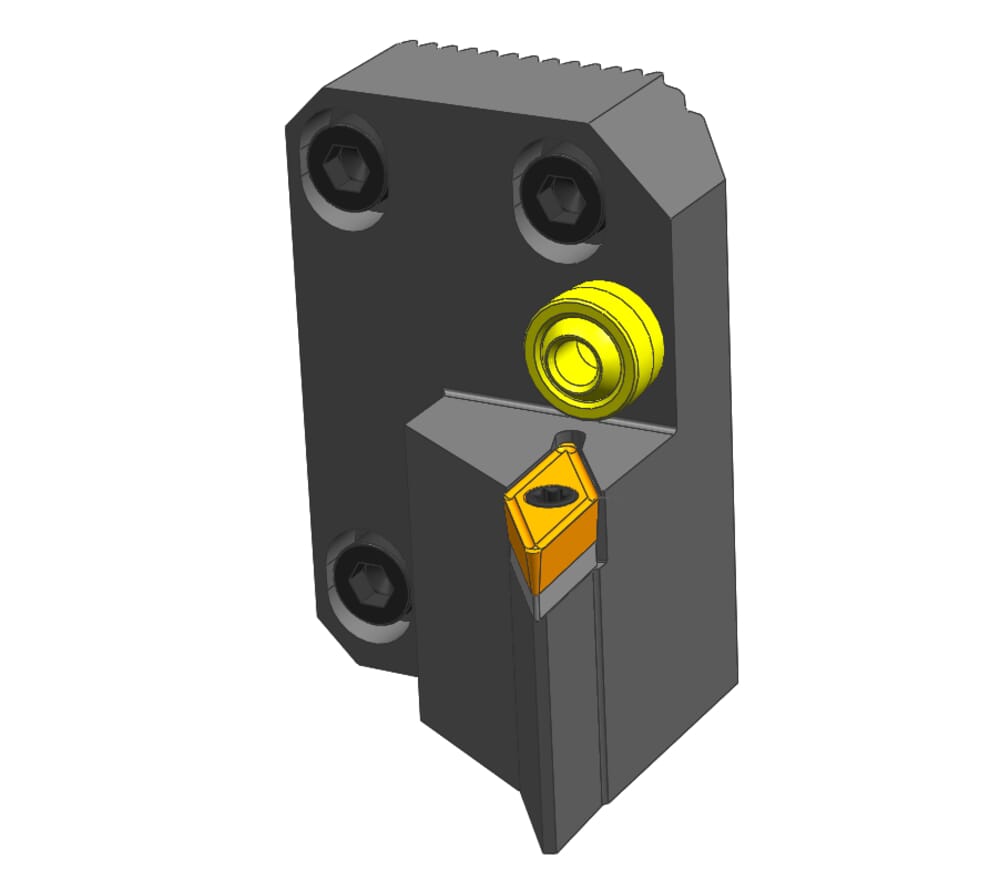

HORN R849.SVJBR.16.00 for Turning
Please note:Technical instructions
Width (b)
46.2
mm
Flange thickness (l1)
17
mm
Adjustment dimension from center (f)
27
mm
Total length with cutting edge (l)
50
mm
Height (h)
68
mm
ISO_CCTWS
ISO$VB1102023NB$$02;ISO$VB1102043NB$$04;ISO$VB1102083NB$$08
DIN_CCTWS
VB1102023N;VB1102043N;VB1102083N
Katalog_CCTMS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| R849_SVJBR_16_00.STP | Download |
| Download all files | |
