R850.0315.01.10.IK
Toolholder
Part number R85003150110IK

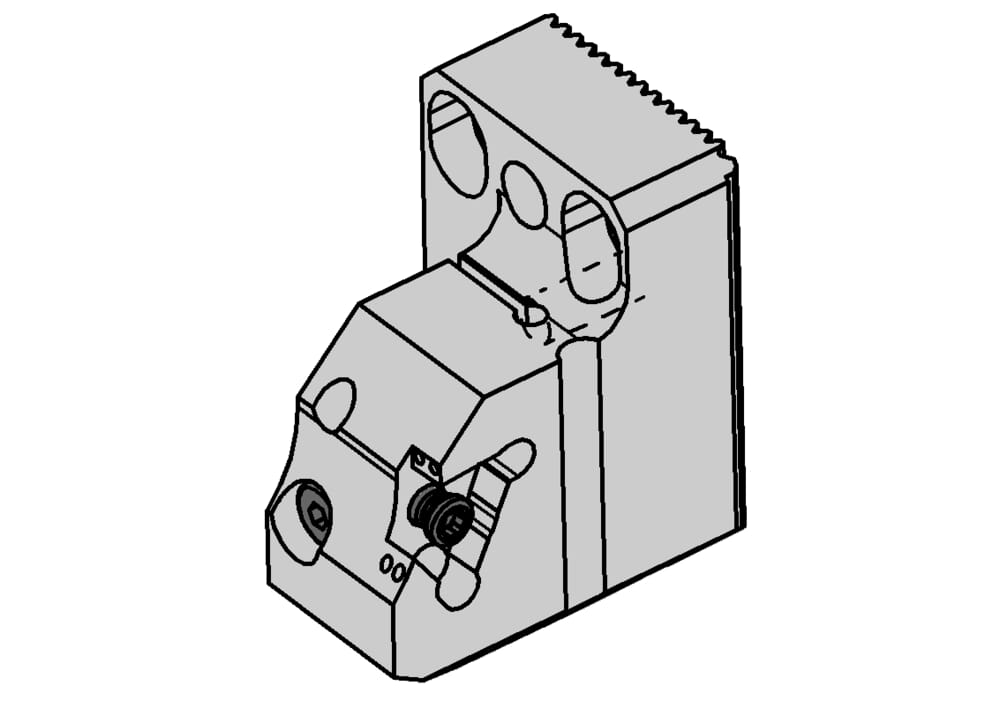

HORN Toolholder R850.0315.01.10.IK for Turning
Please note:Technical instructions

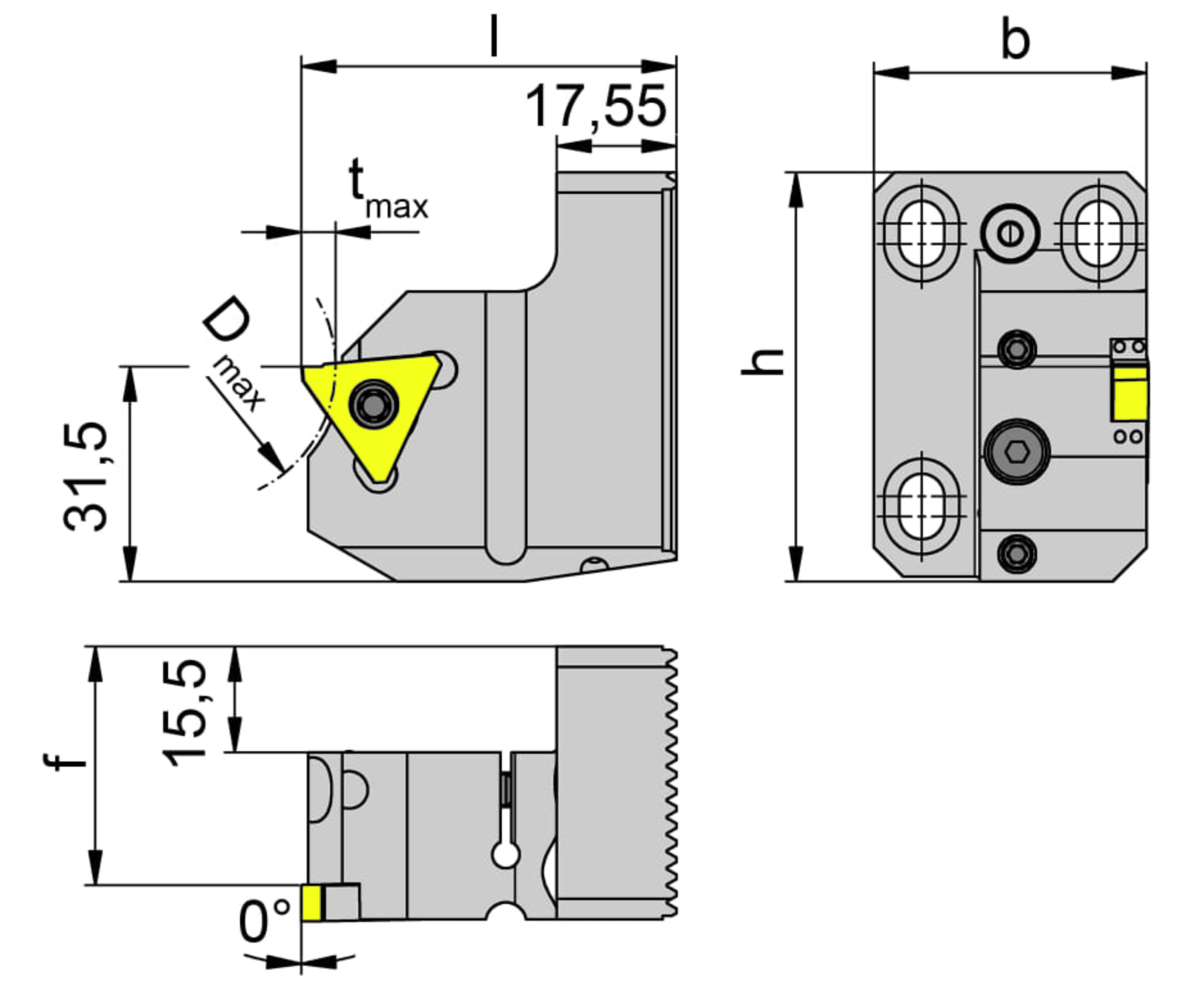

Width (b)
40
mm
Total length (including cutting insert) (l)
55
mm
Height (h)
60
mm
Maximum depth of groove (tmax)
5
mm
Maximum workpiece diameter (Dmax)
40
mm
Adjustment dimension locating face insert (f)
29.9
mm
ISO_CCTWS
HORN31510$051R$$$$$
DIN_CCTWS
HORN-31510051R
Katalog_CCTWS
31510R
Katalog_CCTMS
Schütte
| Downloads | |
|---|---|
| R85003150110IK.STP | Download |
| Download all files | |
