R969.00C4.01

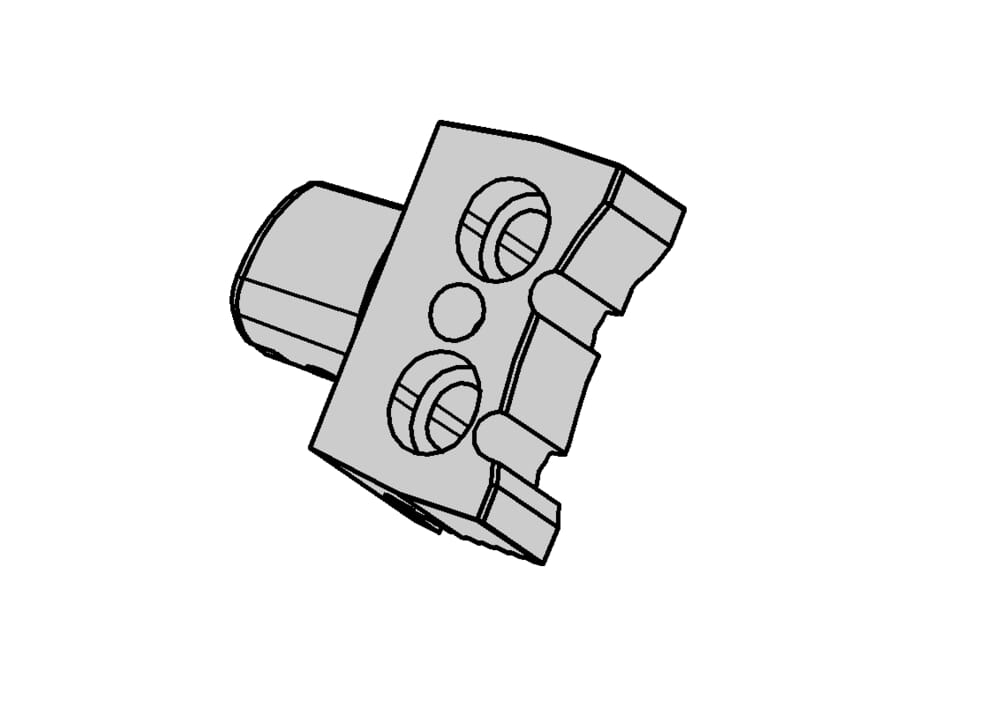

Basic holder Capto 4 right
Part number R96900C401
HORN Basic holder Capto 4 right R969.00C4.01 for Turning
Please note:Technical instructions

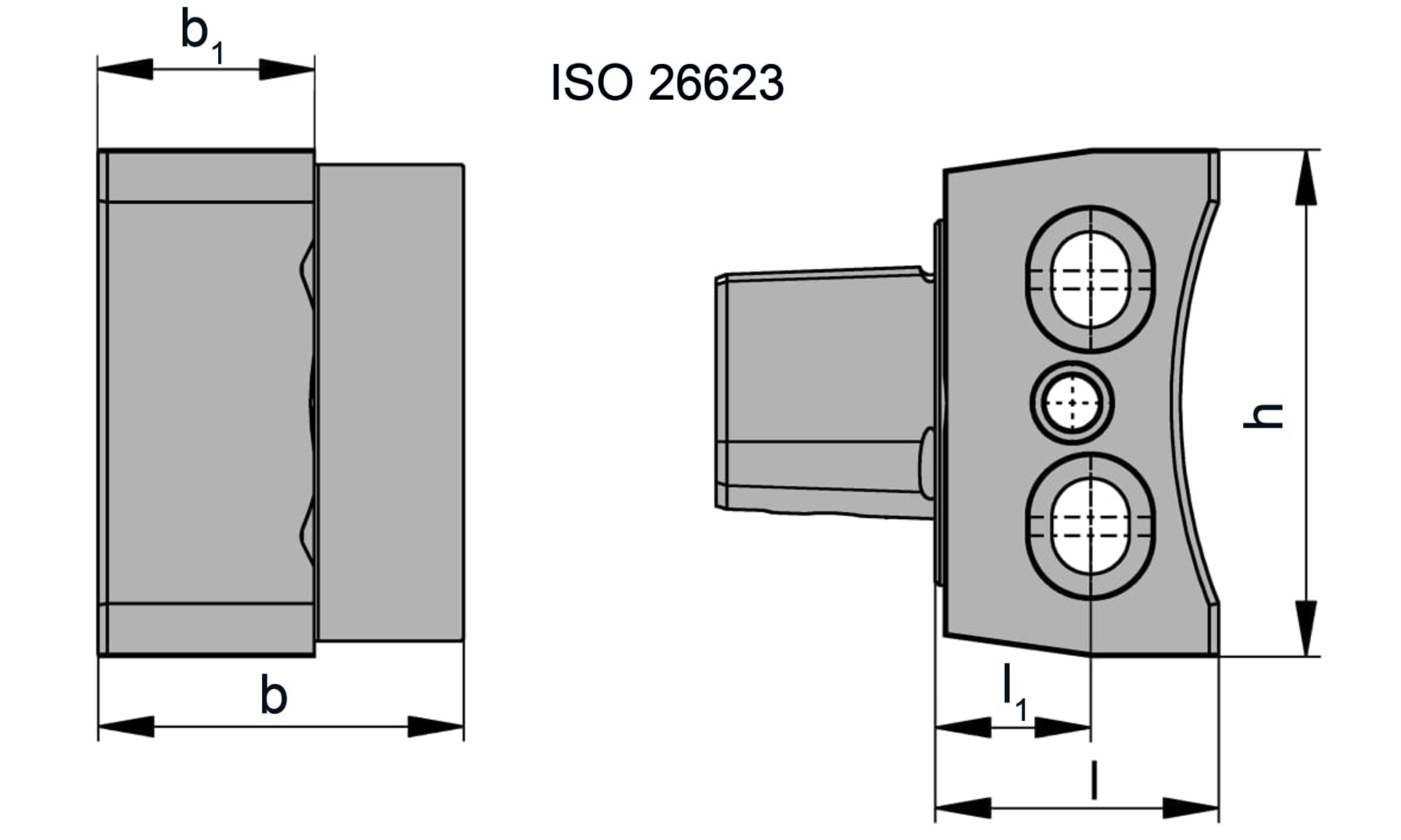

Flange thickness (l)
31
mm
Cutting insert width (b1)
1000
mm
basic-holder-height-met
55.5
mm
basic-holder-width-met
40
mm
Distance system cassette to mounting hole (l1)
17
mm
Katalog_CCTWS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| R96900C401.DXF | Download |
| R96900C401_20210630_165722985.STP | Download |
| Download all files | |
