R.969.A.24.1616.0055.IK

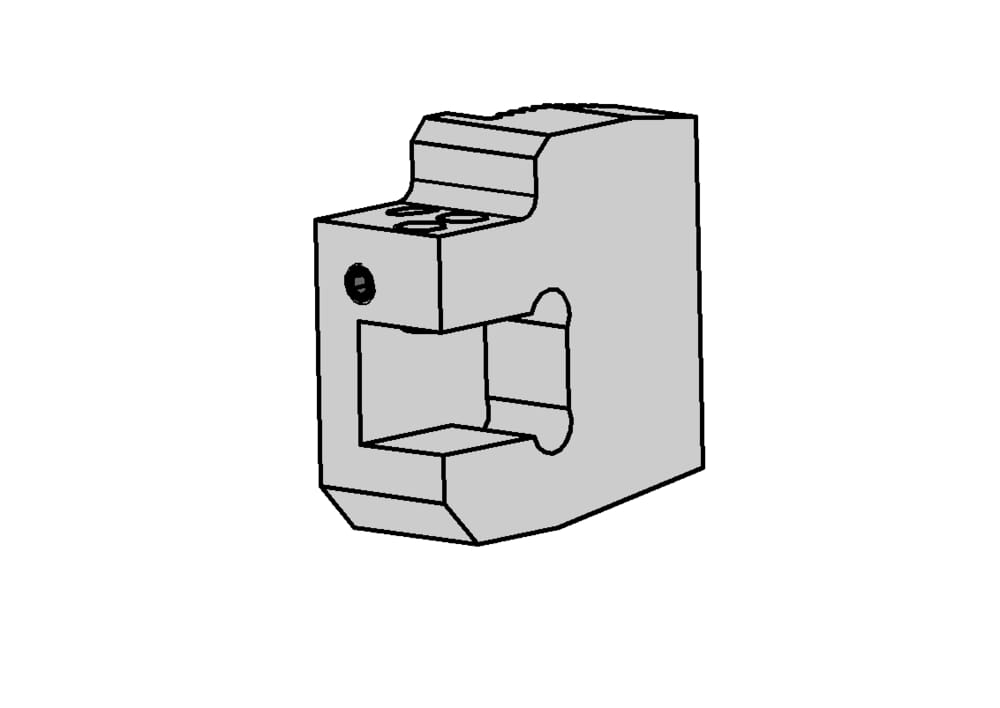

Holing piece for holder 16x16
Part number R969A2416160055IK
HORN Holing piece for holder 16x16 R.969.A.24.1616.0055.IK for Turning
Please note:Technical instructions
basic-holder-height-met
57.5
mm
basic-holder-width-met
24
mm

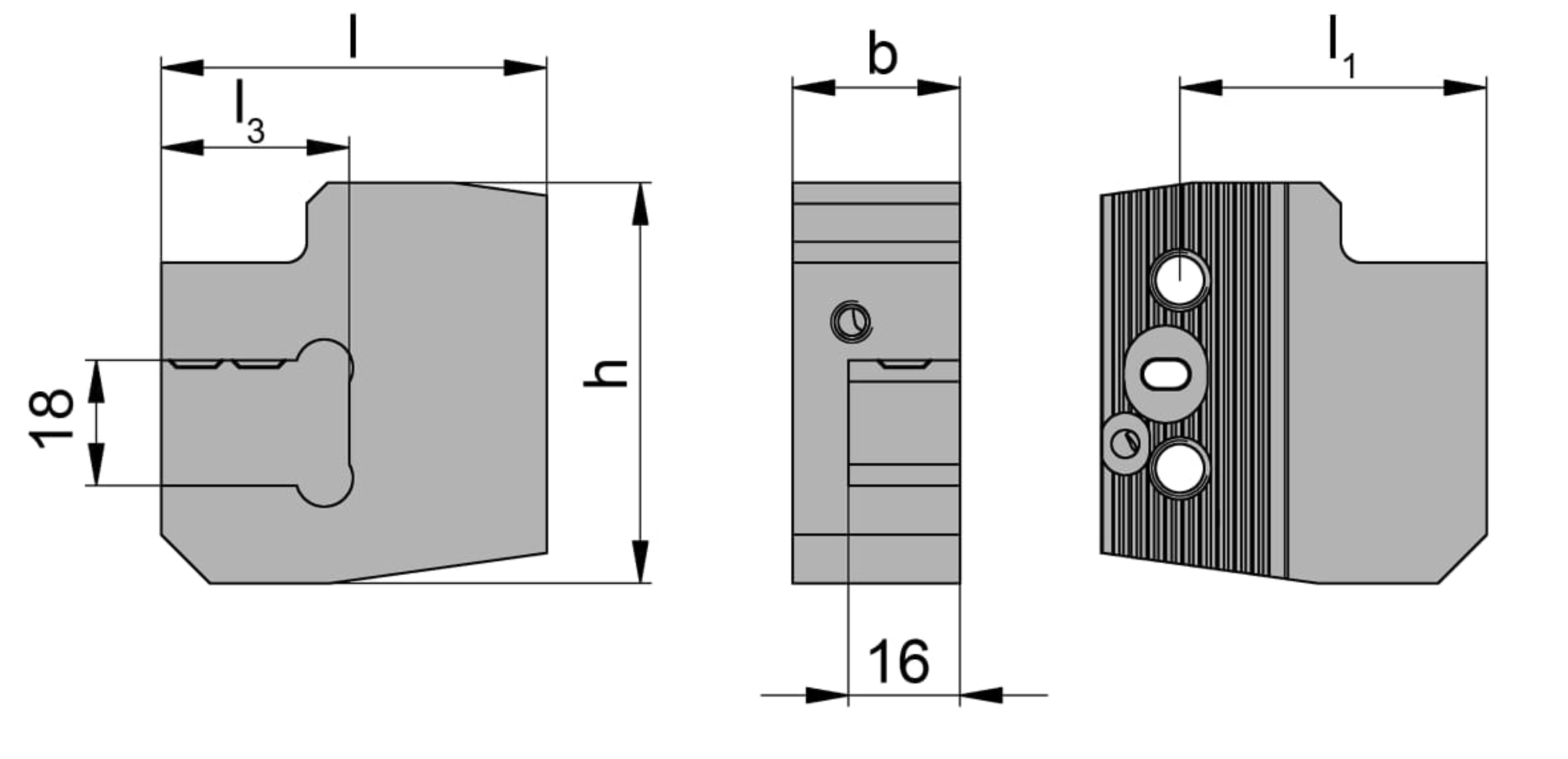

Distance system cassette to mounting hole (l1)
44
mm
Dimension to outer edge grooving holder (l3)
27
mm
Katalog_CCTMS
Schütte
Total length (l)
55.3
mm
eclass-shortcut
21-02-90-90
