R990.X845.8698.L.IK

Toolholder

Part number R990X8458698LIK

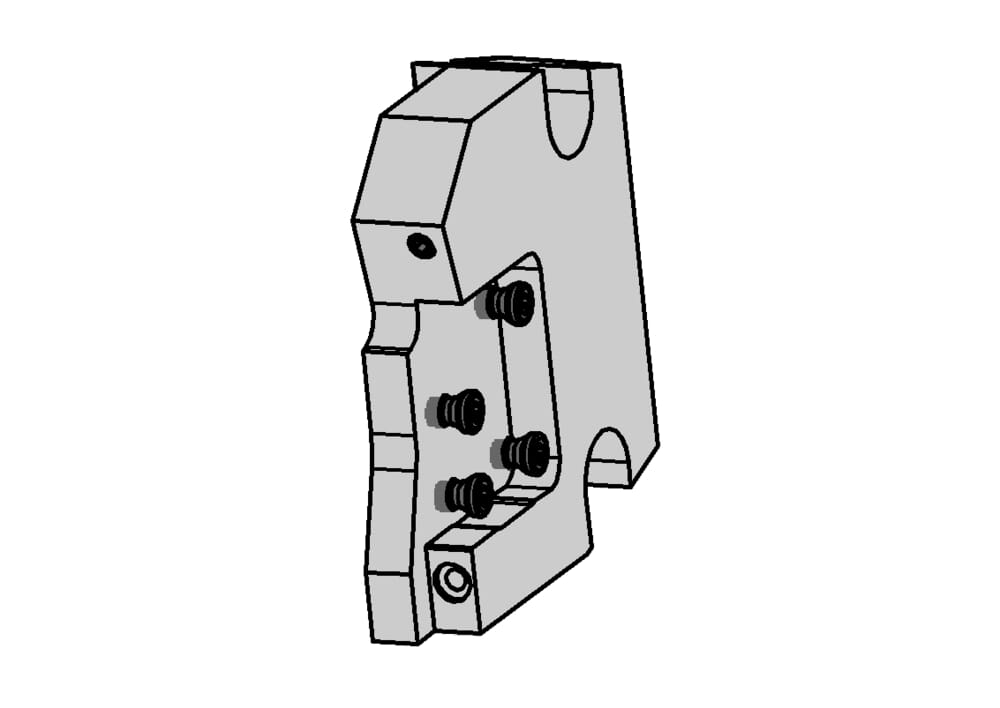

HORN Toolholder R990.X845.8698.L.IK for Turning

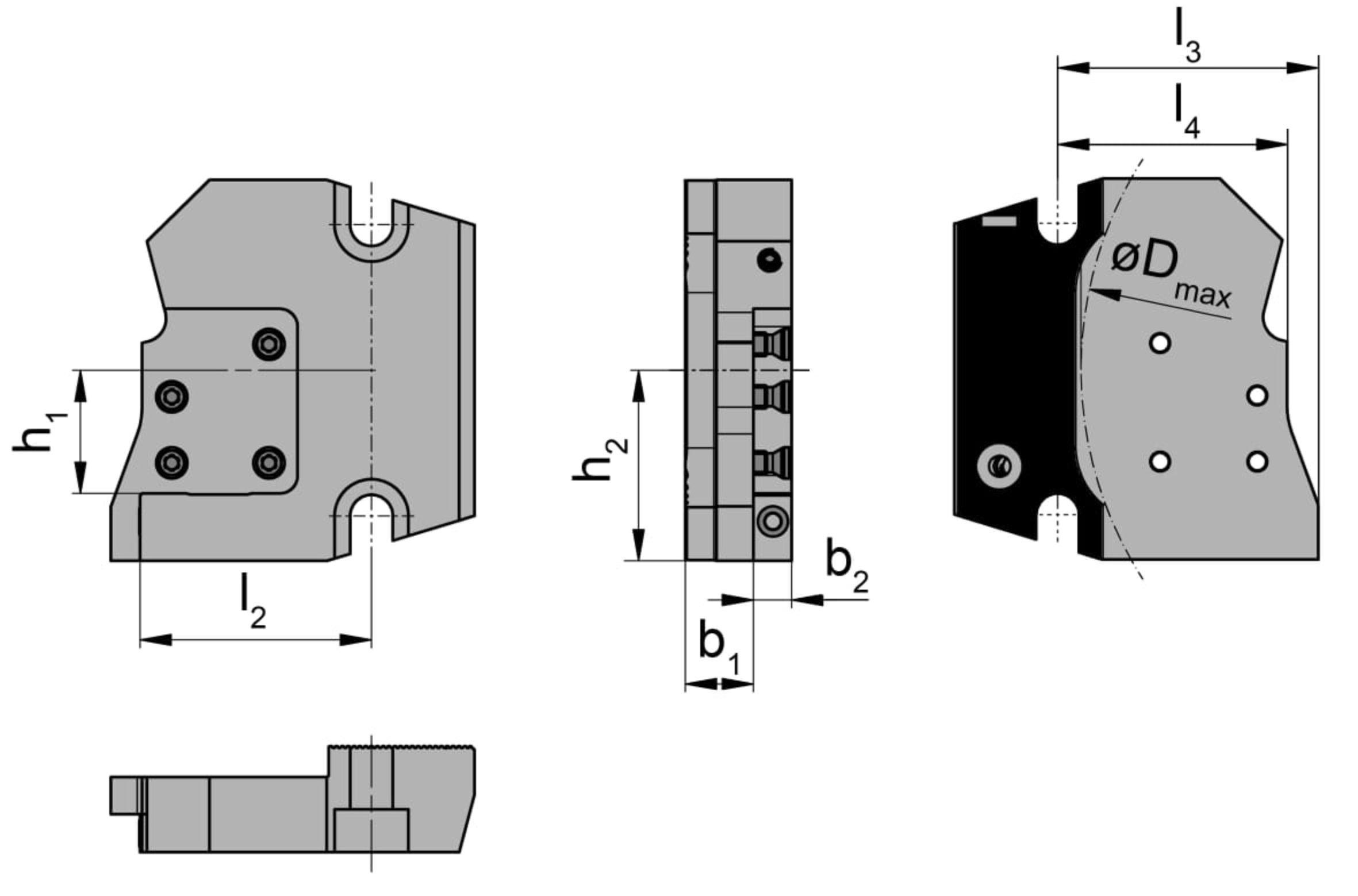

Dimension locating face to radius basic holder (l4)

59 mm

eclass-shortcut

21-02-90-90

Katalog_CCTMS

Index Traub

Katalog_CCTWS

845001;845002

DIN_CCTWS

HORN-84500193;HORN-84500293

ISO_CCTWS

HORN84500193$$;HORN84500293$$

Dimension center to outer edge holder (h2)

49 mm

Dimension to outer edge grooving holder (l3)

67 mm

System grooving holder to system cassette (b1)

15 mm

System cassette outer edge to grooving holder (b2)

9.8 mm

Cutting insert width (l2)

59.5 mm

Maximum workpiece diameter (Dmax)

200 mm

Cassette system from the middle (h1)

31.65 mm

Downloads
R990X8458698LIK.STP	Download
Download all files
