R991.X842.73102.L.IK

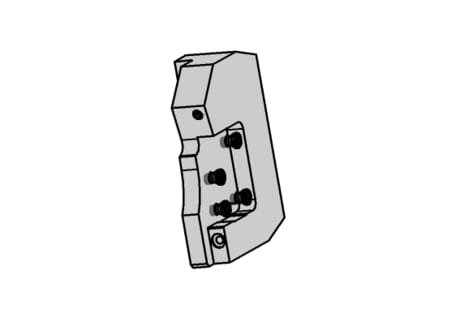

Piercing retainer piece

Part number R991X84273102LIK

HORN Piercing retainer piece R991.X842.73102.L.IK for Turning

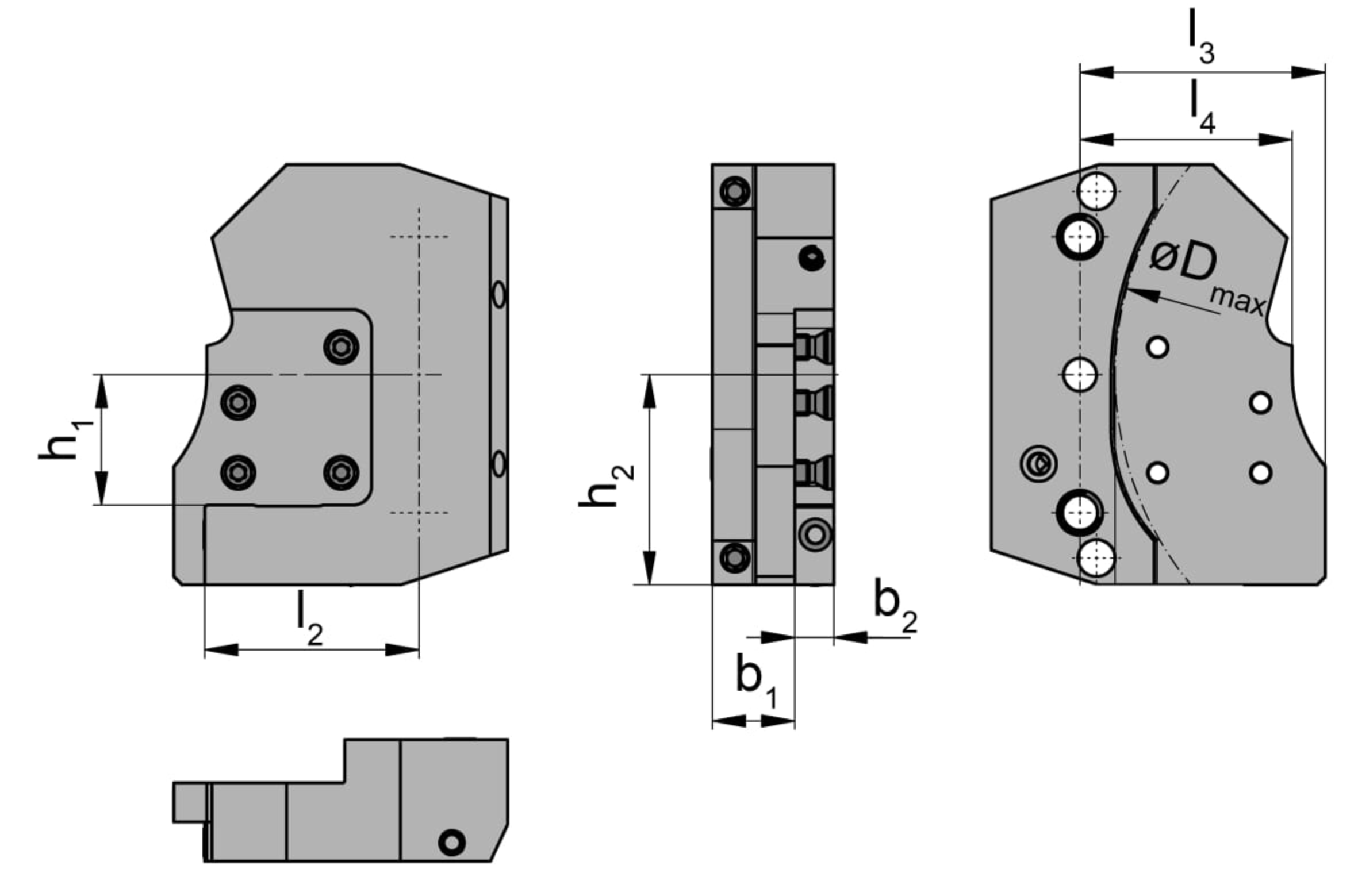

Dimension locating face to radius basic holder (l4)

49.5 mm

eclass-shortcut

21-02-90-90

Katalog_CCTMS

Index Traub

Katalog_CCTWS

842001;842002

DIN_CCTWS

HORN-84200193;HORN-84200293

ISO_CCTWS

HORN84200193$$;HORN84200293$$

Dimension center to outer edge holder (h2)

51 mm

Dimension to outer edge grooving holder (l3)

57.5 mm

System grooving holder to system cassette (b1)

20 mm

System cassette outer edge to grooving holder (b2)

9.8 mm

Cutting insert width (l2)

50 mm

Maximum workpiece diameter (Dmax)

160 mm

Cassette system from the middle (h1)

21 mm
