RAH25A.20.2530.03
tool holder
Part number RAH25A20253003

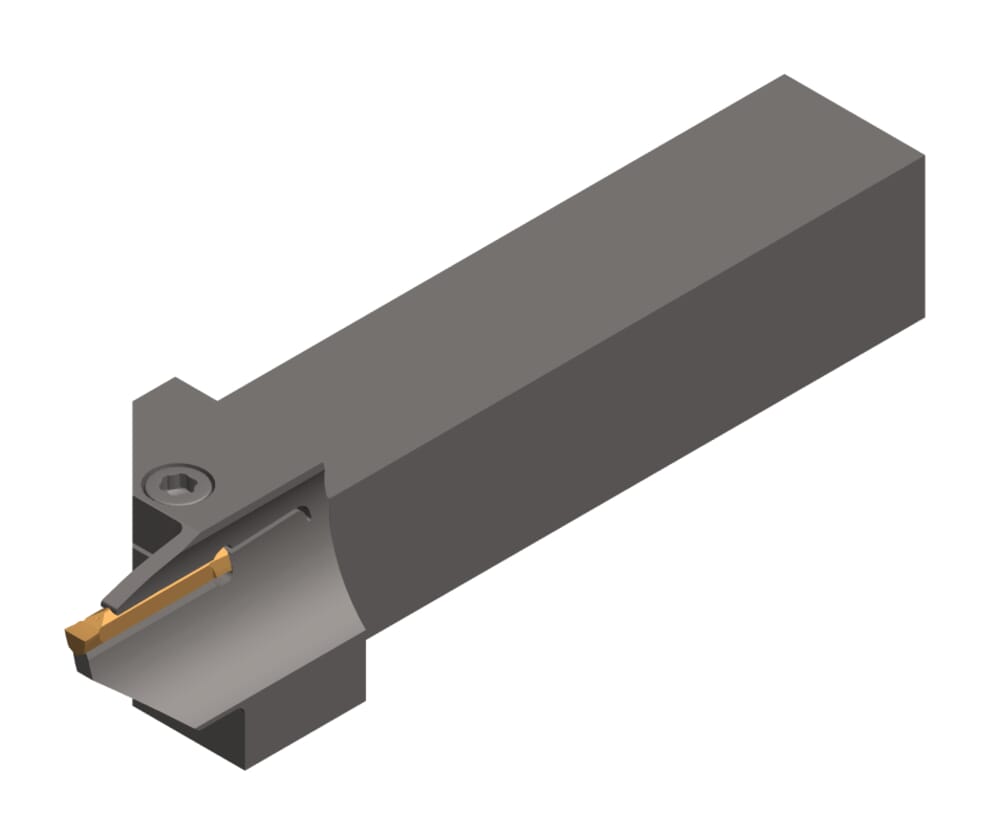

HORN tool holder RAH25A.20.2530.03 for Turning
Please note:Technical instructions
Maximum insertion depth (tmax)
15
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200105
Katalog_CCTWS
25A03
DIN_CCTWS
HORN-25A030008N
ISO_CCTWS
HORN25A030008N$$$$$
Head length top (including cutting edge) (l2)
35
mm
Peak height (h1)
20.3
mm
Minimum starting outside diameter (Da min)
25
mm
Maximum starting outside diameter (Da max)
30
mm
Head height (h3)
6
mm
Head width (b3)
27.5
mm
Shank height (h)
20
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
120
mm
Adjustment dimension cutting center (f2)
19
mm
Adjustment dimension (f3)
20.5
mm
Shank width (b)
20
mm
