RB224.0032.2.K2.IK
base support
Part number RB22400322K2IK

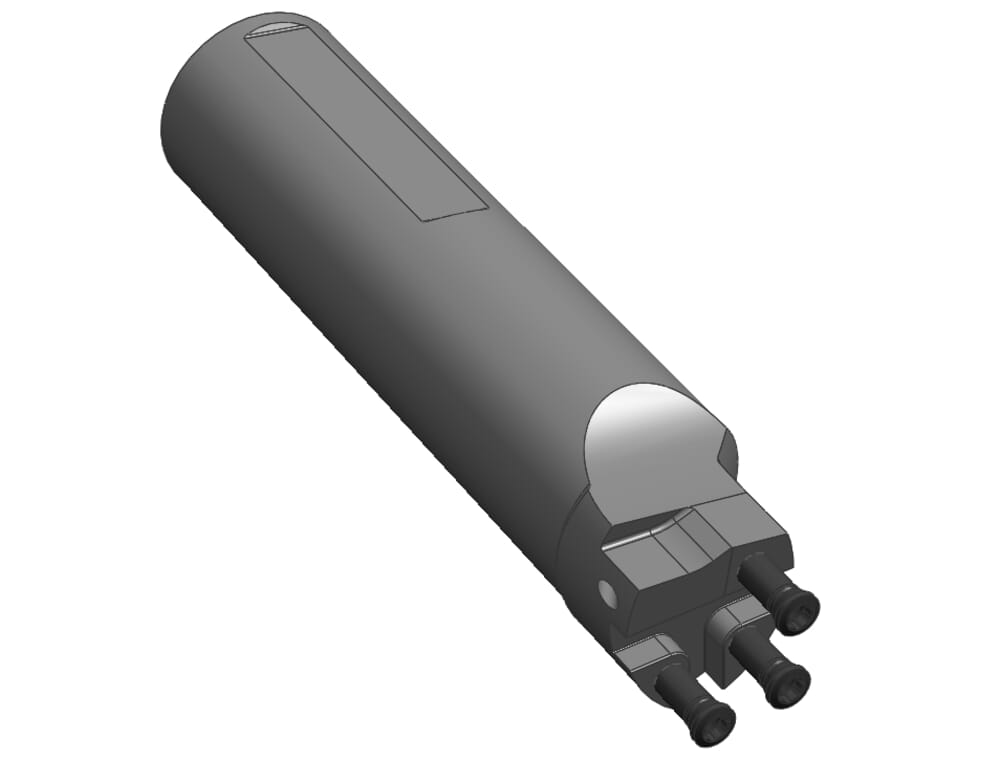

HORN base support RB224.0032.2.K2.IK for Turning
Please note:Technical instructions
Length overall formula (l1)
l+b1+w/2
eclass-shortcut
21-18-10-90
ISO_CCTMS
ZYL23G3200$$$$
DIN_CCTMS
ZYL03202315
Katalog_CCTWS
BK2241
DIN_CCTWS
HORN-BK224193;HORN-BK224183
ISO_CCTWS
HORNBK224193$$;HORNBK224183$$
Shank, clamping diameter (d)
32
mm
Working length, Extension length (l2)
60
mm
Total length (without cutting insert) (l)
166.3
mm
Adjustment dimension from center (f)
28
mm
Distance of clamping surface (s) (h)
30
mm
