RB224.00C6.2.K2
Toolholders
Part number RB22400C62K2

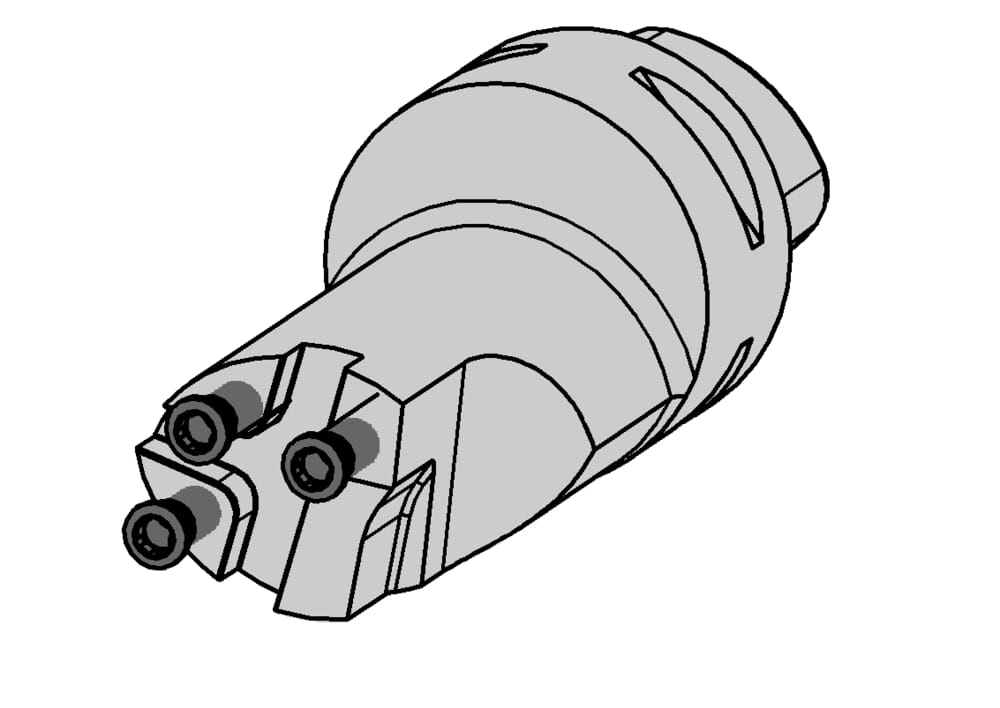

HORN Toolholders RB224.00C6.2.K2 for Turning
Please note:Technical instructions

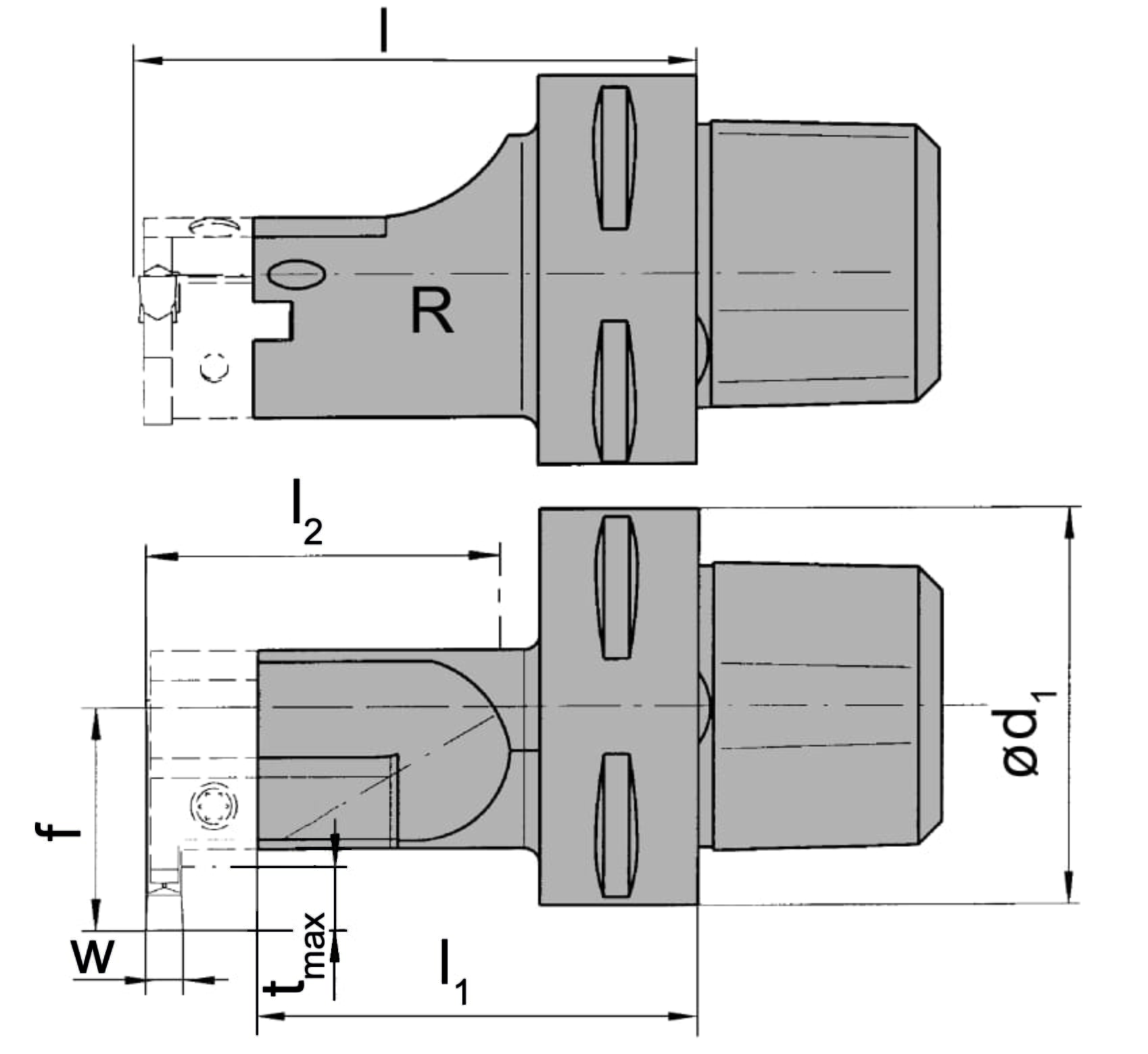

Length assembly formula (l)
l1+b1+w/2
eclass-shortcut
21-18-10-18
ISO_CCTMS
CCS01C0630$$$$
DIN_CCTMS
CCS06300185
Katalog_CCTWS
BK2241
DIN_CCTWS
HORN-BK224183
ISO_CCTWS
HORNBK224183$$
Length assembly (l2)
78
mm
Length from bore (l1)
89.3
mm
Adjustment dimension (f)
32
mm
Bore diameter rotate (d1)
63
mm
| Downloads | |
|---|---|
| RB22400C62K2.DXF | Download |
| RB224_00C6_2_K2_20171122_000529166.STP | Download |
| Download all files | |
