RB229.0040.3.K2.IK

Toolholder

INNEN_EINSTECHEN.EPS

INNEN_BOHRUNG_KONTUR_AUSDREHEN.EPS

IK_GENERELL.EPS

Part number RB22900403K2IK

HORN Toolholder RB229.0040.3.K2.IK for Turning

Please note:Technical instructions

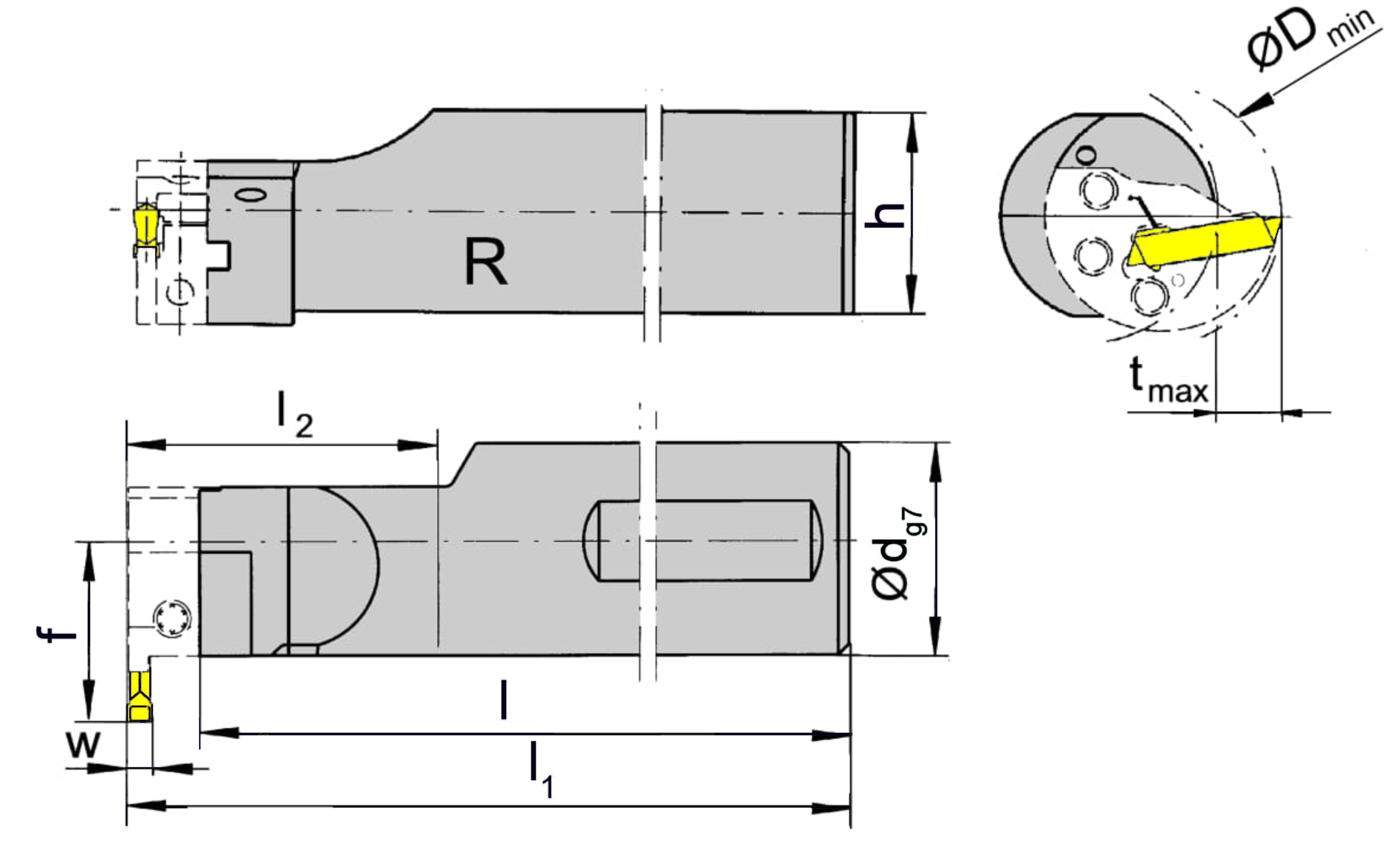

Distance of clamping surface (s) (h)

38 mm

Adjustment dimension from center (f)

35.5 mm

Total length (without cutting insert) (l)

215.5 mm

Working length, Extension length (l2)

90 mm

Shank, clamping diameter (d)

40 mm

ISO_CCTWS

HORNBK229293$$;HORNBK229283$$

DIN_CCTWS

HORN-BK229293;HORN-BK229283

Katalog_CCTWS

BK2291

DIN_CCTMS

ZYL04002315

ISO_CCTMS

ZYL23G4000$$$$
