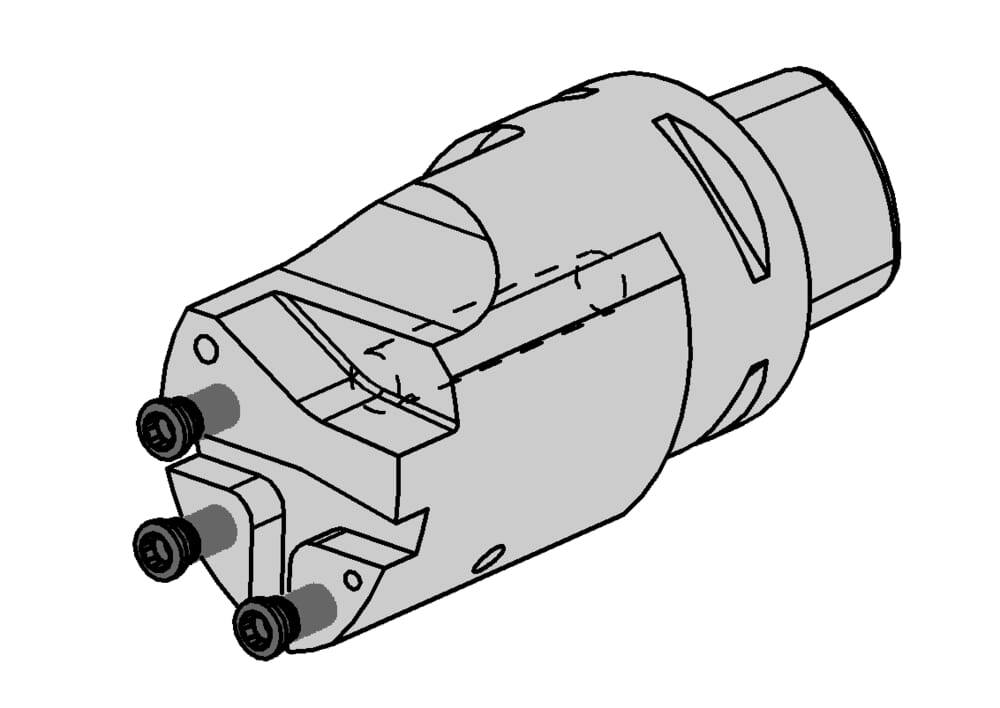

RB229.00C5.1.K2.IK
base support
Part number RB22900C51K2IK
HORN base support RB229.00C5.1.K2.IK for Turning
Please note:Technical instructions

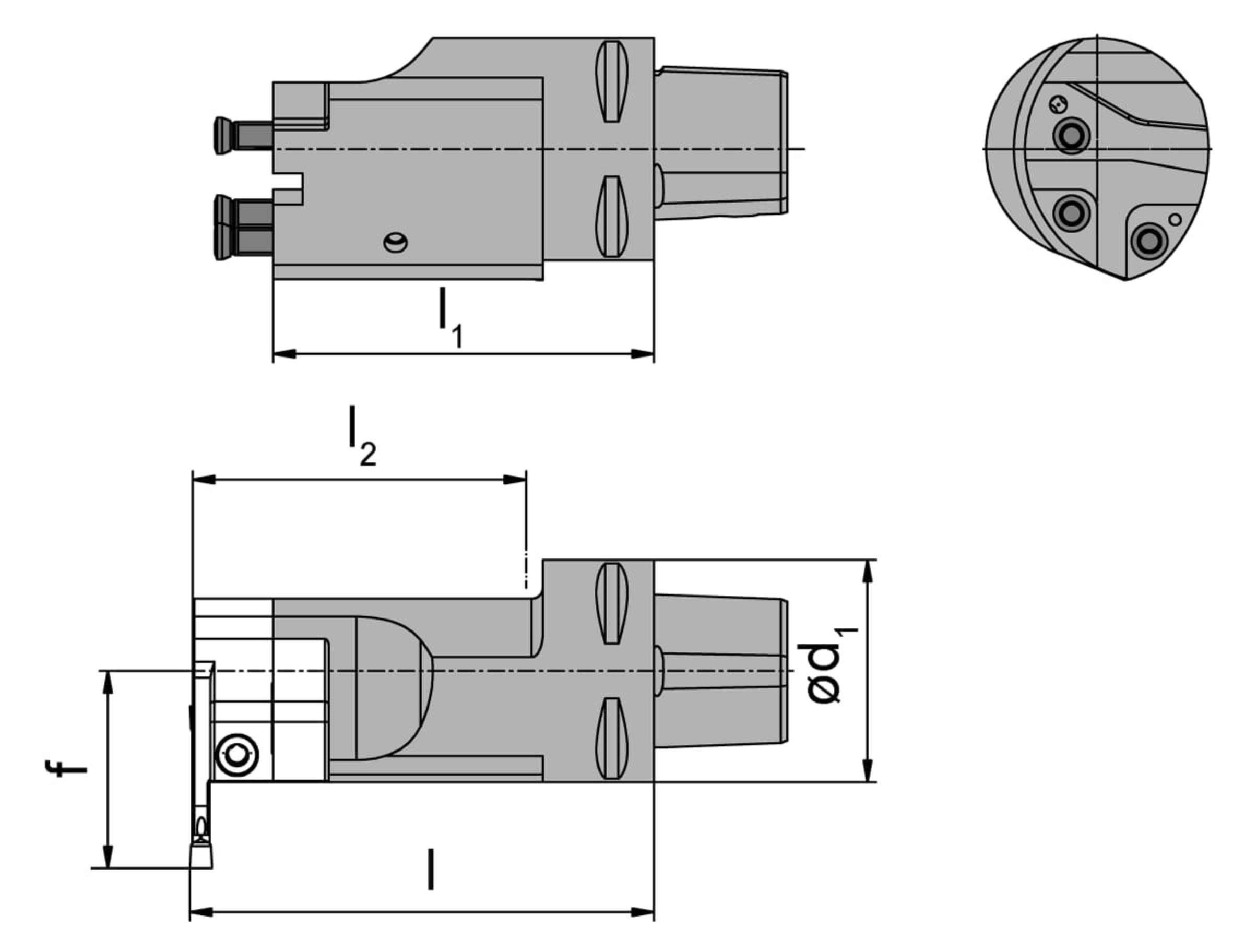

Length assembly formula (l)
l1+b1+w/2
eclass-shortcut
21-18-10-18
ISO_CCTMS
CCS01C0500$$$$
DIN_CCTMS
CCS05000195
Katalog_CCTWS
BK2291
DIN_CCTWS
HORN-BK229193;HORN-BK229183
ISO_CCTWS
HORNBK229193$$;HORNBK229183$$
Length assembly (l2)
50
mm
Length from bore (l1)
58.5
mm
Adjustment dimension (f)
35.5
mm
Bore diameter rotate (d1)
50
mm
| Downloads | |
|---|---|
| RB229_00C5_1_K2_20171121_225859302.STP | Download |
| RB22900C51K2IK.DXF | Download |
| Download all files | |
