RB229.TS63.2.K2
base support
Part number RB229TS632K2

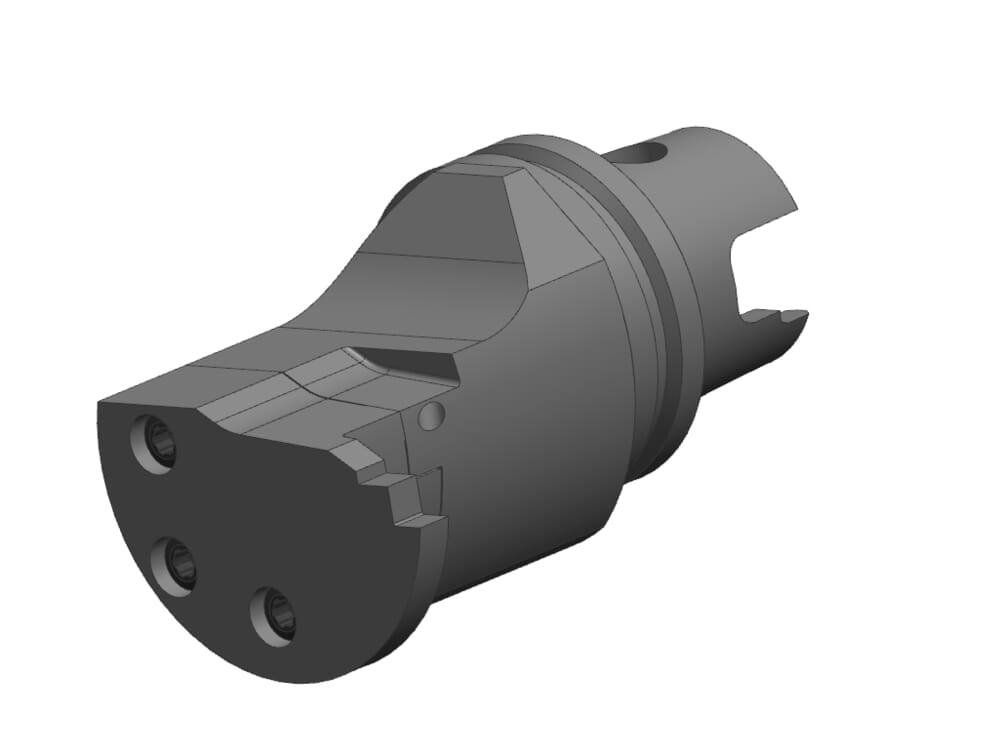

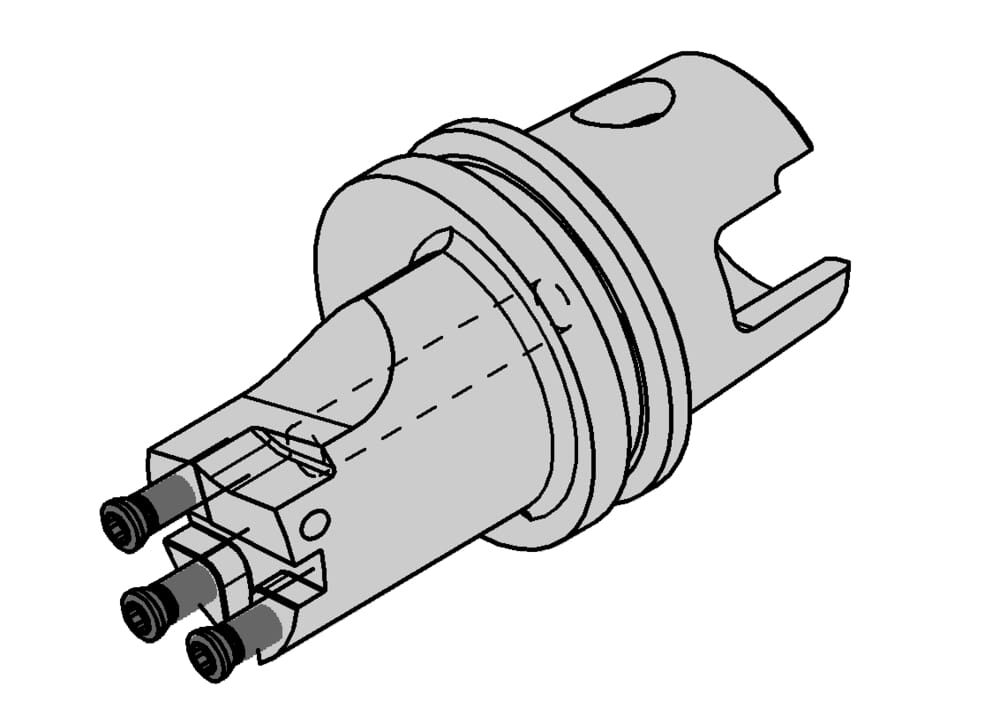

HORN base support RB229.TS63.2.K2 for Turning
Please note:Technical instructions
Length assembly formula (l)
l1+b1+w/2
eclass-shortcut
21-18-10-18
ISO_CCTMS
KMT01C0630$$$$
DIN_CCTMS
KMT06300185
Katalog_CCTWS
BK2291
DIN_CCTWS
HORN-BK229183
ISO_CCTWS
HORNBK229183$$
adjustment-dimension-cutting-edge-from-center-met
35.5
mm
Length assembly (l2)
82
mm
Length from bore (l1)
88.5
mm
Adjustment dimension (f)
35.5
mm
Bore diameter rotate (d1)
63
mm
| Downloads | |
|---|---|
| RB229TS632K2.DXF | Download |
| RB229_KM63_2_K2.STP | Download |
| Download all files | |
