RBK229.0050.04
Toolholders
Part number RBK229005004

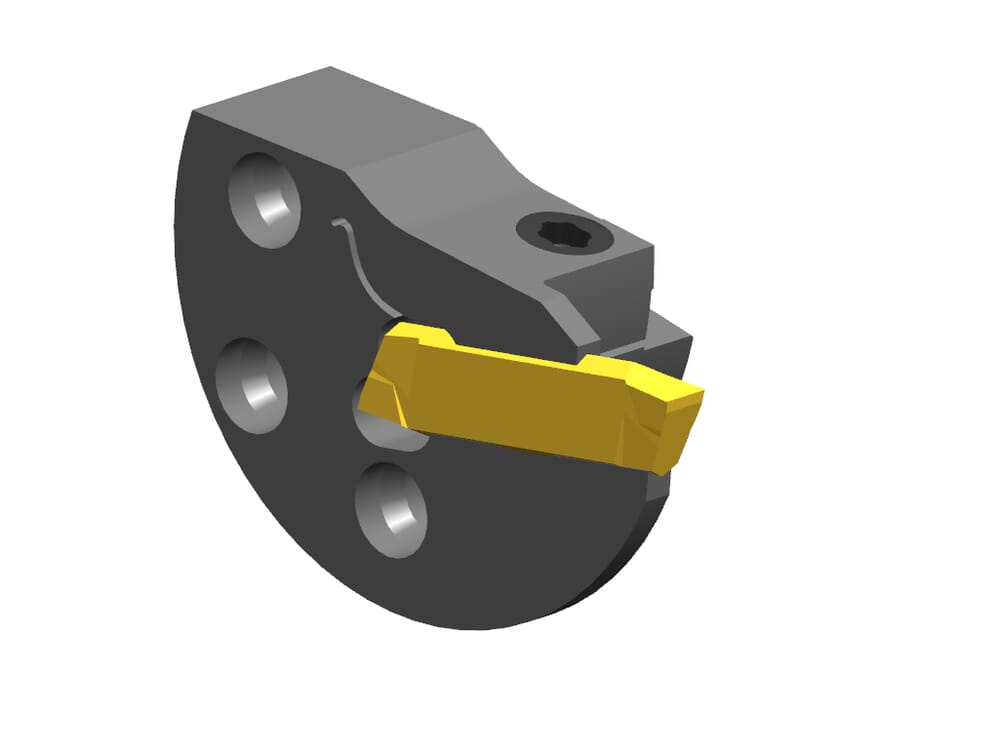

HORN Toolholders RBK229.0050.04 for Turning
Please note:Technical instructions
ISO_CCTWS
HORN229040108N$$$$$
eclass-shortcut
21-18-10-05
Plating seat size (Größe)
4
Katalog_CCTMS
BK2291
ISO_CCTMS
HORNBK229183$$
DIN_CCTMS
HORN-BK229183
Katalog_CCTWS
229040
DIN_CCTWS
HORN-229040108N
Clamping range maximum (Spannbereich)
5.09
mm
Clamping range minimum (Spannbereich)
4
mm

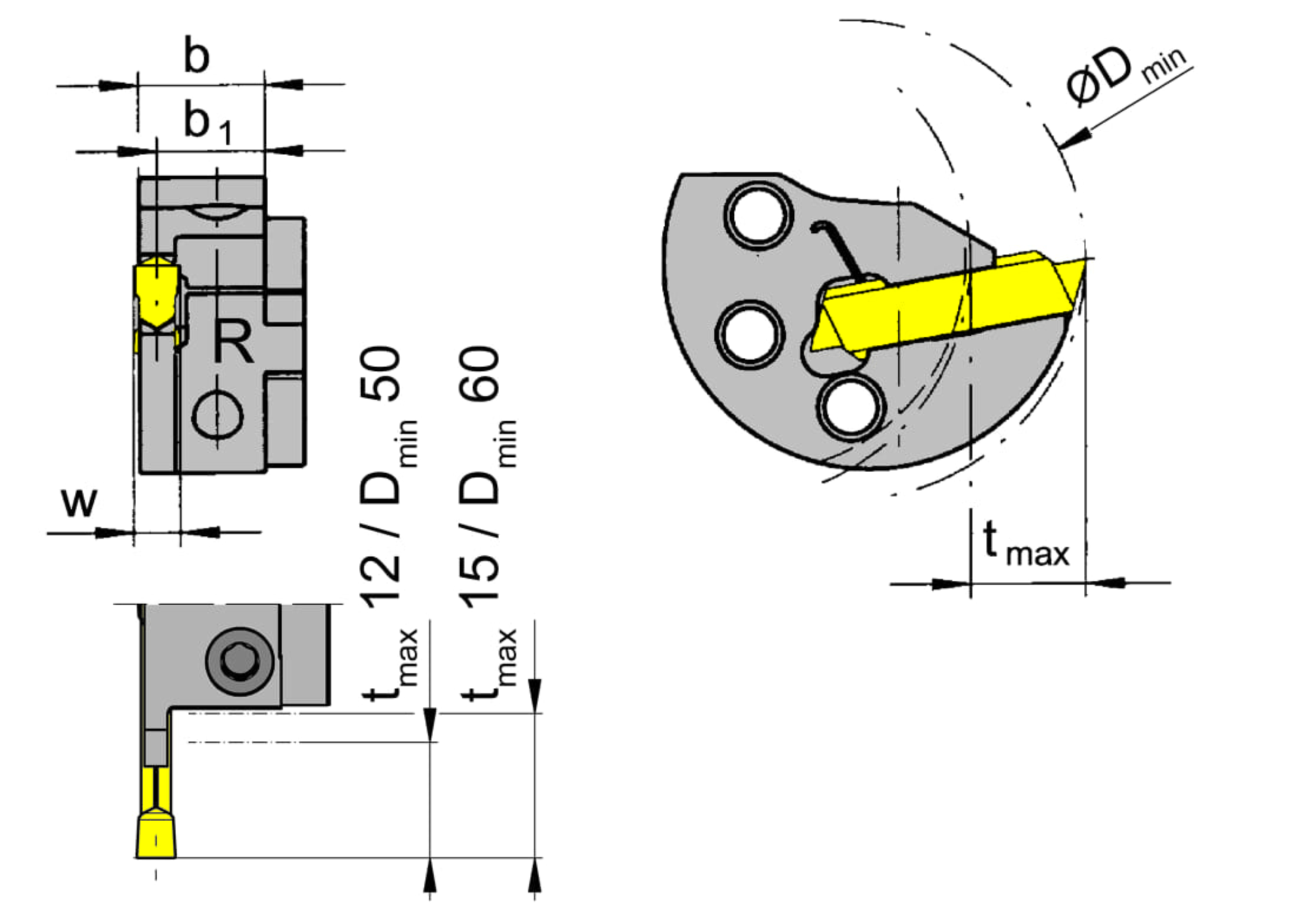

Adjustment dimension cutting center (b1)
12.5
mm
Width (b)
14.2
mm
| Downloads | |
|---|---|
| RBK229005004.DXF | Download |
| RBK229_0050_04_20171121_214411834.STP | Download |
| Download all files | |
