RH100.1212.12.IK
Toolholder
Part number RH100121212IK

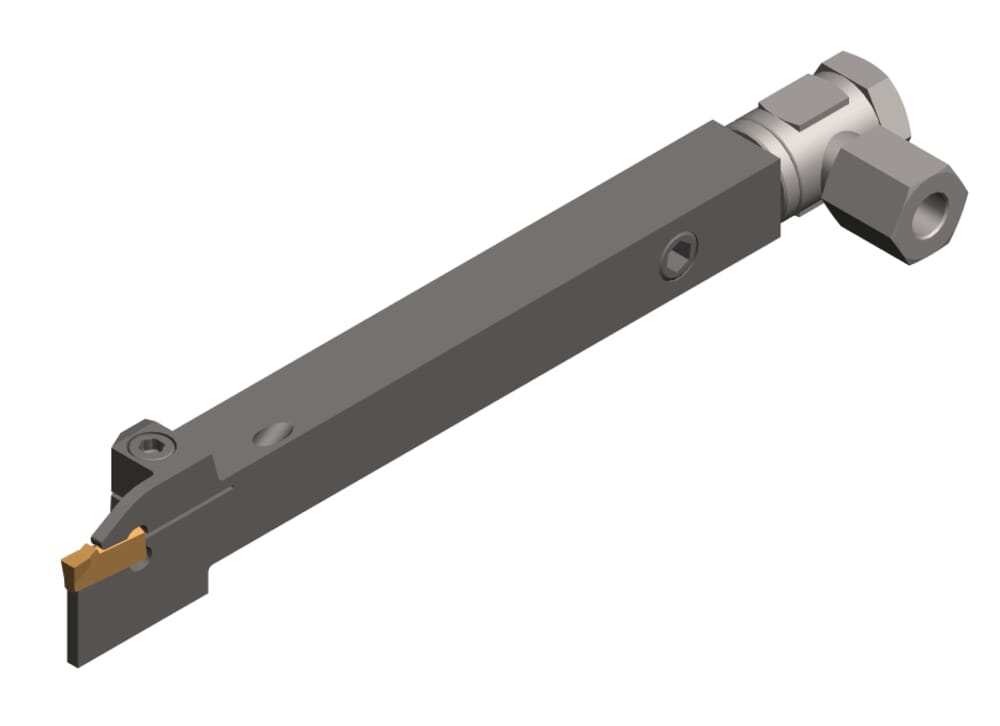

HORN Toolholder RH100.1212.12.IK for Turning
Please note:Technical instructions
Peak height (h1)
16
mm
eclass-shortcut
21-18-10-04
Form (Form)
A
ISO_CCTMS
VKT01A1212$$$$
DIN_CCTMS
VKT12120115
Katalog_CCTWS
100028
DIN_CCTWS
HORN-100020058N
ISO_CCTWS
HORN100020058N$$$$$
Head length top (including cutting edge) (l3)
26
mm
Head length (including cutting edge) (l2)
24
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
16
mm
Head height (HK)
25
mm
Shank height (h)
12
mm
Size (Größe)
2
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
11.05
mm
Shank width (b)
12
mm
