RH100.1616.21.IK
Toolholder
Part number RH100161621IK

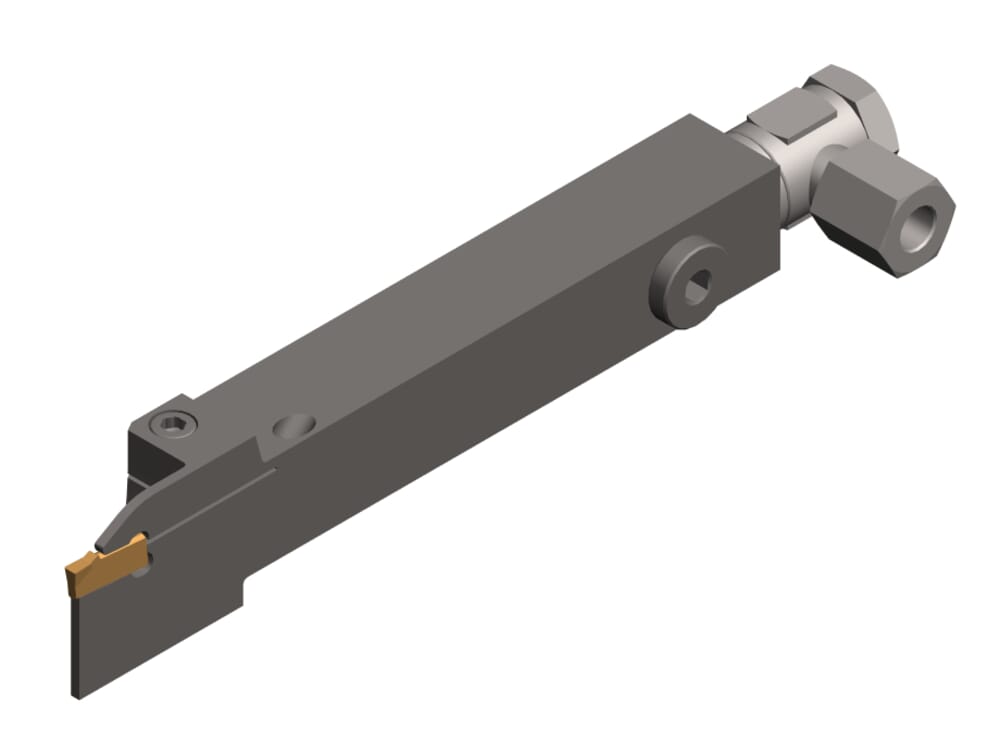

HORN Toolholder RH100.1616.21.IK for Turning
Please note:Technical instructions
Peak height (h1)
16
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
100018
DIN_CCTWS
HORN-100010058N
ISO_CCTWS
HORN100010058N$$$$$
Head length top (including cutting edge) (l3)
33.5
mm
Head length (including cutting edge) (l2)
30
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
21
mm
Head height (HK)
25
mm
Shank height (h)
16
mm
Size (Größe)
1
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
15.25
mm
Shank width (b)
16
mm
