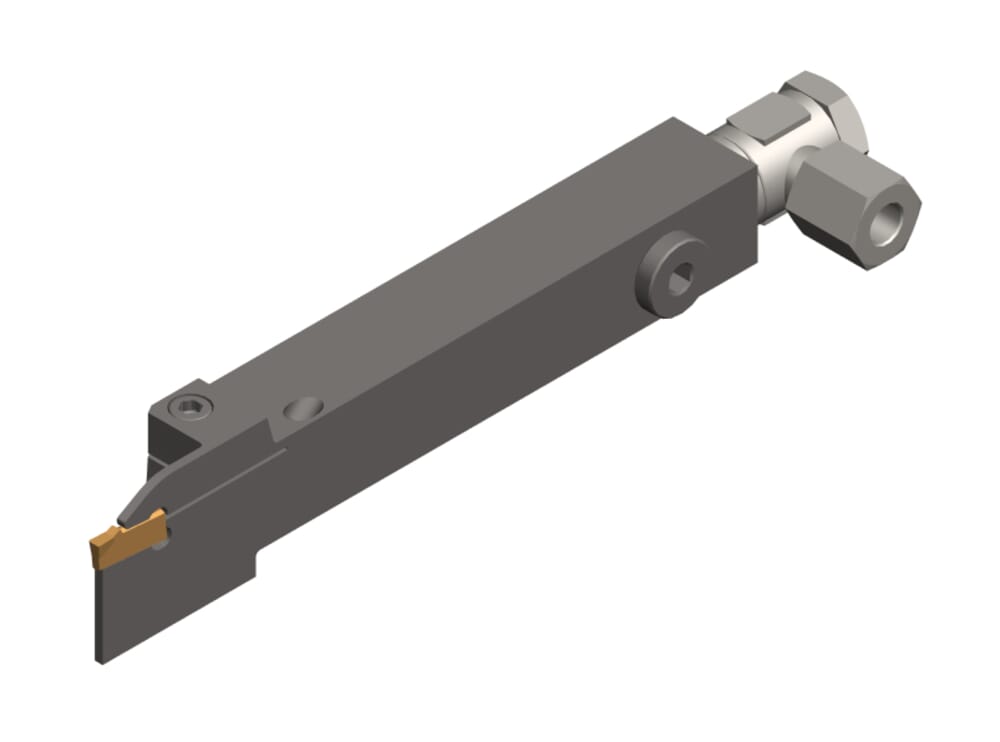

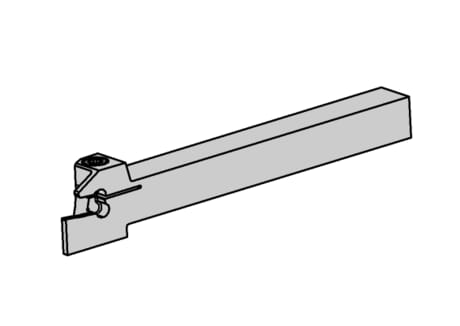

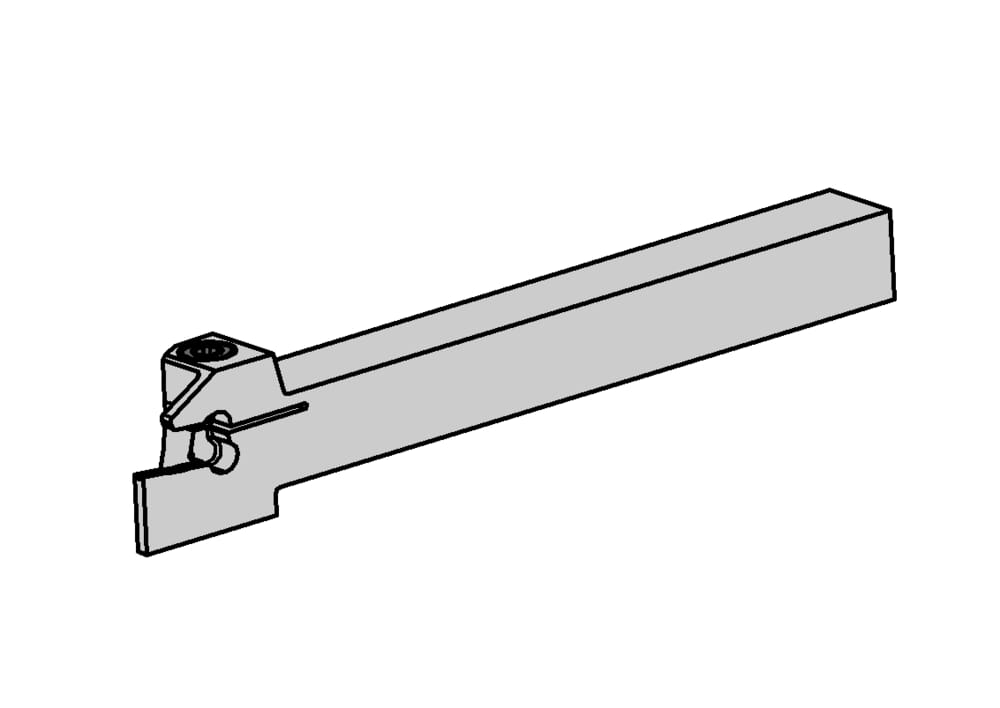

RH100.1616.23.IK
Toolholder
Part number RH100161623IK
HORN Toolholder RH100.1616.23.IK for Turning
Please note:Technical instructions
Peak height (h1)
20
mm
eclass-shortcut
21-18-10-04
Form (Form)
A
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
Head length top (including cutting edge) (l3)
33.5
mm
Head length (including cutting edge) (l2)
30
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
21
mm
Head height (HK)
25
mm
Shank height (h)
16
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
14.85
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| RH100161623_20210626_074917840.DXF | Download |
| RH100_1616_23_IK.STP | Download |
| Download all files | |
