RH100.2020.23.IK
Toolholder
Part number RH100202023IK

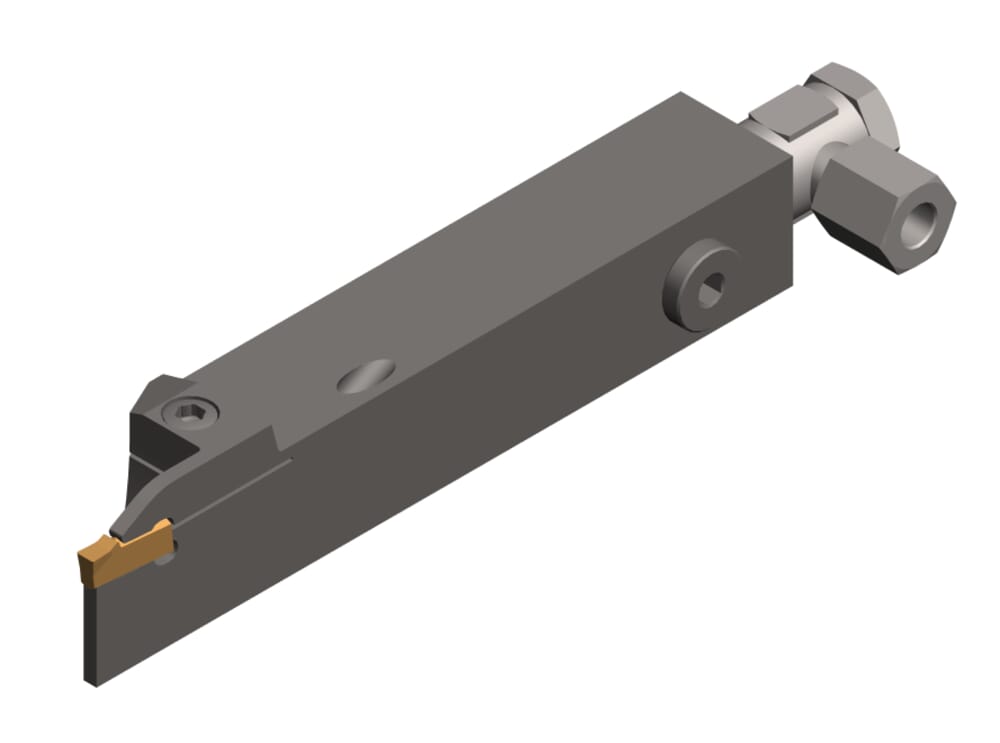

HORN Toolholder RH100.2020.23.IK for Turning
Please note:Technical instructions
Peak height (h1)
20
mm
eclass-shortcut
21-18-10-04
Form (Form)
A
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
Head length top (including cutting edge) (l3)
33.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
21
mm
Head height (HK)
25
mm
Shank height (h)
20
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
18.85
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| RH100_2020_23_20171121_200431638.STP | Download |
| RH100202023IK_20210626_081349462.DXF | Download |
| Download all files | |
