RH100.2020.3.2.04.IK
Toolholder
Part number RH10020203204IK

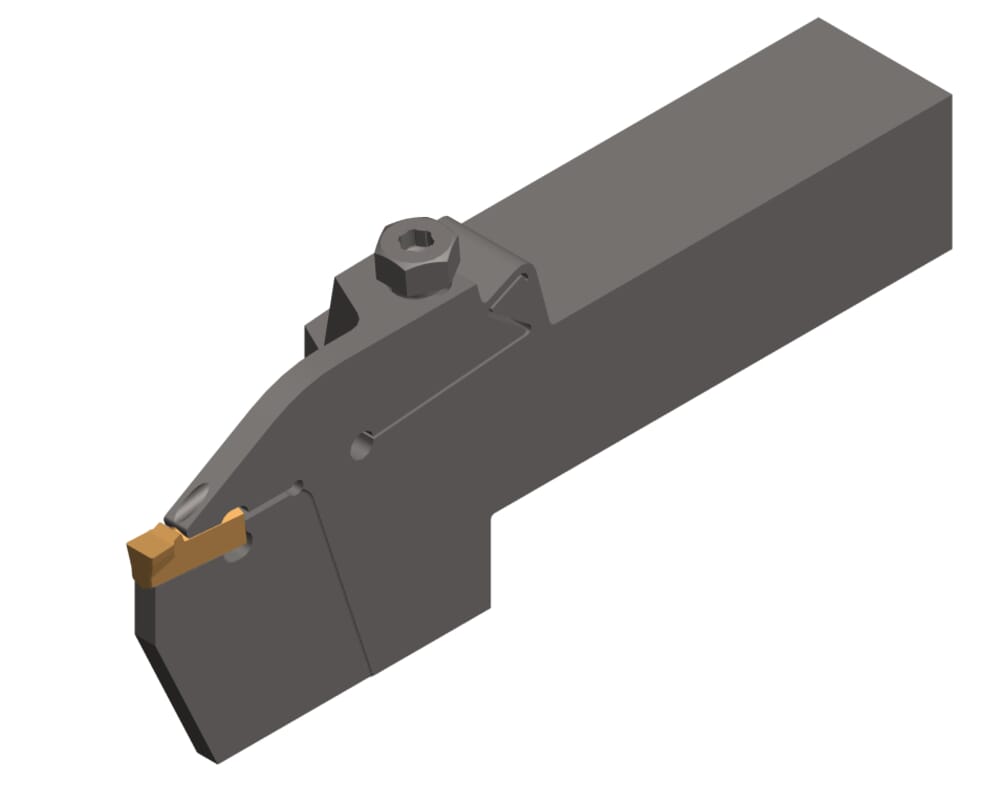

HORN Toolholder RH100.2020.3.2.04.IK for Turning
Please note:Technical instructions
Adjustment dimension (formula) (f)
f1+w/2
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
100048
DIN_CCTWS
HORN-100040058N
ISO_CCTWS
HORN100040058N$$$$$
Head length top (including cutting edge) (l3)
60
mm
Head length (including cutting edge) (l2)
51
mm
Peak height (h1)
32
mm
Maximum insertion depth (tmax)
33
mm
Shank height (h)
20
mm
Size (Größe)
4
Total length (including cutting insert) (l1)
120
mm
Adjustment dimension cutting center (f1)
18.3
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| RH100202032.DXF | Download |
| RH10020203204IK_20210630_185625137.STP | Download |
| Download all files | |
