RH100.2525.3.2.04.IK
Toolholder
Part number RH10025253204IK

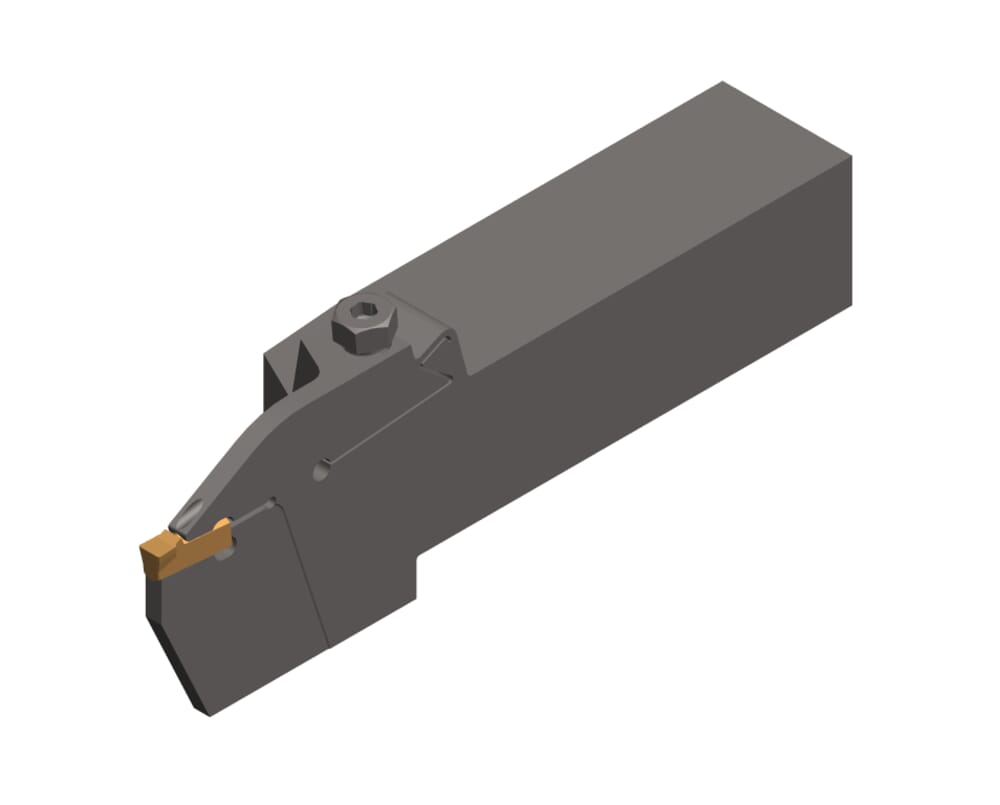

HORN Toolholder RH100.2525.3.2.04.IK for Turning

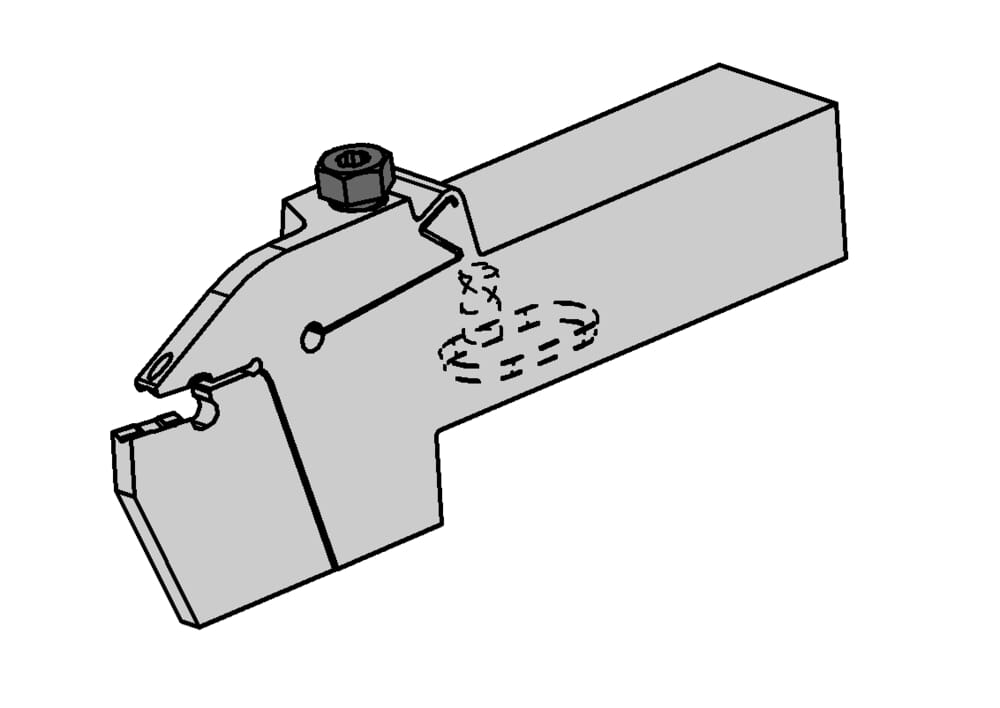

Please note:Technical instructions

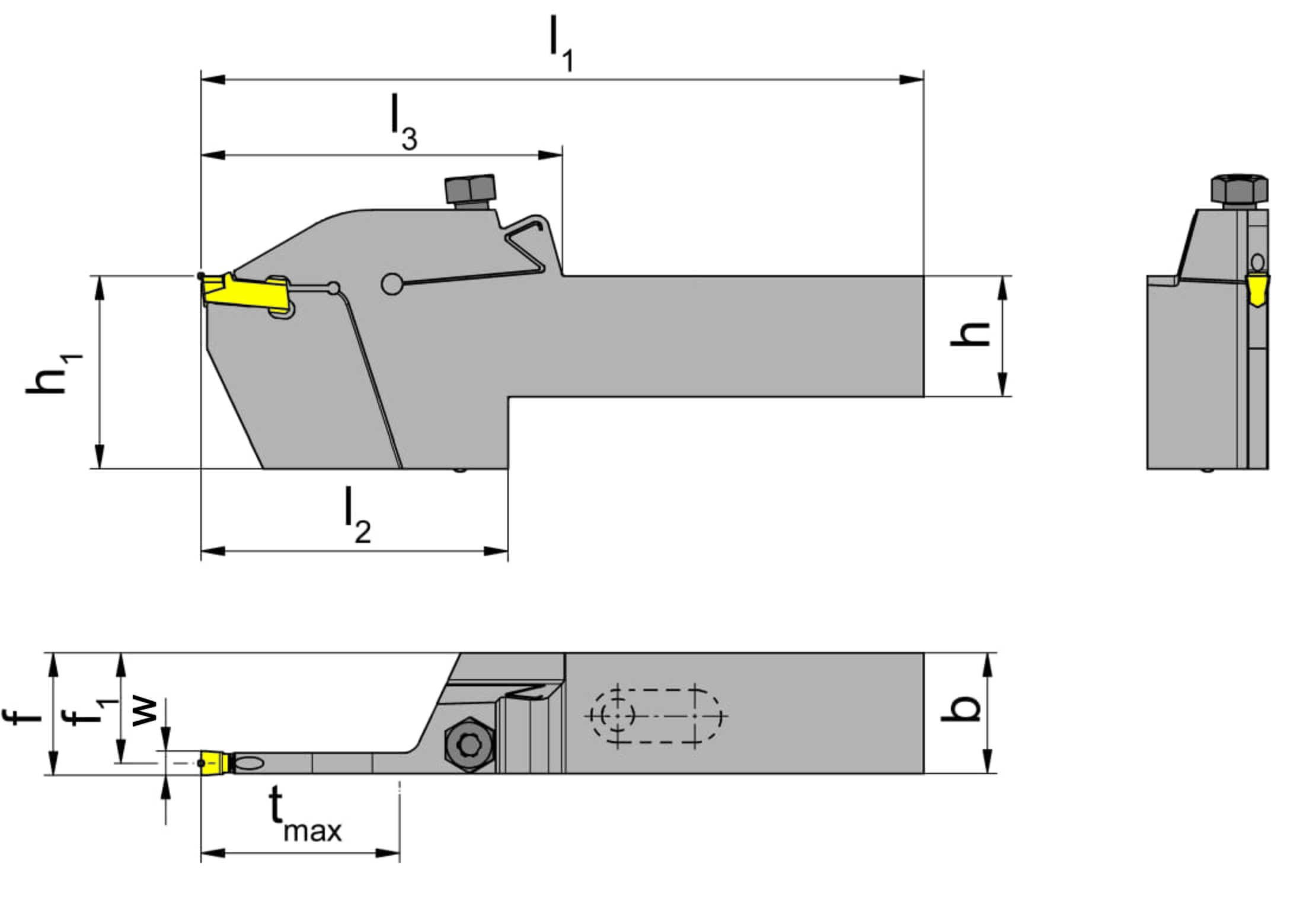

Adjustment dimension (formula) (f)
f1+w/2
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
100048
DIN_CCTWS
HORN-100040058N
ISO_CCTWS
HORN100040058N$$$$$
Head length top (including cutting edge) (l3)
60
mm
Head length (including cutting edge) (l2)
50
mm
Peak height (h1)
32
mm
Maximum insertion depth (tmax)
33
mm
Shank height (h)
25
mm
Size (Größe)
4
Total length (including cutting insert) (l1)
134
mm
Adjustment dimension cutting center (f1)
23.3
mm
Shank width (b)
25
mm
