RH224.1616.2.04.IK
Toolholder
Part number RH2241616204IK

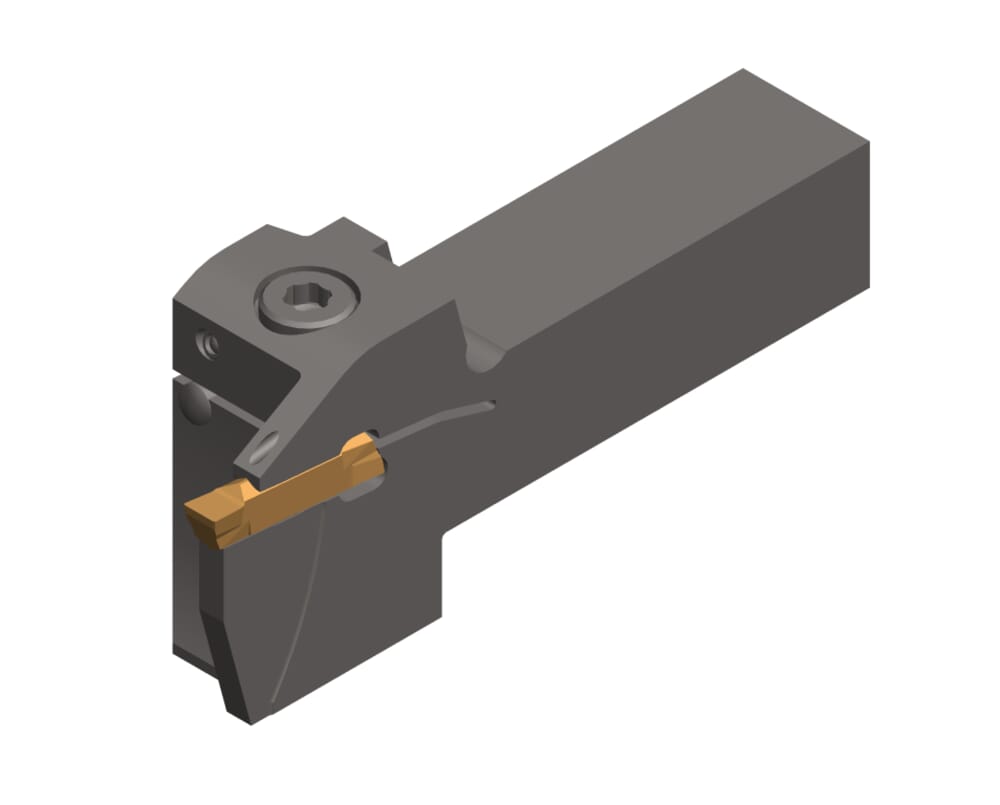

HORN Toolholder RH224.1616.2.04.IK for Turning
Please note:Technical instructions
Head length (including cutting edge) (l2)
29
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
224048
DIN_CCTWS
HORN-224040058N
ISO_CCTWS
HORN224040058N$$$$$
Head length top (including cutting edge) (l3)
35
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
14
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
83
mm
Adjustment dimension cutting center (f1)
14.3
mm
Shank width (b)
16
mm
