RH224.2525.2.04.IK
Toolholder
Part number RH2242525204IK

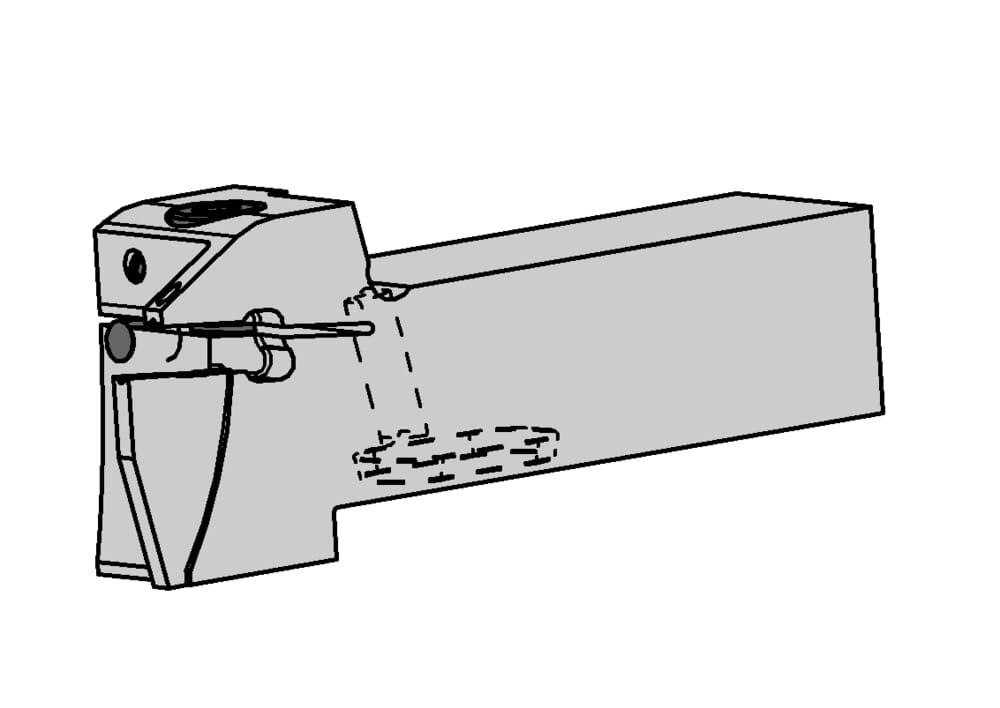

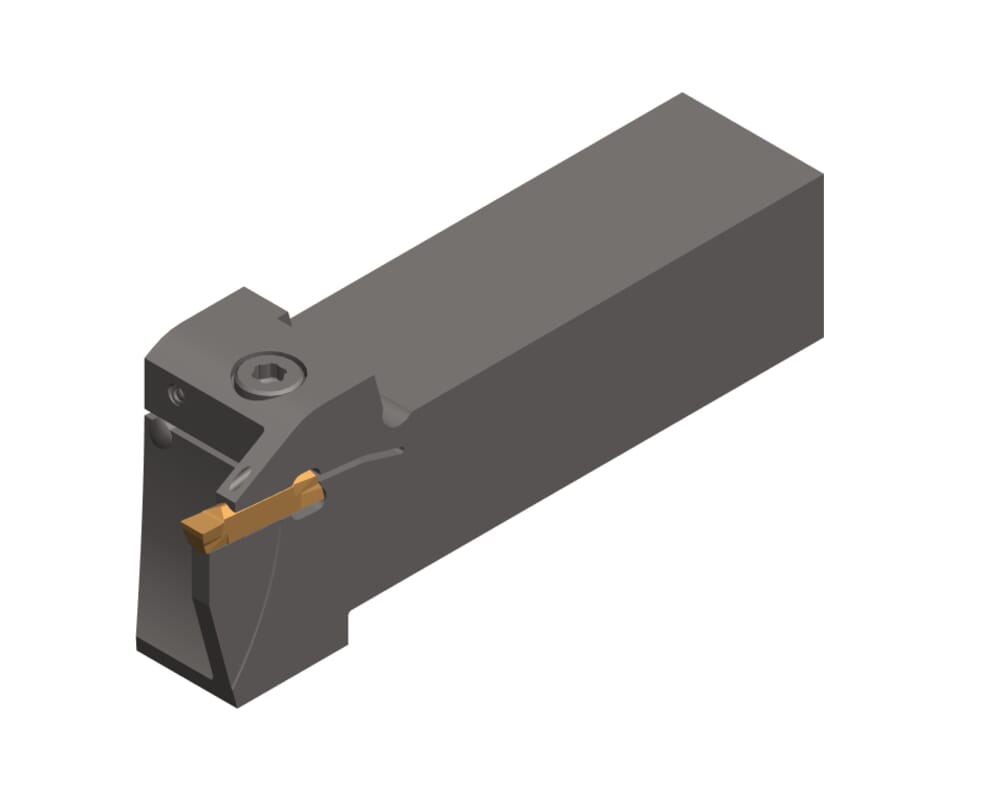

HORN Toolholder RH224.2525.2.04.IK for Turning
Please note:Technical instructions

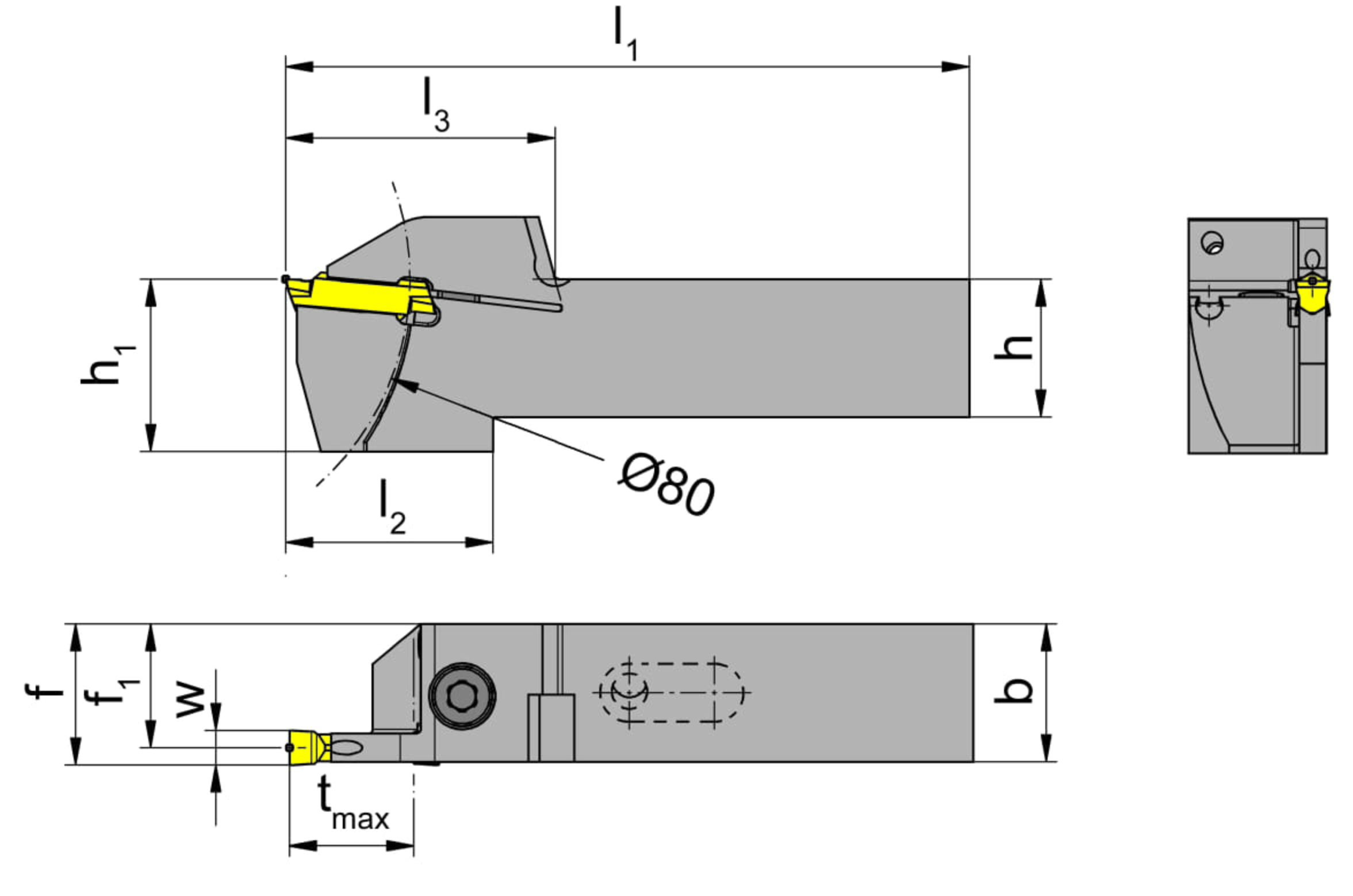

Head length (including cutting edge) (l2)
26
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
224048
DIN_CCTWS
HORN-224040058N
ISO_CCTWS
HORN224040058N$$$$$
Head length top (including cutting edge) (l3)
35
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
30
mm
Maximum insertion depth (tmax)
14
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension cutting center (f1)
23.3
mm
Shank width (b)
25
mm
