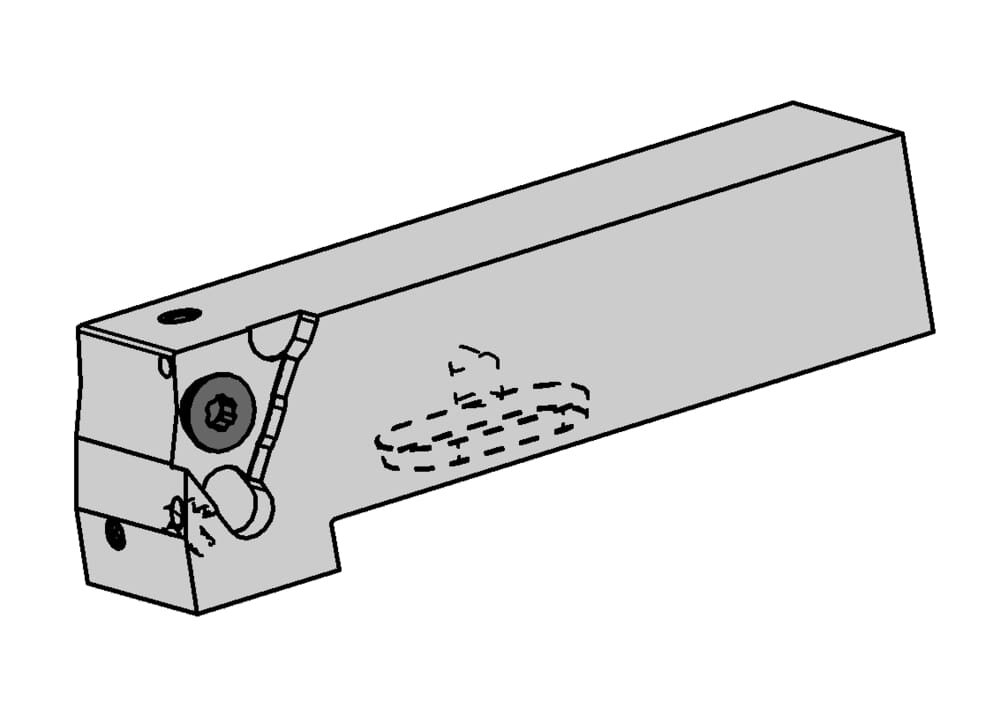

RH34T.2525.4.10.IK
Toolholder
Part number RH34T2525410IK
HORN Toolholder RH34T.2525.4.10.IK for Turning
Please note:Technical instructions
clamping-range-max-met
2
mm
eclass-shortcut
21-18-10-04
plating-seat-size
1
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
34T01N
DIN_CCTWS
HORN-34T014N
ISO_CCTWS
HORN34T01$$$$N$$$$$

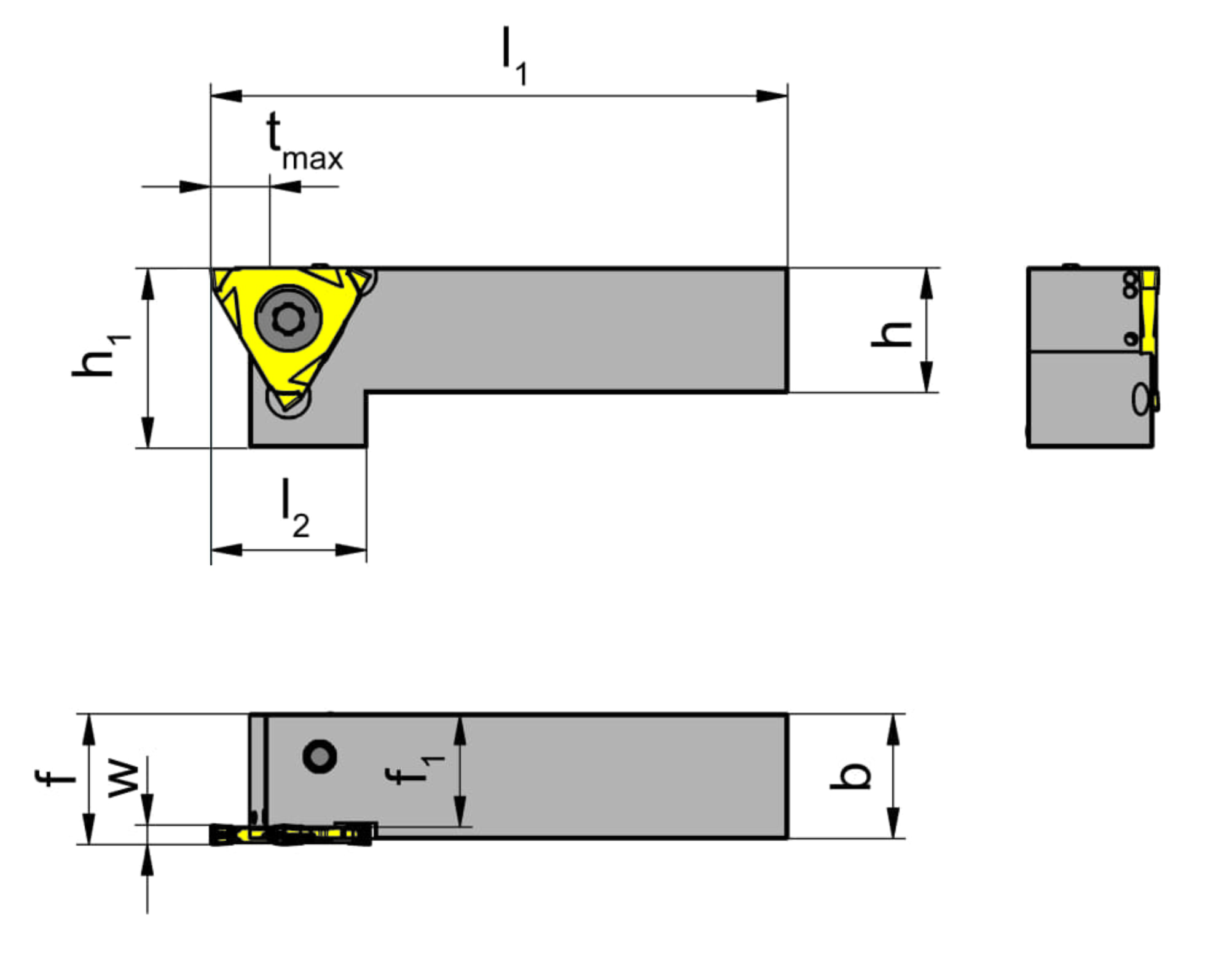

Head length (including cutting edge) (l2)
20
mm
Adjustment dimension (formula) (f)
f1+w-a1
clamping-range-min-met
2
mm
Peak height (h1)
30
mm
Maximum workpiece diameter (Dmax)
60
mm
Maximum depth of groove (tmax)
6.5
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
99
mm
Adjustment dimension (f1)
23.5
mm
Shank width (b)
25
mm
