RH64T.2020.4.10.IK
Toolholder
Part number RH64T2020410IK

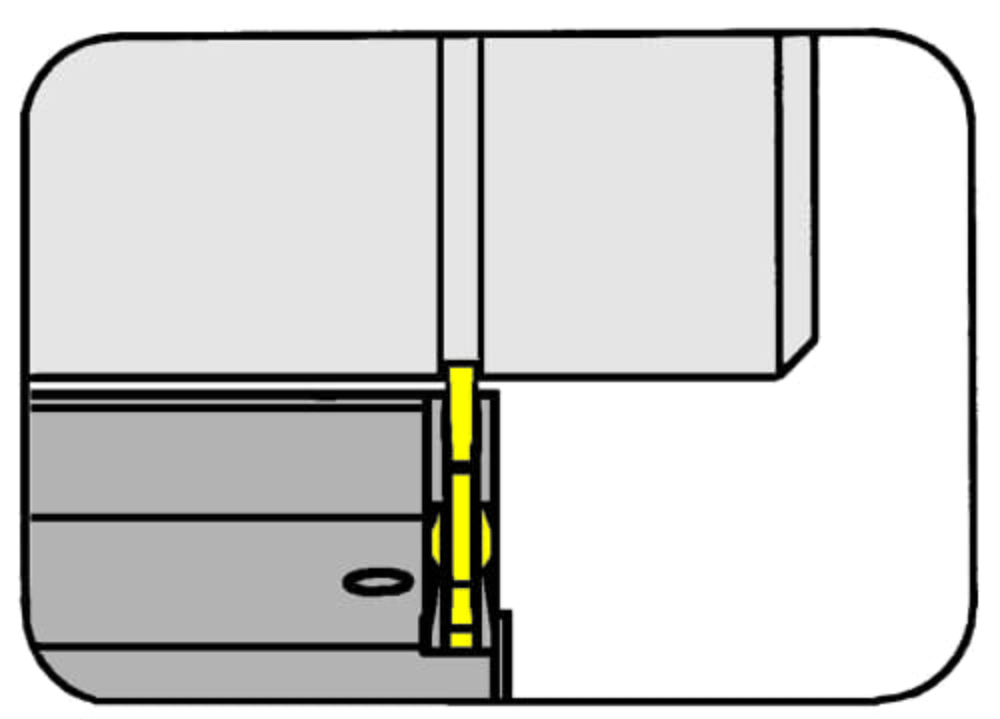

HORN Toolholder RH64T.2020.4.10.IK for Turning
Please note:Technical instructions
Adjustment dimension locating face insert (f1)
17.8
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
1
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT25200115
Katalog_CCTWS
64T01N
DIN_CCTWS
HORN-64T014N
ISO_CCTWS
HORN64T01$$$4N$$$$$
Coolant supply (Kühlmittelanschluss)
VDI
Cutting insert width (l4)
1
mm
Head length top (including cutting edge) (l3)
24.5
mm
Head length (including cutting edge) (l2)
25
mm
Adjustment dimension (formula) (f)
f1+w+a1
Peak height (h1)
25
mm
Shank height (h)
20
mm
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| RH64T2020410IK.DXF | Download |
| RH64T2020410IK_20210630_134002408.STP | Download |
| Download all files | |
