RH64T.2525.4.20.IK
Toolholder
Part number RH64T2525420IK

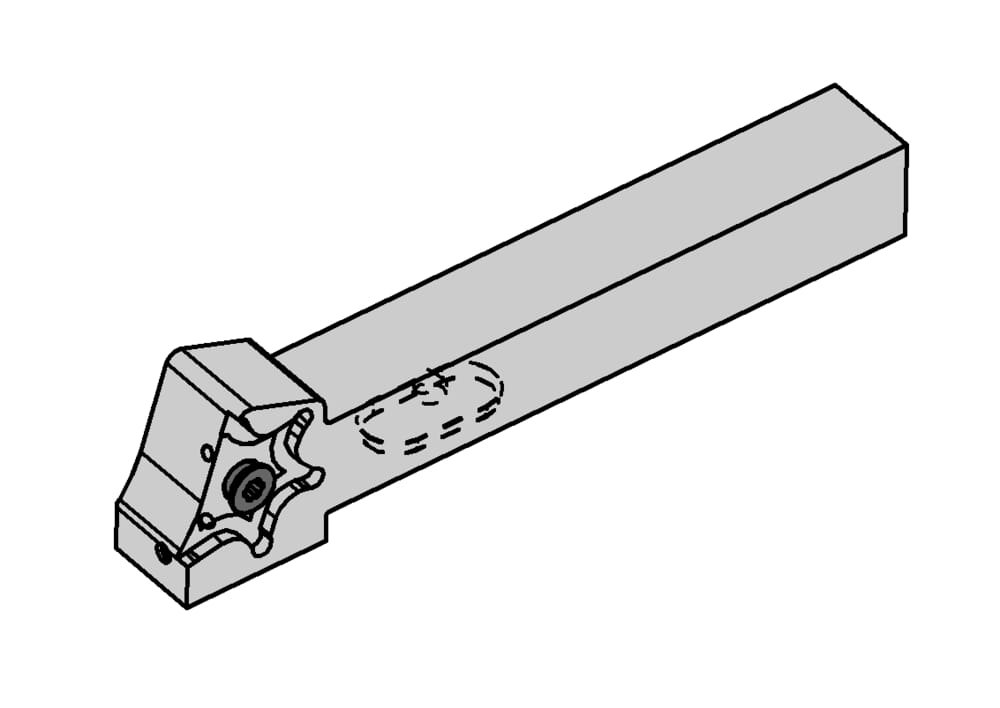

HORN Toolholder RH64T.2525.4.20.IK for Turning
Please note:Technical instructions

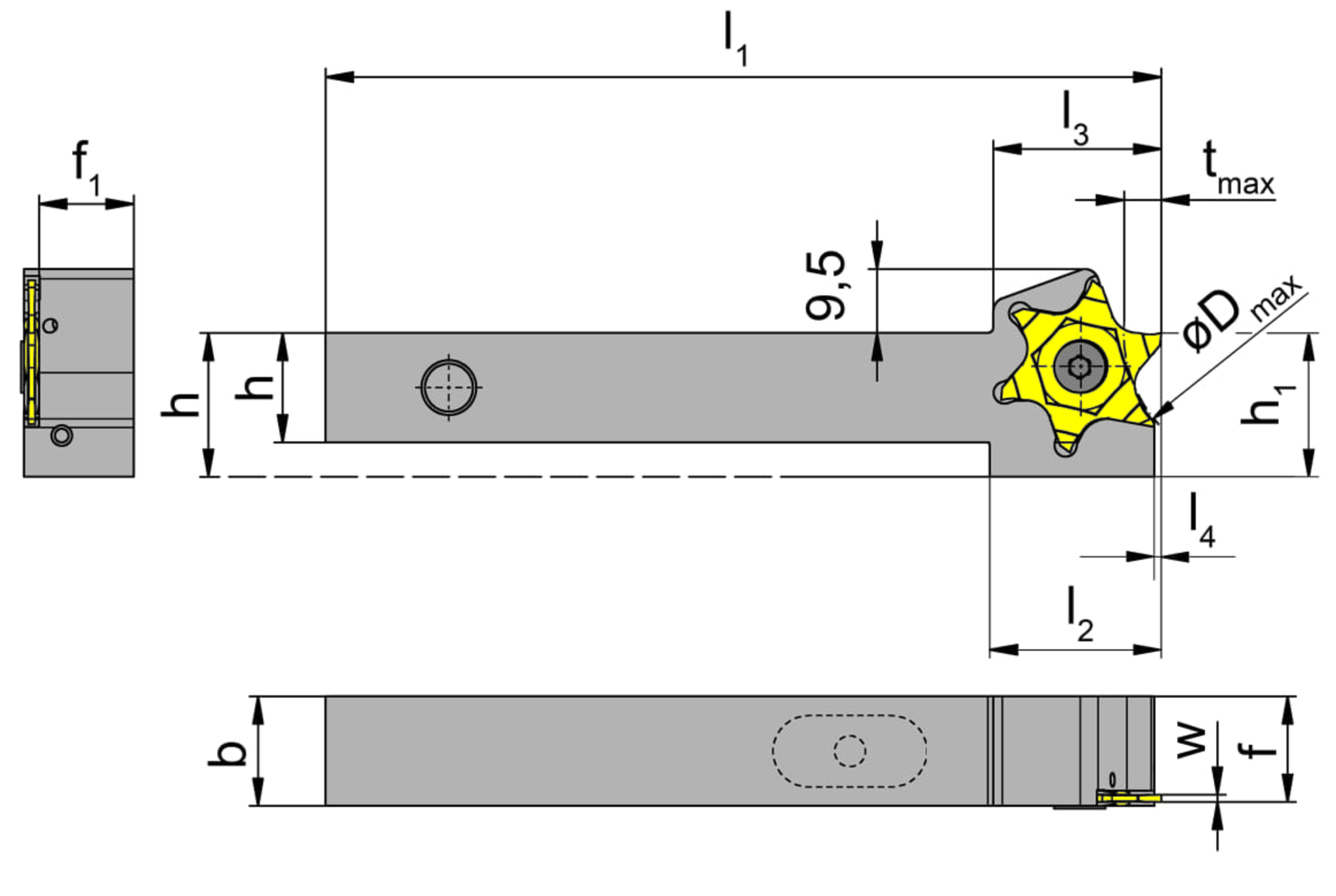

Adjustment dimension locating face insert (f1)
22.3
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
2
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
64T02N
DIN_CCTWS
HORN-64T024N
ISO_CCTWS
HORN64T02$$$4N$$$$$
Coolant supply (Kühlmittelanschluss)
VDI
Cutting insert width (l4)
1
mm
Head length top (including cutting edge) (l3)
24.5
mm
Head length (including cutting edge) (l2)
25
mm
Adjustment dimension (formula) (f)
f1+w+a1
Peak height (h1)
25
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| RH64T2525420IK.DXF | Download |
| RH64T2525420IK_20240117_031344017.STP | Download |
| Download all files | |
