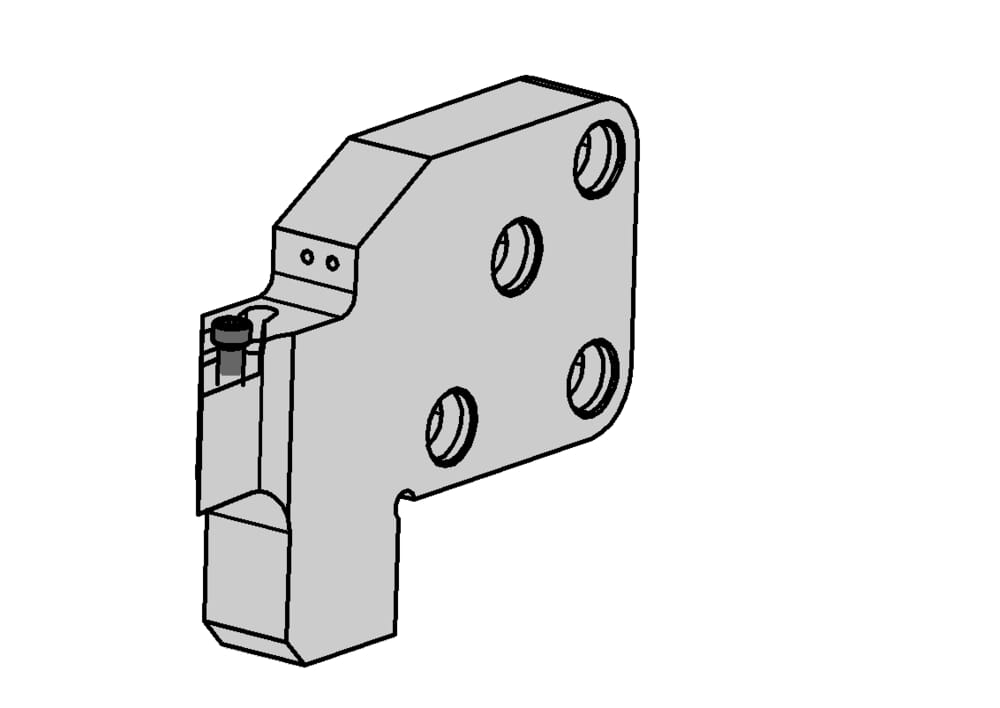

RK842.SVJCR.11.1.2.IK
Cassette type K842 for insert VC..11 03..
Part number RK842SVJCR1112IK
HORN Cassette type K842 for insert VC..11 03.. RK842.SVJCR.11.1.2.IK for Turning
Please note:Technical instructions

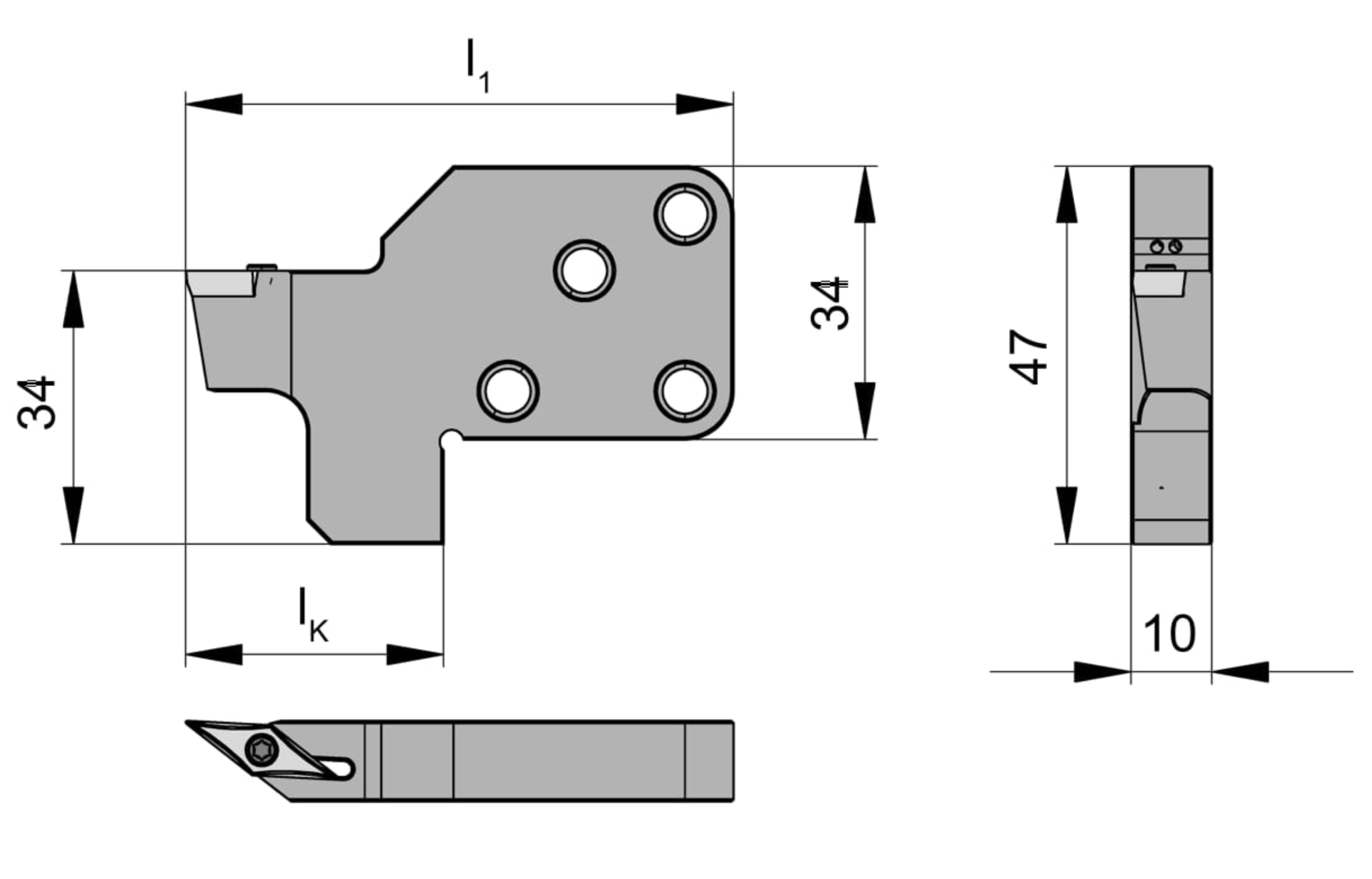

Total length (including cutting insert) (l1)
68
mm
Length of unit cassette to cutting edge (lK)
32
mm
ISO_CCTWS
ISO$VC1103013NB$$01;ISO$VC1103023NB$$02;ISO$VC1103043NB$$04;ISO$VC1103083NB$$08
DIN_CCTWS
VC1103013N;VC1103023N;VC1103043N;VC1103083N
DIN_CCTMS
HORN-84200193;HORN-84200293
ISO_CCTMS
HORN84200193$$;HORN84200293$$
Katalog_CCTMS
842001;842002
eclass-shortcut
21-18-10-04
| Downloads | |
|---|---|
| RK842SVJCR1112IK.DXF | Download |
| RK842SVJCR1112IK_20210630_165049836.STP | Download |
| Download all files | |
