RM275.0063.22.14
Part number RM27500632214

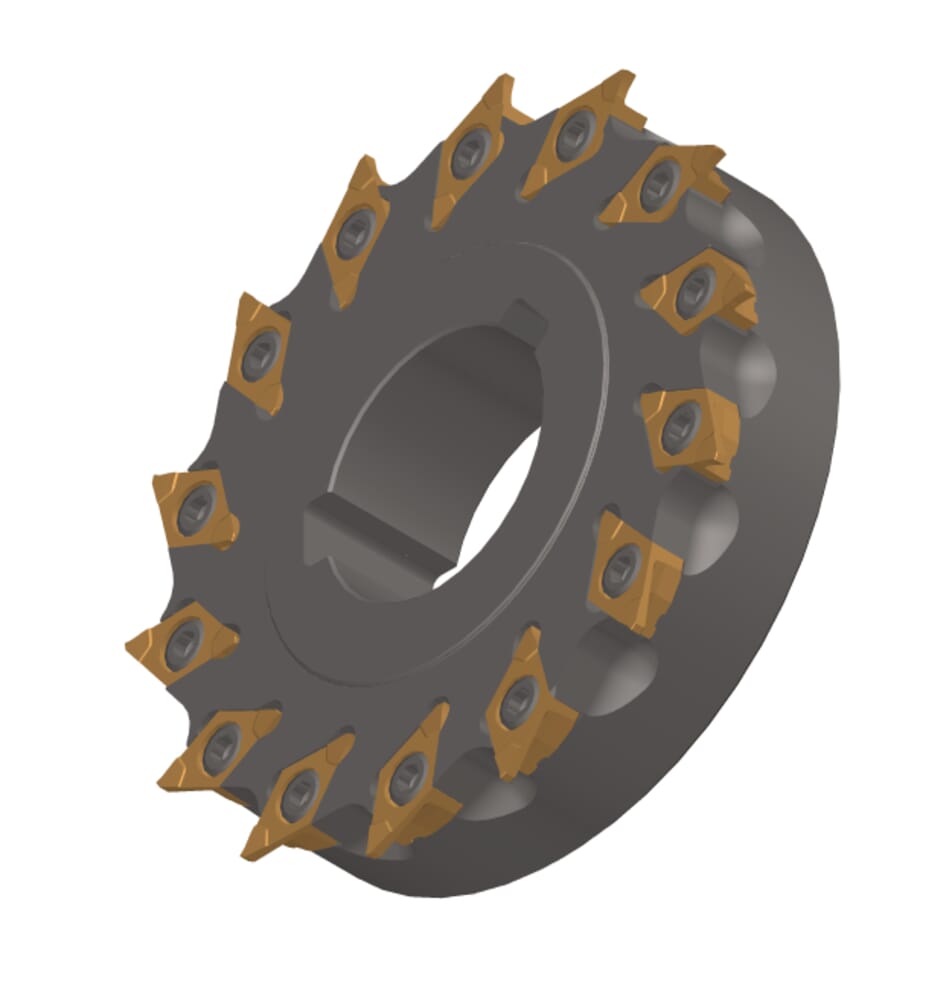

HORN RM275.0063.22.14 for Milling
Please note:Technical instructions
DIN_CCTWS
HORN-275041031R
eclass-shortcut
21-18-09-90

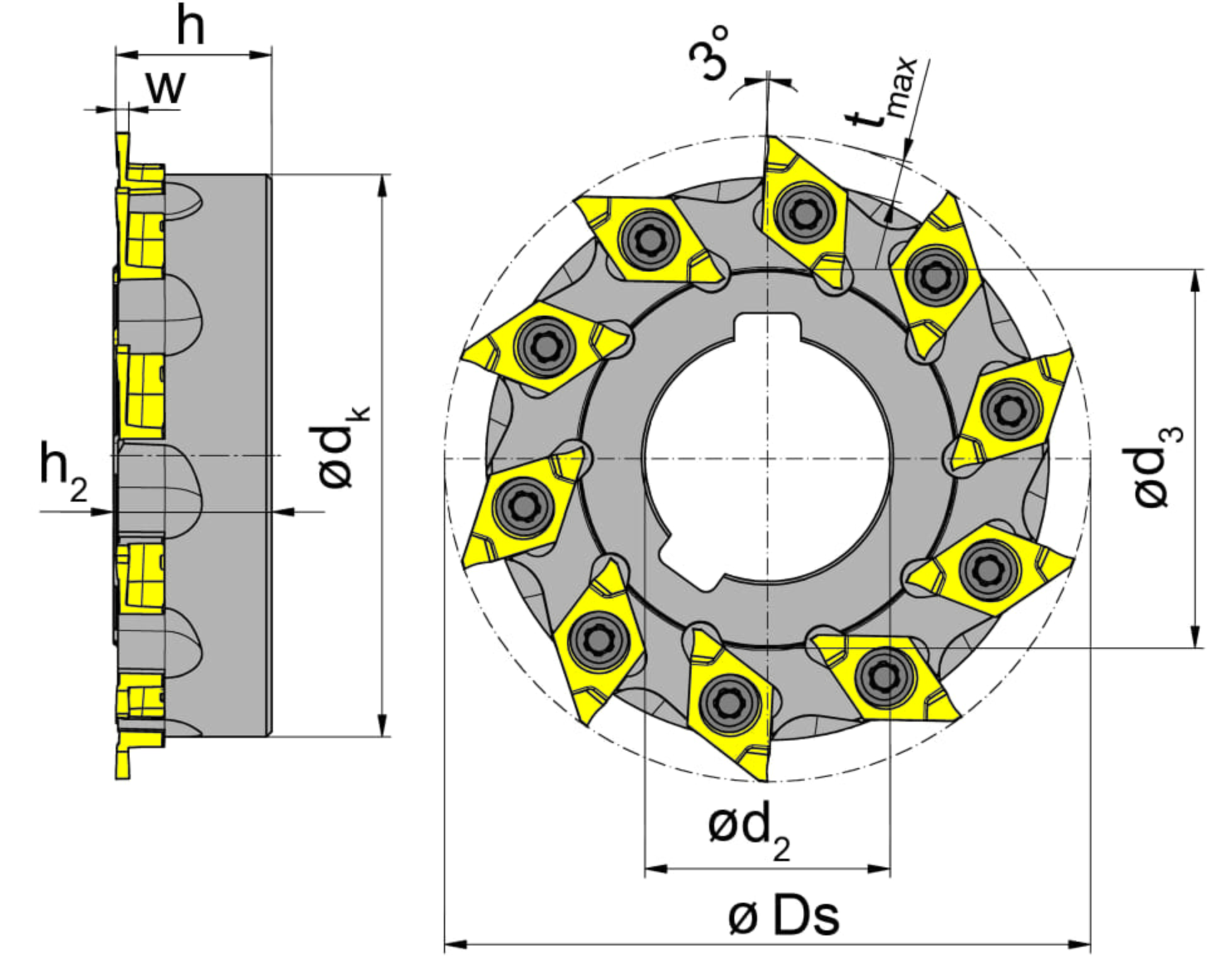

Miller body diameter (dK)
57
mm
Diameter of driver ring (d3)
30
mm
Mounting hole diameter (d2)
22
mm
Miller length without indexable insert (h)
15.8
mm
Miller length with indexable insert (h2)
16.1
mm
Katalog_CCTWS
275041R
ISO_CCTWS
HORN275041031R$$$$$
Number of teeth (Z)
14
St.
Cutting diameter (Ds)
63
mm
