RM275.D040.10.04

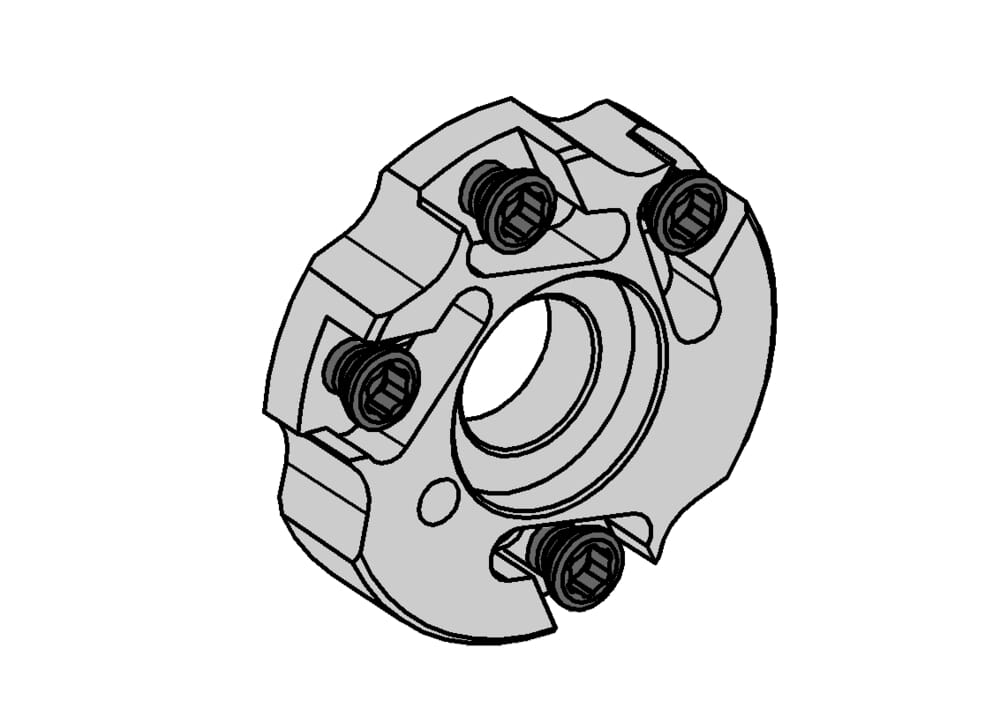

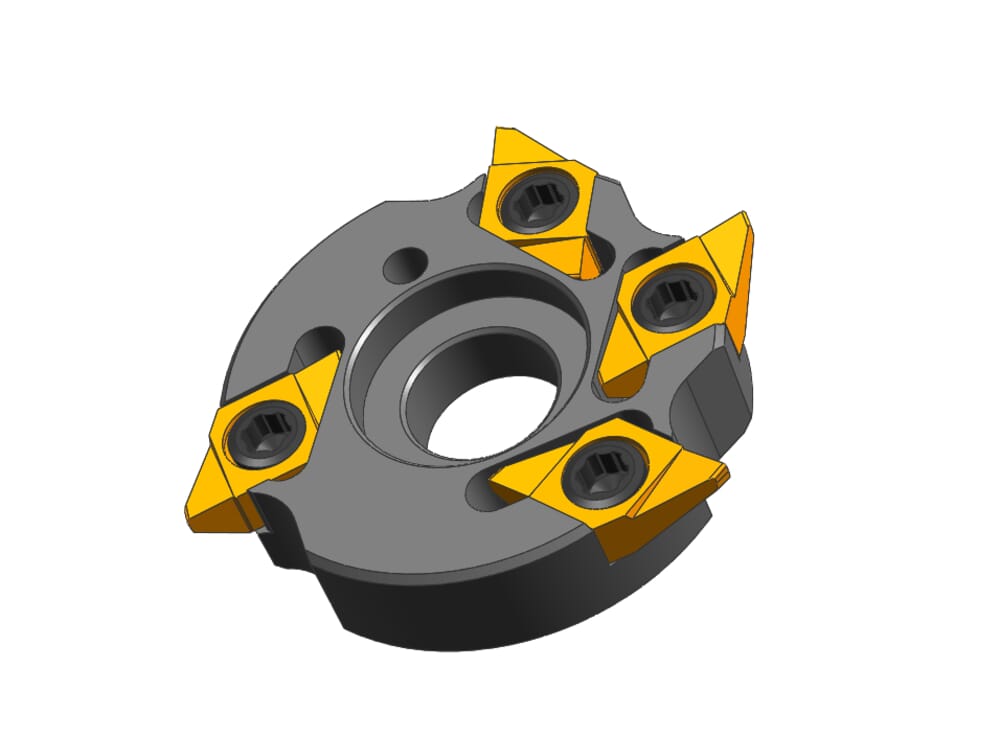

Disk milling cutter
Part number RM275D0401004
HORN Disk milling cutter RM275.D040.10.04 for Milling
Please note:Technical instructions

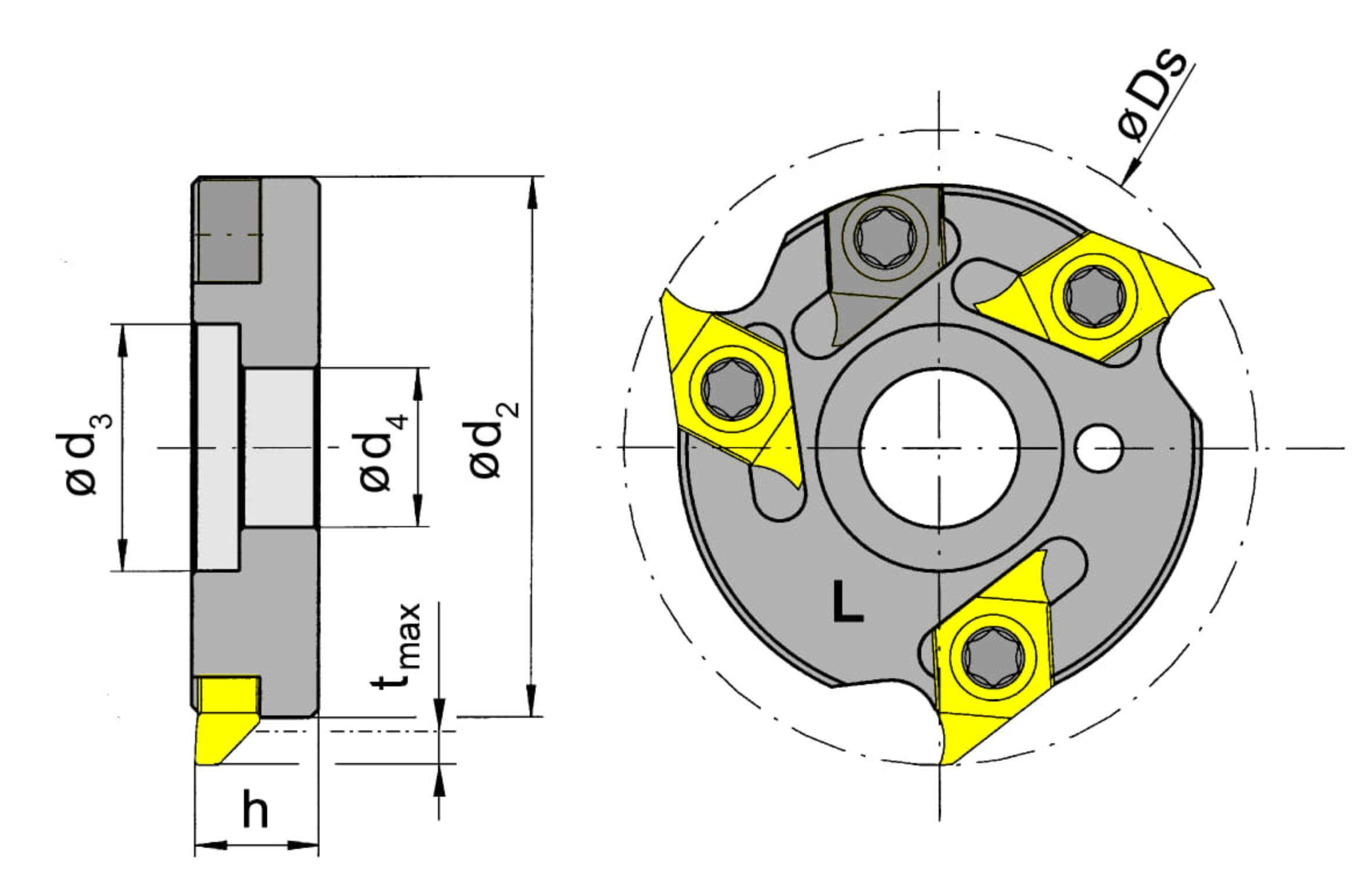

Clamping diameter (d3)
15.5
mm
eclass-shortcut
21-18-09-90
Miller body diameter (d2)
33
mm
Maximum milling depth/ depth of groove (tmax)
3
mm
Katalog_CCTWS
275041R
DIN_CCTWS
HORN-275041031R
ISO_CCTWS
HORN275041031R$$$$$
Machine type (Maschinentyp)
EvoDECO 10
Mounting, clamping diameter (d4)
10
mm
absorption-conus-diameter-met
10
Miller height, miller length, miller thickness (h)
7.9
mm
Cutting diameter (Ds)
40
mm
| Downloads | |
|---|---|
| RM275D0401004_20210629_230403012.DXF | Download |
| RM275_D040_10_04_20171121_235158413.STP | Download |
| Download all files | |
