RNK101.0842.16.5.712.IK

Cartridge

Part number RNK1010842165712IK

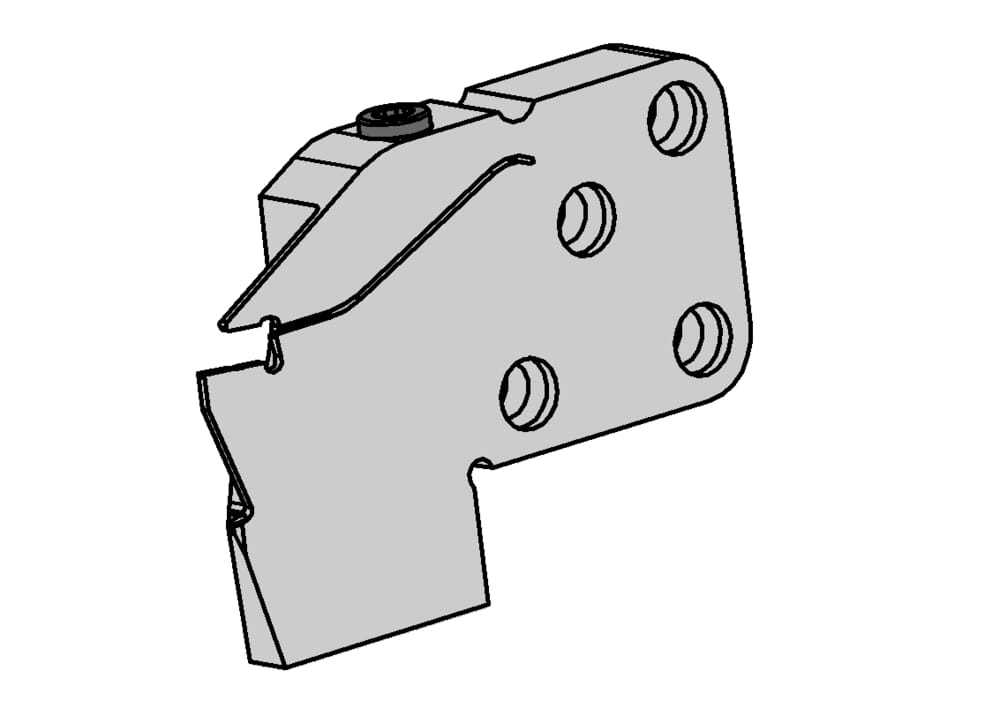

HORN Cartridge RNK101.0842.16.5.712.IK for Turning

eclass-shortcut

21-18-10-04

Width of groove (w)

1.2 mm

Katalog_CCTMS

842001;842002

ISO_CCTMS

HORN84200193$$;HORN84200293$$

DIN_CCTMS

HORN-84200193;HORN-84200293

Katalog_CCTWS

10112

DIN_CCTWS

HORN-101120058N

ISO_CCTWS

HORN101120058N$$$$$

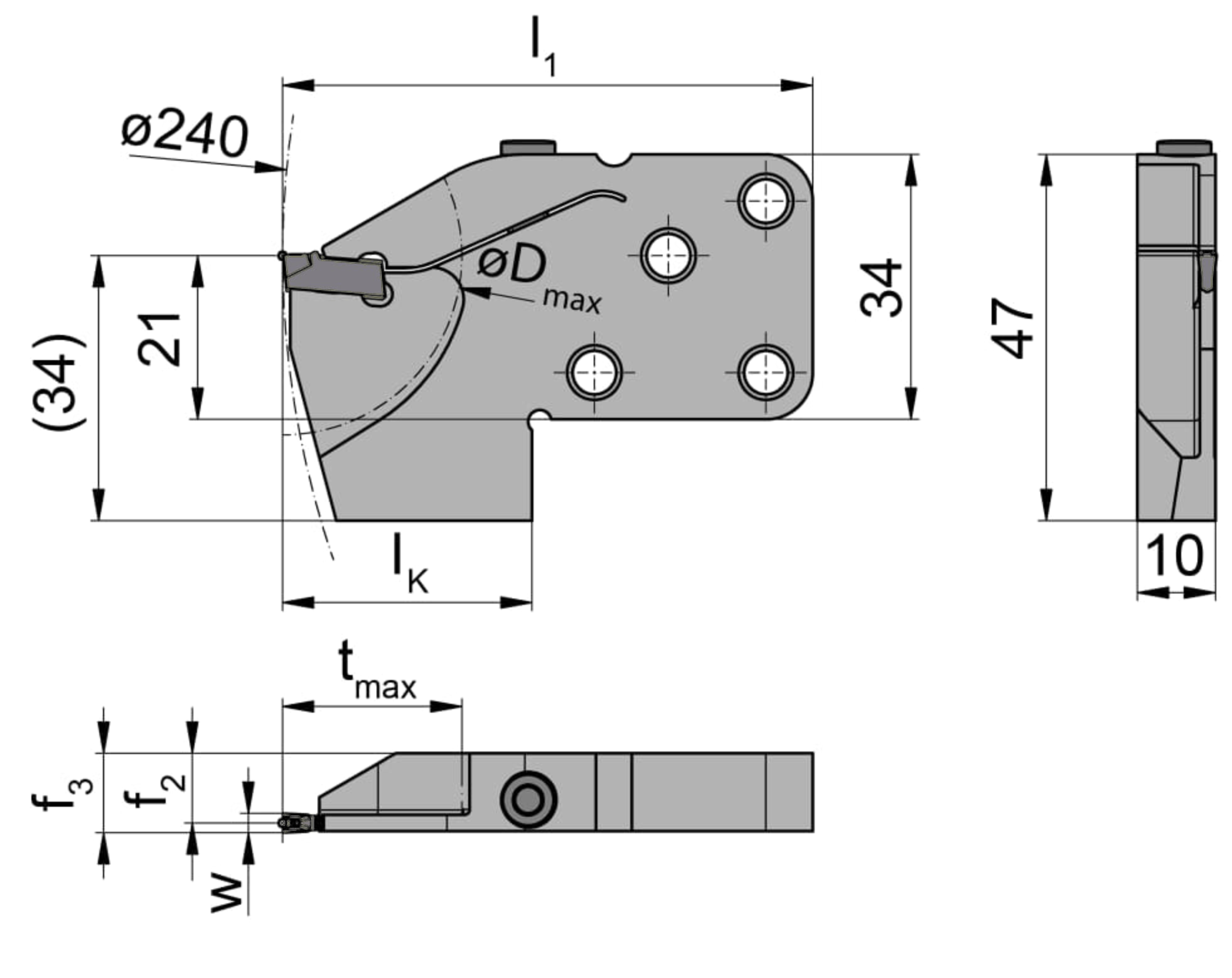

Adjustment dimension of system cassette formula (f3)

f2+w/2

Maximum workpiece diameter (Dmax)

34 mm

Maximum depth of groove (tmax)

17 mm

Length of unit cassette to cutting edge (lK)

32 mm

Total length (including cutting insert) (l1)

68 mm

Adjustment dimension cutting center (f2)

9.6 mm
