RNK101.0845.17.5.712.IK
Cartridge
Part number RNK1010845175712IK

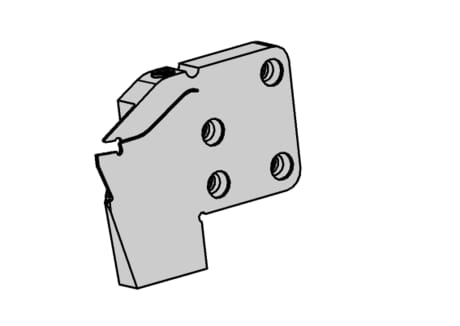

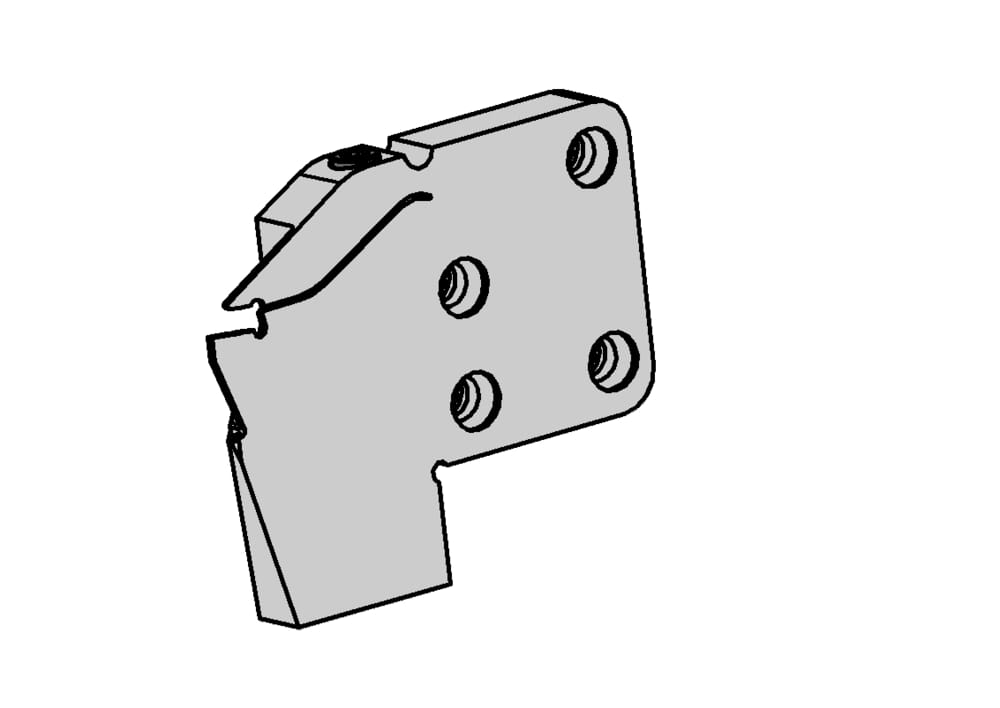

HORN Cartridge RNK101.0845.17.5.712.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04

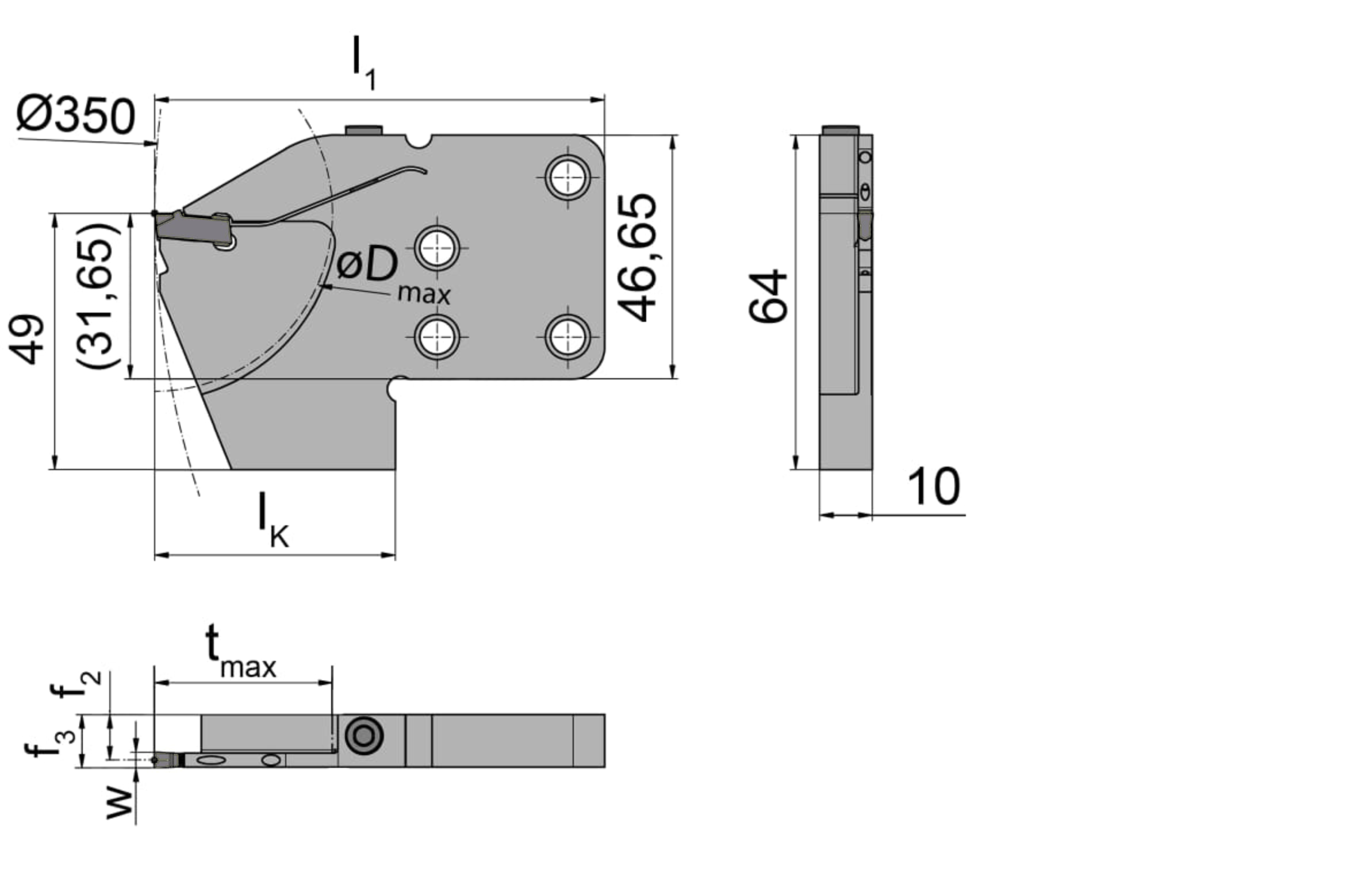

Width of groove (w)
1.2
mm
Katalog_CCTMS
845001;845002
ISO_CCTMS
HORN84500193$$;HORN84500293$$
DIN_CCTMS
HORN-84500193;HORN-84500293
Katalog_CCTWS
10112
DIN_CCTWS
HORN-101120058N
ISO_CCTWS
HORN101120058N$$$$$
Adjustment dimension of system cassette formula (f3)
f2+w/2
Maximum workpiece diameter (Dmax)
34
mm
Maximum depth of groove (tmax)
17
mm
Length of unit cassette to cutting edge (lK)
38
mm
Total length (including cutting insert) (l1)
68
mm
Adjustment dimension cutting center (f2)
9.6
mm
