RNK220.3215.4.04.IK

Cartridge

Part number RNK2203215404IK

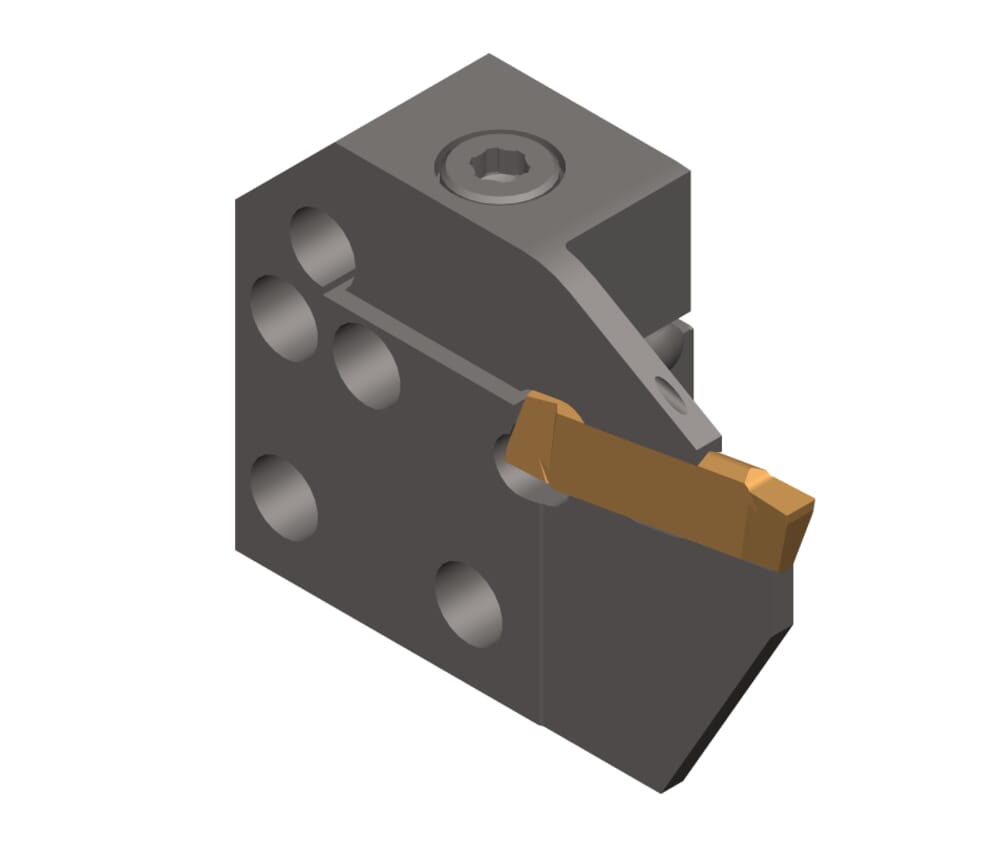

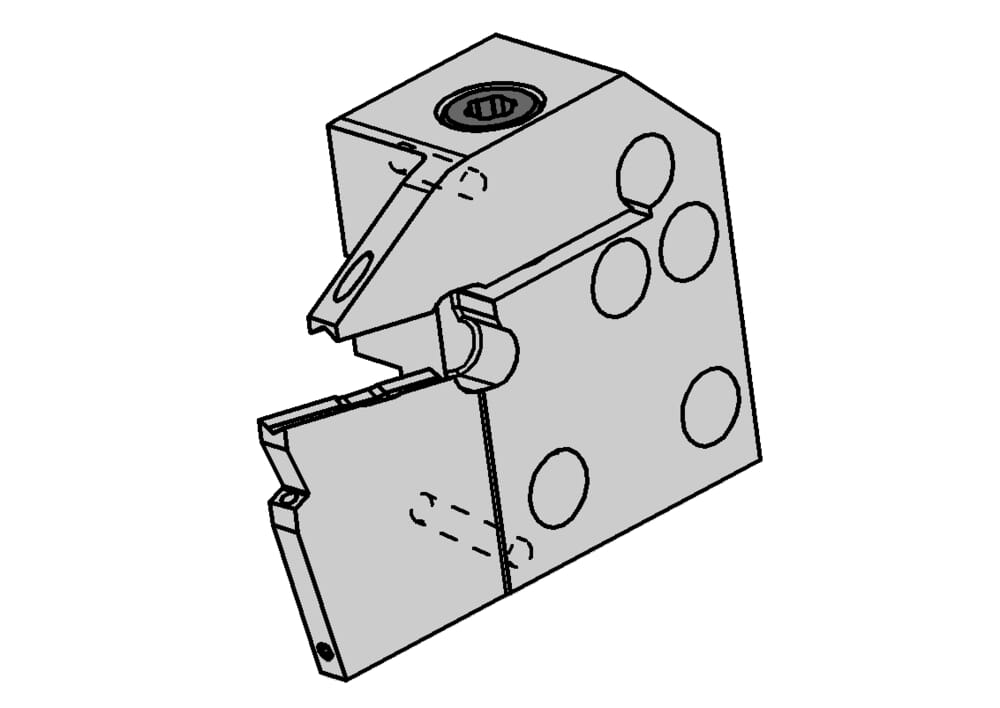

HORN Cartridge RNK220.3215.4.04.IK for Turning

Adjustment dimension of system cassette formula (f3)

f2+w/2

eclass-shortcut

21-18-10-04

Width of groove (w)

4 mm

Katalog_CCTMS

220001

ISO_CCTMS

HORN22000193$$

DIN_CCTMS

HORN-22000193

Katalog_CCTWS

229040

DIN_CCTWS

HORN-229040108N

ISO_CCTWS

HORN229040108N$$$$$

clamping-range-max-met

4.4 mm

clamping-range-min-met

3.8 mm

Maximum depth of groove (tmax)

25 mm

Length of unit cassette to cutting edge (lK)

38 mm

Cassette thickness (b)

16.1 mm

Total length (including cutting insert) (l1)

57 mm

Adjustment dimension cutting center (f2)

14.4 mm
