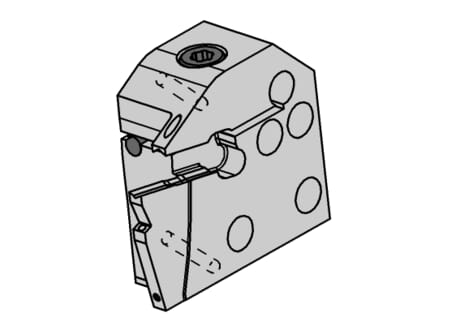

RNK220.3218.4.16.IK
Cartridge
Part number RNK2203218416IK

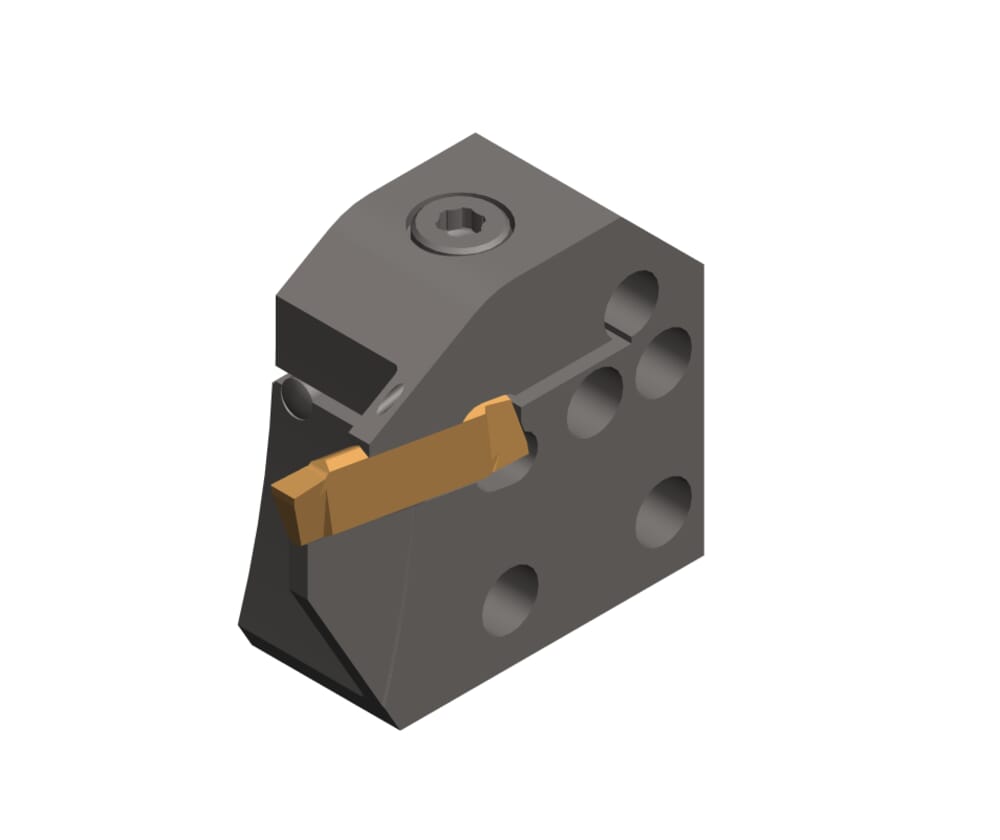

HORN Cartridge RNK220.3218.4.16.IK for Turning
Please note:Technical instructions
clamping-range-max-met
6.09
mm
eclass-shortcut
21-18-10-04

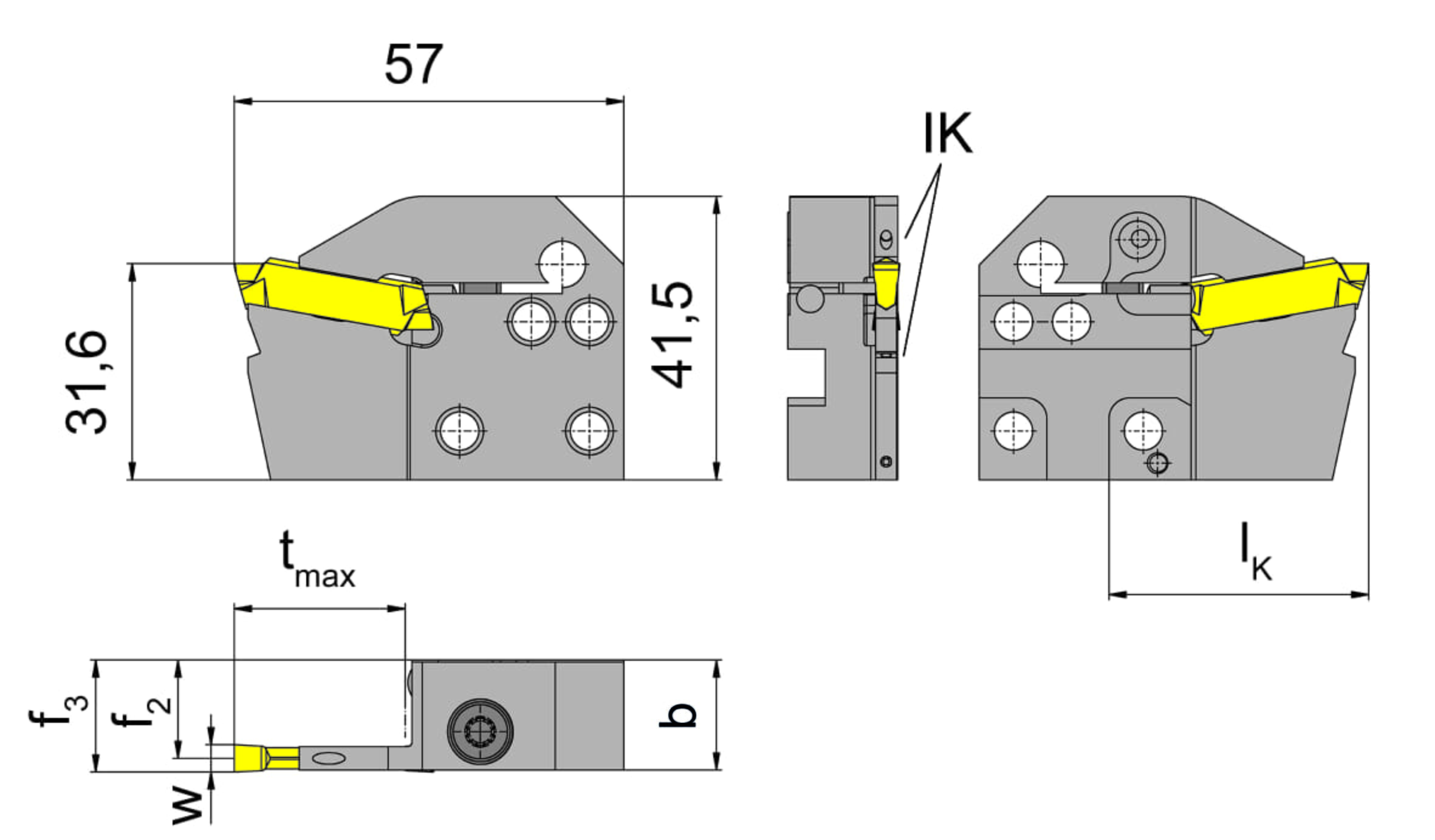

Width of groove (w)
6
mm
Katalog_CCTMS
220001
ISO_CCTMS
HORN22000193$$
DIN_CCTMS
HORN-22000193
Katalog_CCTWS
229060;229061
DIN_CCTWS
HORN-229060108N;HORN-229061108N
ISO_CCTWS
HORN229060108N$$$$$;HORN229061108N$$$$$
Adjustment dimension of system cassette formula (f3)
f2+w/2
clamping-range-min-met
5.1
mm
Maximum workpiece diameter (Dmax)
180
mm
Maximum depth of groove (tmax)
15
mm
Length of unit cassette to cutting edge (lK)
32
mm
Cassette thickness (b)
18.05
mm
Total length (including cutting insert) (l1)
51
mm
Adjustment dimension cutting center (f2)
15.6
mm
