RNK224.0840.1.04
Toolholder
Part number RNK2240840104

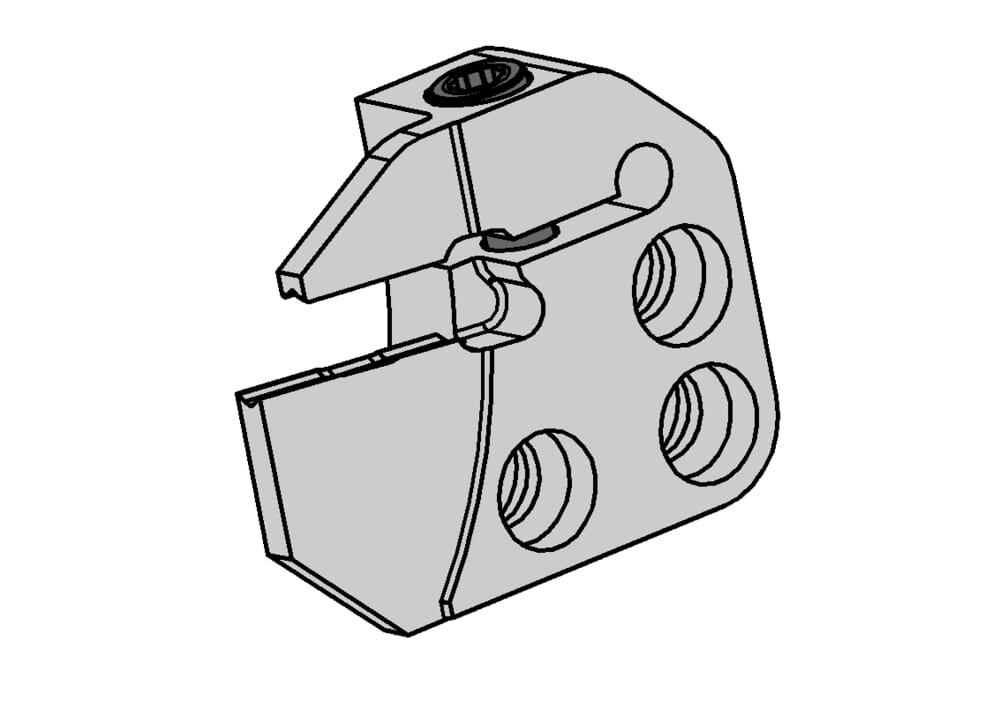

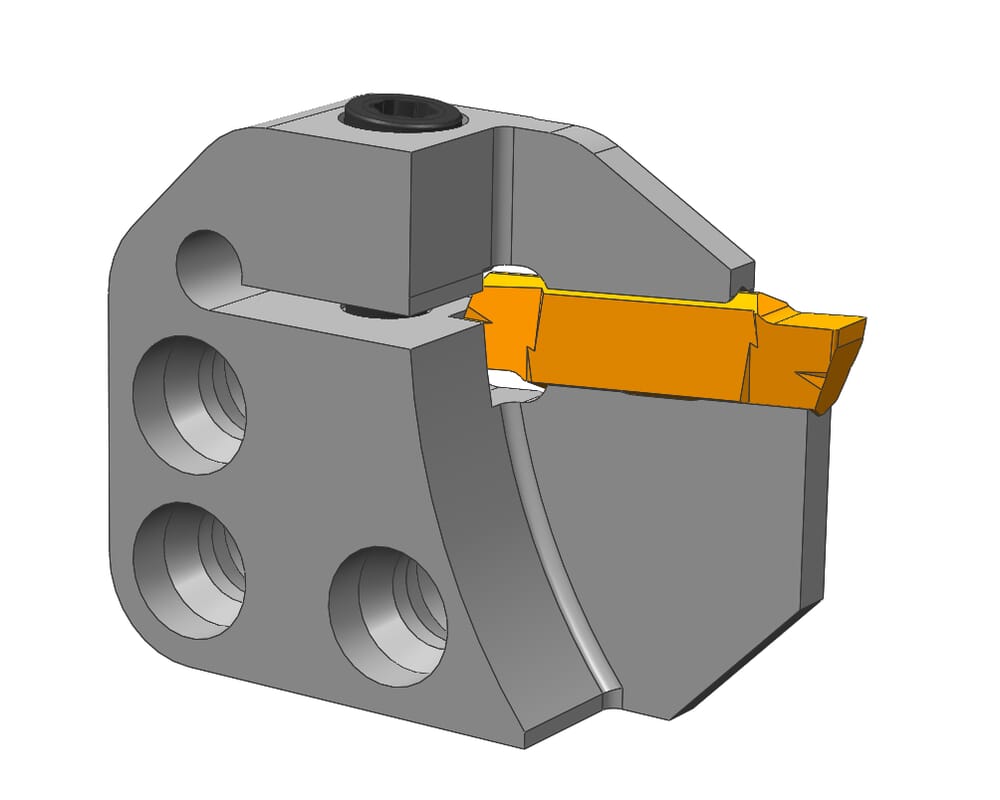

HORN Toolholder RNK224.0840.1.04 for Turning
Please note:Technical instructions

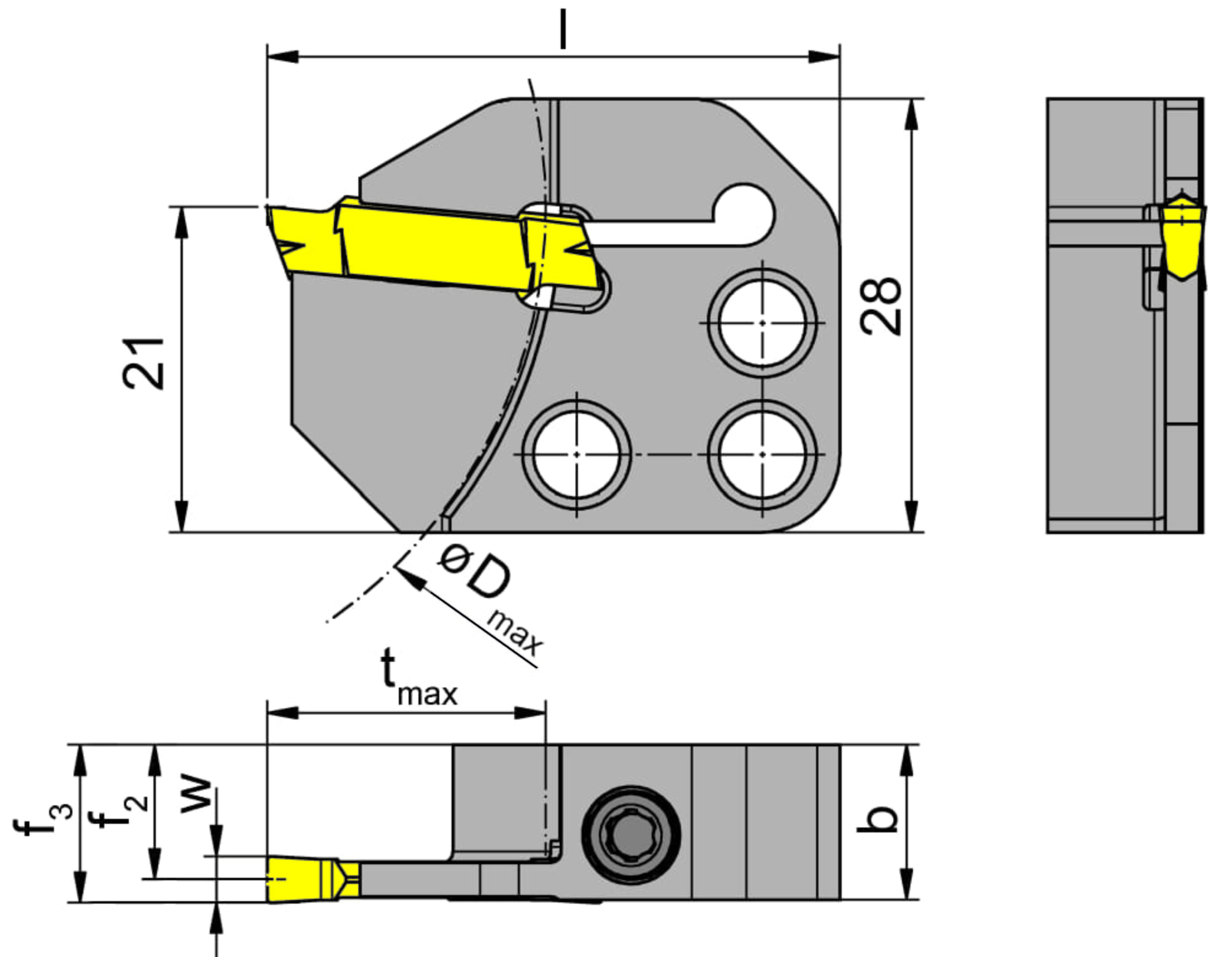

Adjustment dimension of system cassette formula (f3)
f2+w/2
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
Katalog_CCTMS
840001
ISO_CCTMS
HORN84000183$$
DIN_CCTMS
HORN-84000183
Katalog_CCTWS
224048
DIN_CCTWS
HORN-224040058N
ISO_CCTWS
HORN224040058N$$$$$
Clamping range maximum (Spannbereich)
4.4
mm
Clamping range minimum (Spannbereich)
3.7
mm
Maximum workpiece diameter (Dmax)
65
mm
Maximum depth of groove (tmax)
18
mm
Cassette thickness (b)
10
mm
Total length (including cutting insert) (l)
37
mm
Adjustment dimension cutting center (f2)
8.2
mm
