RNK224.0845.18.5.71.IK

Cartridge

Part number RNK224084518571IK

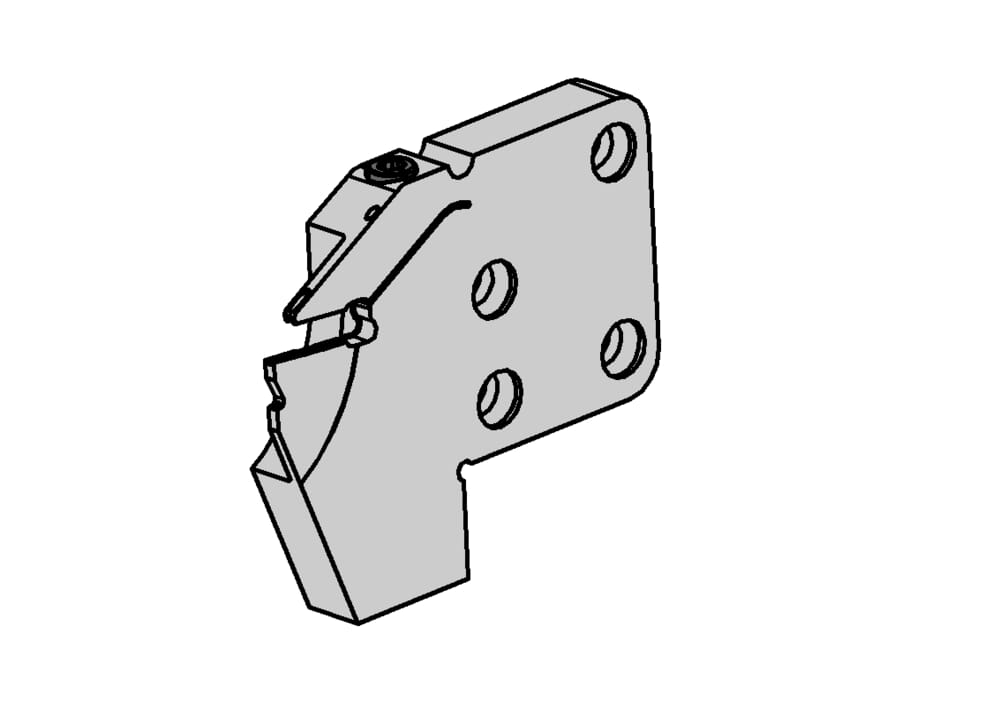

HORN Cartridge RNK224.0845.18.5.71.IK for Turning

eclass-shortcut

21-18-10-04

Width of groove (w)

2 mm

Katalog_CCTMS

845001;845002

ISO_CCTMS

HORN84500193$$;HORN84500293$$

DIN_CCTMS

HORN-84500193;HORN-84500293

Katalog_CCTWS

224018

DIN_CCTWS

HORN-224010058N

ISO_CCTWS

HORN224010058N$$$$$

Adjustment dimension of system cassette formula (f3)

f2+w/2

Maximum workpiece diameter (Dmax)

54 mm

Maximum depth of groove (tmax)

18 mm

Length of unit cassette to cutting edge (lK)

38 mm

Total length (including cutting insert) (l1)

78 mm

Adjustment dimension cutting center (f2)

9.2 mm
