RNK264.0840.1.03
Toolholder
Part number RNK2640840103
HORN Toolholder RNK264.0840.1.03 for Turning
Please note:Technical instructions

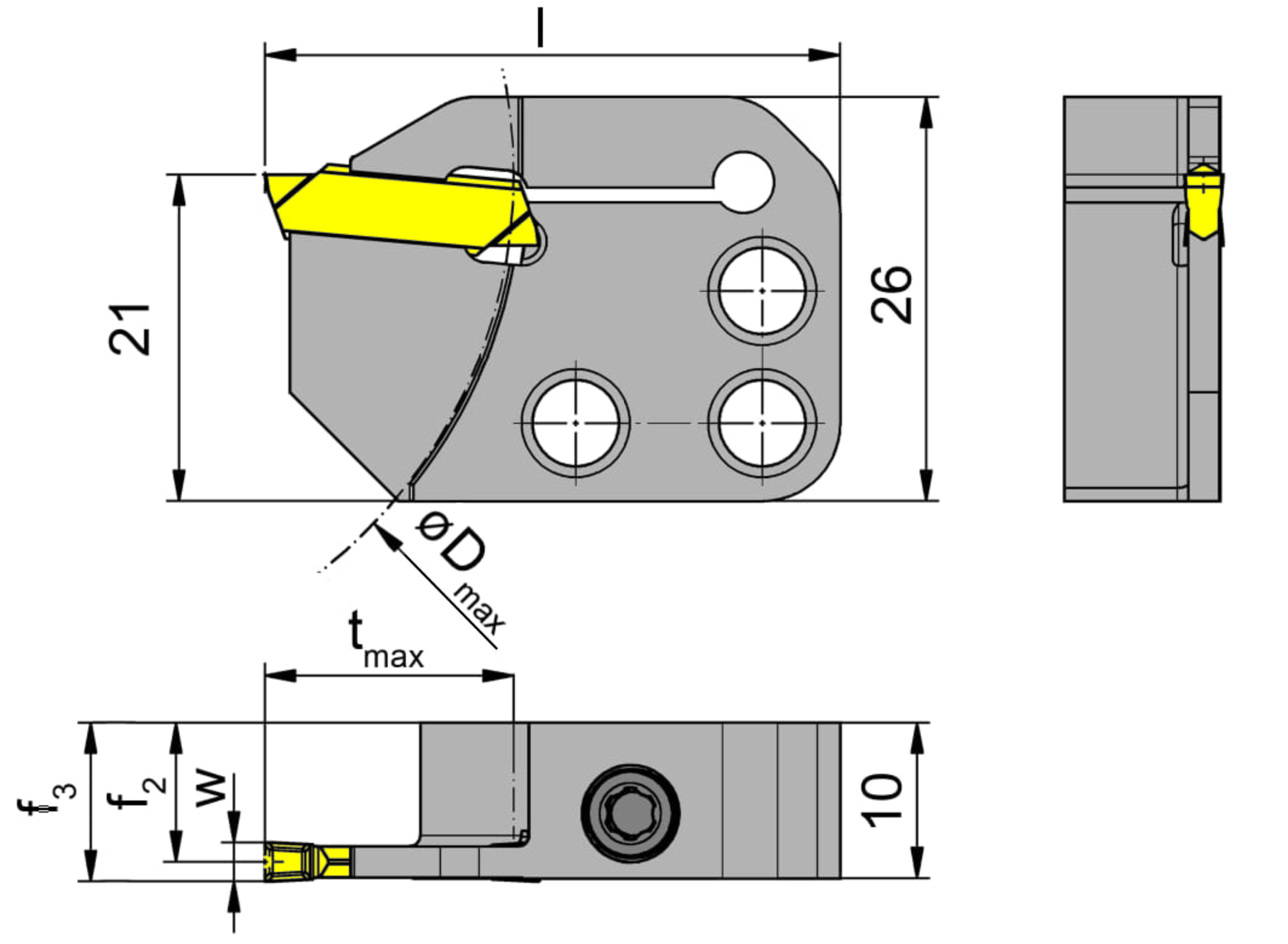

Adjustment dimension of system cassette formula (f3)
f2+ w/2
eclass-shortcut
21-18-10-04
cutting-width-met
2.5
mm
Katalog_CCTMS
840001
ISO_CCTMS
HORN84000183$$
DIN_CCTMS
HORN-84000183
Katalog_CCTWS
26403
DIN_CCTWS
HORN-264030058N
ISO_CCTWS
HORN264030058N$$$$$
Clamping range maximum (Spannbereich)
2.5
mm
Clamping range minimum (Spannbereich)
2.5
mm
Maximum workpiece diameter (Dmax)
65
mm
Maximum depth of groove (tmax)
16
mm
Total length (including cutting insert) (l)
37
mm
Adjustment dimension cutting center (f2)
10.2
mm
| Downloads | |
|---|---|
| RNK2640840103.DXF | Download |
| RNK264_0840_1_03.STP | Download |
| Download all files | |
