RNK264.0840.1.04
Toolholder
Part number RNK2640840104

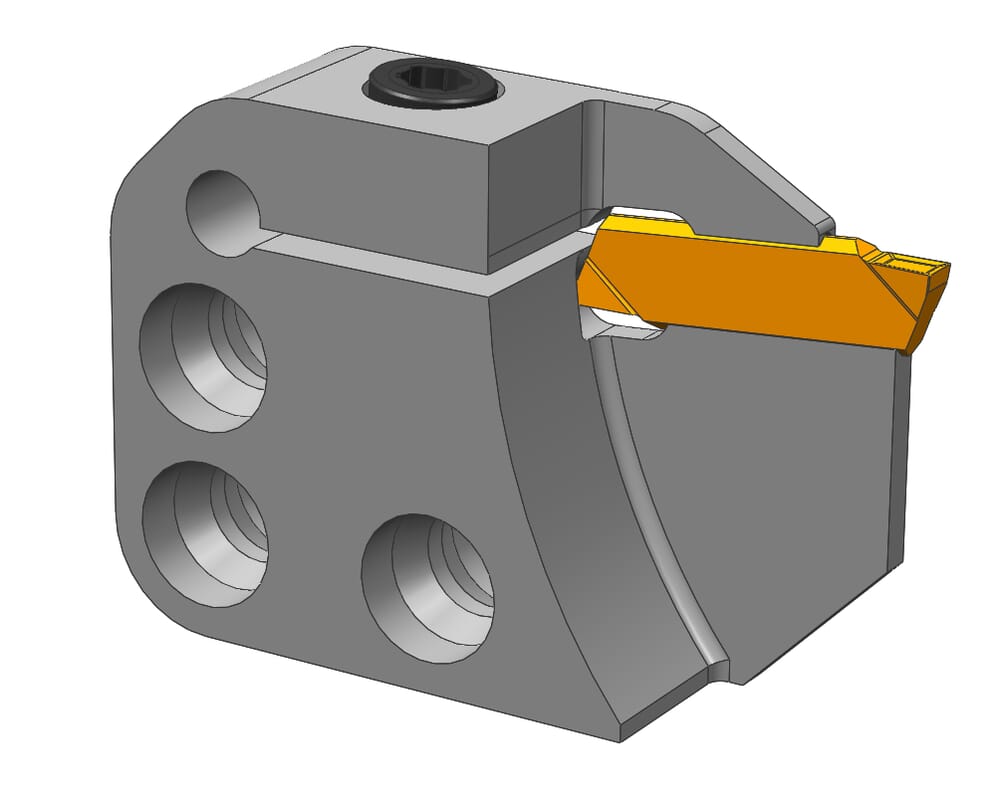

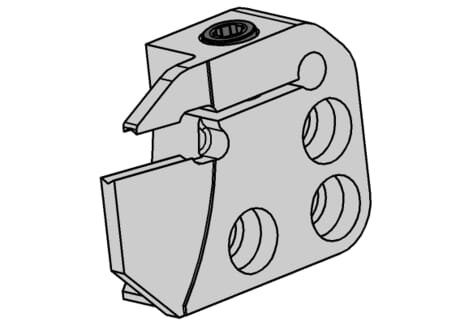

HORN Toolholder RNK264.0840.1.04 for Turning
Please note:Technical instructions

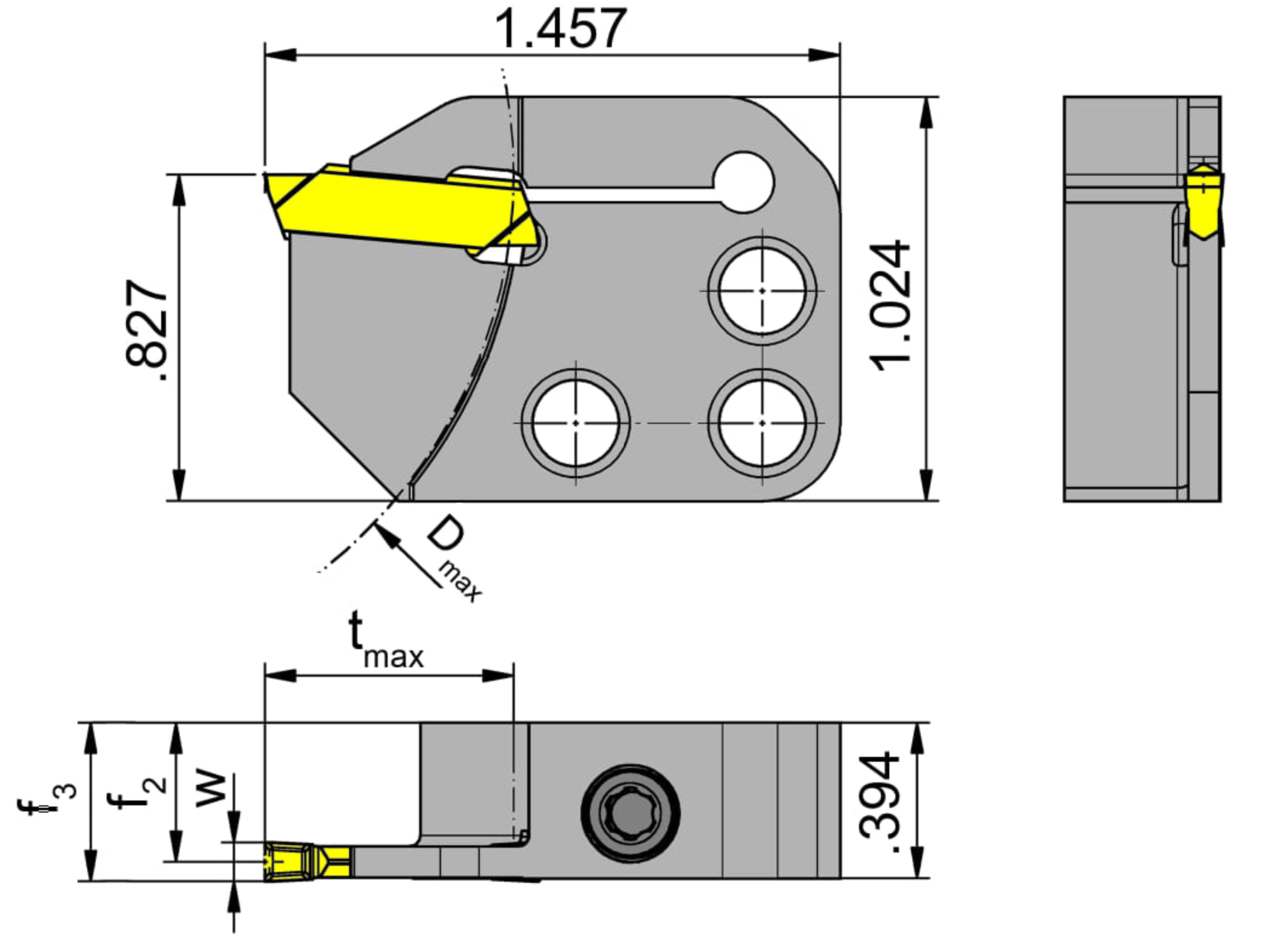

Adjustment dimension of system cassette formula (f3)
f2+ w/2
eclass-shortcut
21-18-10-04
cutting-width-met
3
mm
Katalog_CCTMS
840001
ISO_CCTMS
HORN84000183$$
DIN_CCTMS
HORN-84000183
Katalog_CCTWS
26404
DIN_CCTWS
HORN-264040058N
ISO_CCTWS
HORN264040058N$$$$$
Clamping range maximum (Spannbereich)
3
mm
Clamping range minimum (Spannbereich)
3
mm
Maximum workpiece diameter (Dmax)
65
mm
Maximum depth of groove (tmax)
16
mm
Total length (including cutting insert) (l)
37
mm
Adjustment dimension cutting center (f2)
10.2
mm
