RNK274.0220.4.04.IK
Cartridge
Part number RNK2740220404IK

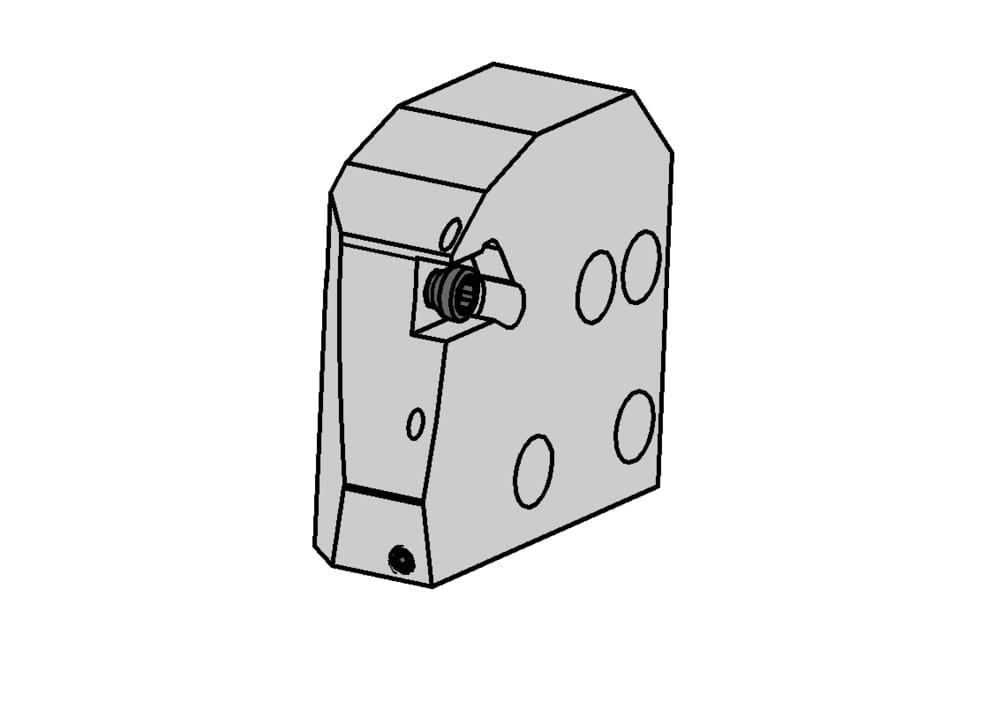

HORN Cartridge RNK274.0220.4.04.IK for Turning
Please note:Technical instructions

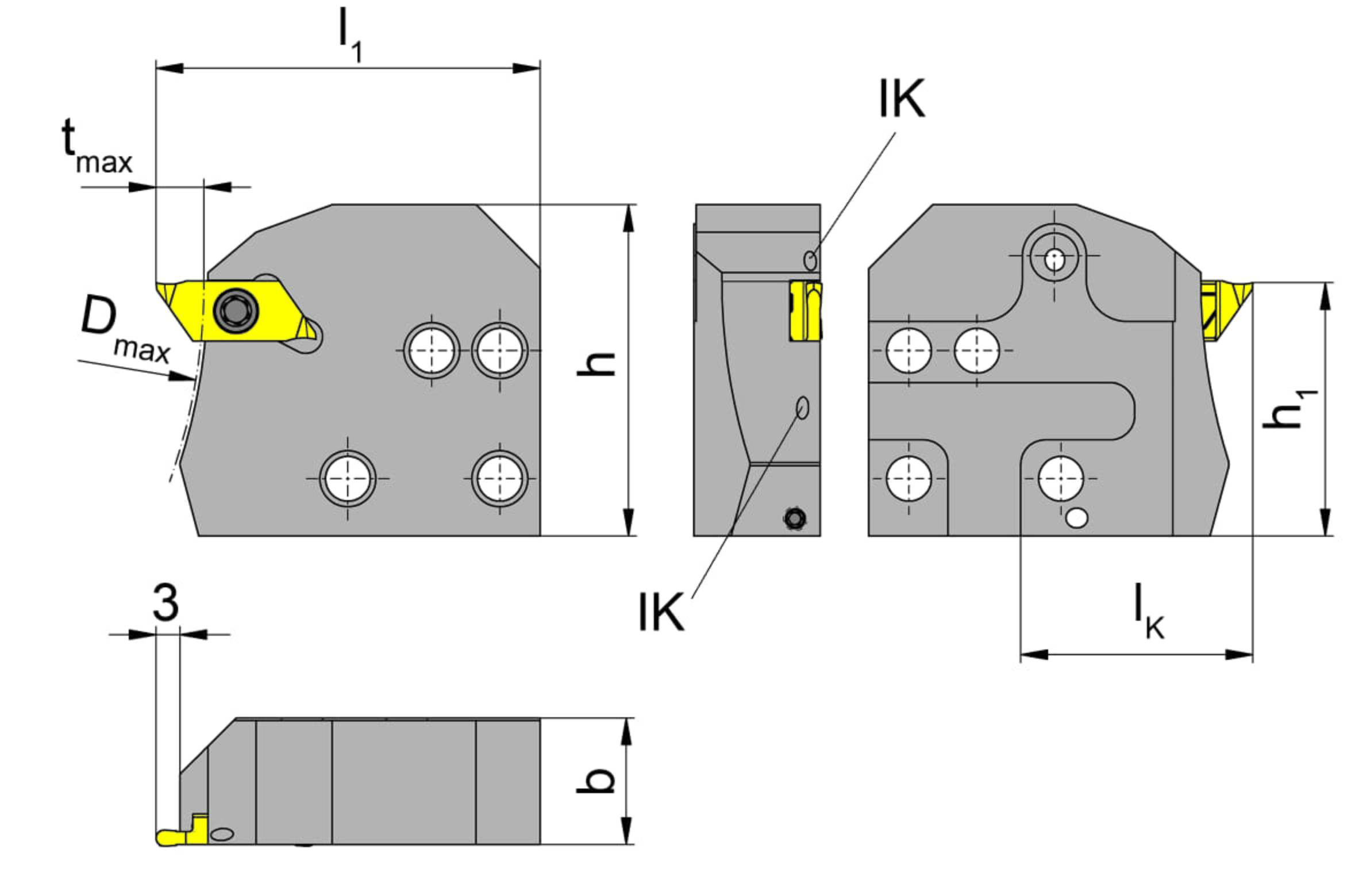

Peak height (h1)
31.65
mm
eclass-shortcut
21-02-90-90
Katalog_CCTMS
220001
ISO_CCTMS
HORN22000193$$
DIN_CCTMS
HORN-22000193
Katalog_CCTWS
274040R
DIN_CCTWS
HORN-274040000R
ISO_CCTWS
HORN274040000R$$$$$
Clamping range maximum (Spannbereich)
4
mm
Clamping range minimum (Spannbereich)
4
mm
Maximum workpiece diameter (Dmax)
150
mm
Maximum depth of groove (tmax)
6
mm
Length of unit cassette to cutting edge (lK)
29
mm
Cassette thickness (b)
15.8
mm
Height (h)
41.4
mm
Total length (including cutting insert) (l1)
48
mm
Adjustment dimension of system cassette (f2)
16
mm
| Downloads | |
|---|---|
| RNK2740220404IK_20211124_211209617.DXF | Download |
| RNK2740220404IK_20230116_090629782.STP | Download |
| Download all files | |
