RNK274.0840.1.04

Toolholder

Part number RNK2740840104

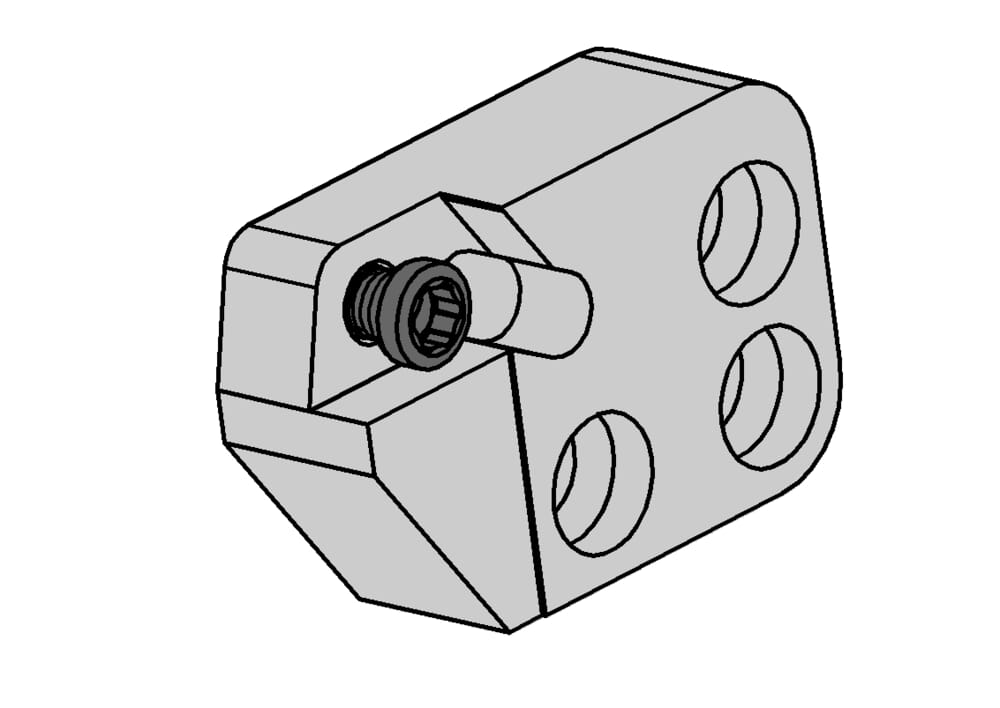

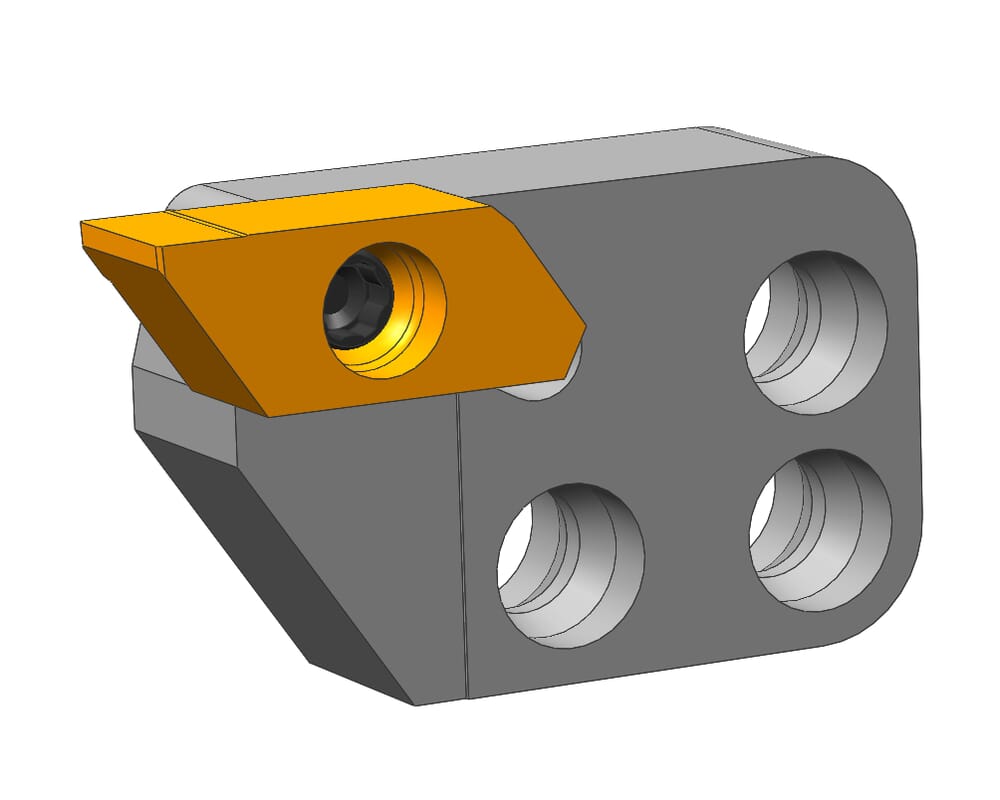

HORN Toolholder RNK274.0840.1.04 for Turning

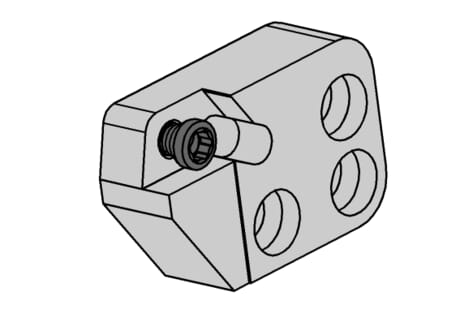

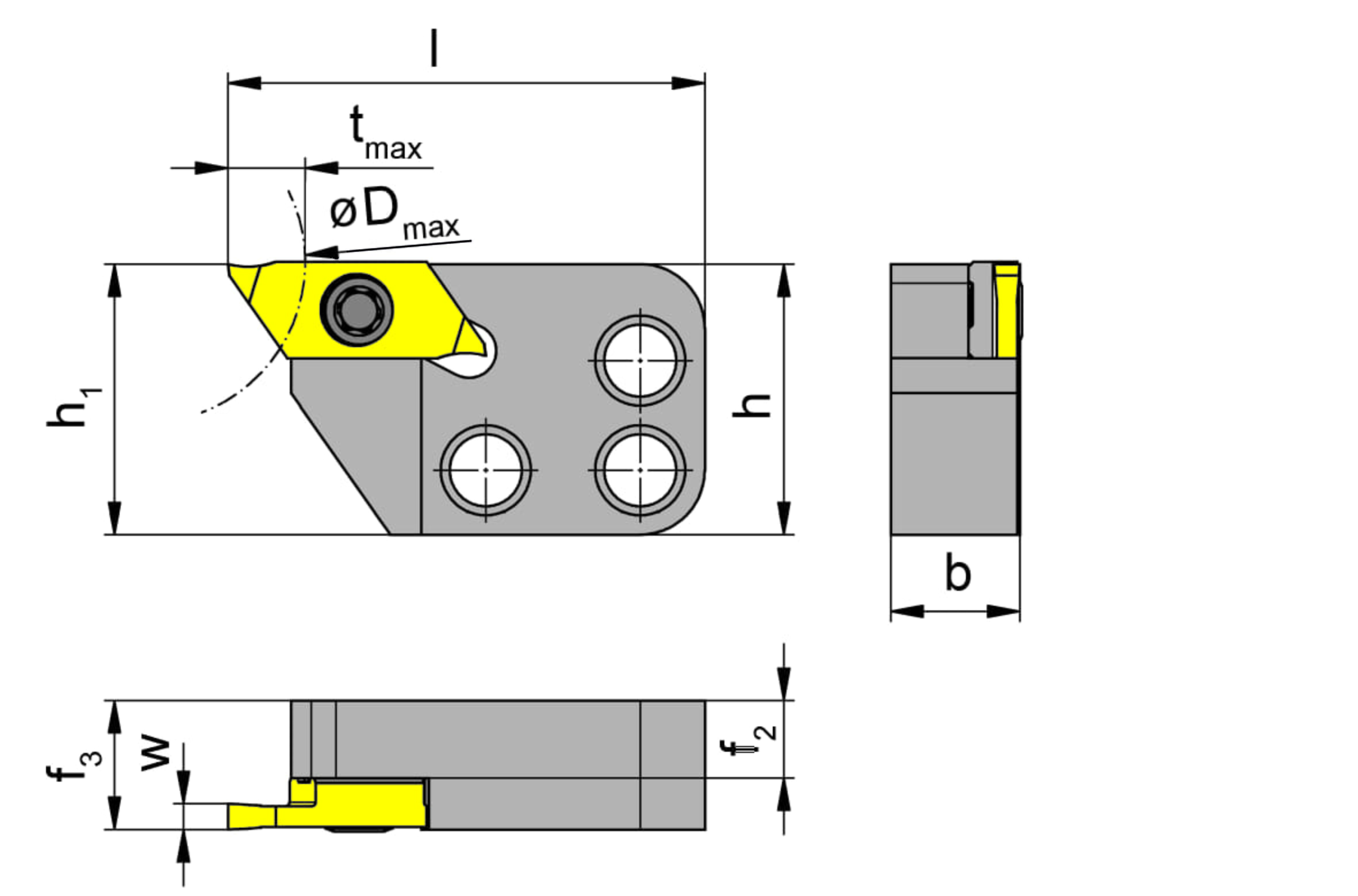

Adjustment dimension of system cassette formula (f3)

f2+w

eclass-shortcut

21-18-10-04

plating-seat-size

Katalog_CCTMS

840001;840002

ISO_CCTMS

HORN84000183$$;HORN84000283$$

DIN_CCTMS

HORN-84000183;HORN-84000283

Katalog_CCTWS

274040R

DIN_CCTWS

HORN-274040000R

ISO_CCTWS

HORN274040000R$$$$$

Adjustment dimension locating face insert (f2)

6 mm

Clamping range maximum (Spannbereich)

4 mm

Clamping range minimum (Spannbereich)

0.5 mm

peak-height-met

21 mm

Maximum workpiece diameter (Dmax)

25 mm

Maximum depth of groove (tmax)

6 mm

Cassette thickness (b)

10 mm

height-met

21 mm

Total length (including cutting insert) (l)

37 mm
