RNK316.0220.4.05.IK

Cartridge

Part number RNK3160220405IK

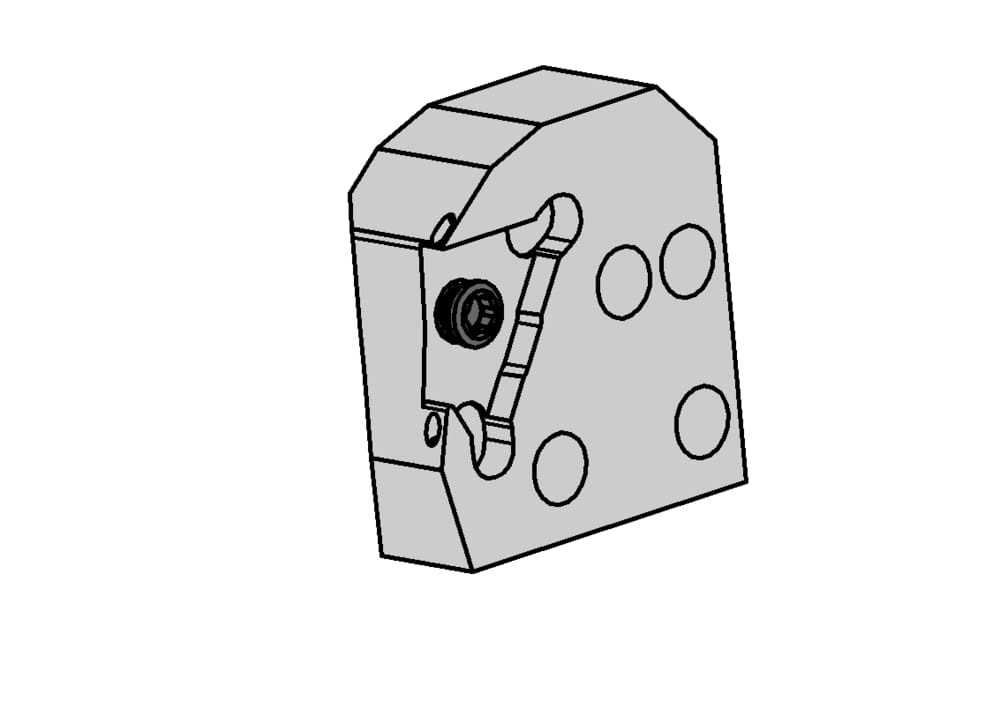

HORN Cartridge RNK316.0220.4.05.IK for Turning

Adjustment dimension of system cassette formula (f3)

f3=f2

eclass-shortcut

21-02-90-90

Plating seat size (Größe)

Katalog_CCTMS

220001

ISO_CCTMS

HORN22000193$$

DIN_CCTMS

HORN-22000193

Katalog_CCTWS

31605R

DIN_CCTWS

HORN-31605000R

ISO_CCTWS

HORN31605$000R$$$$$

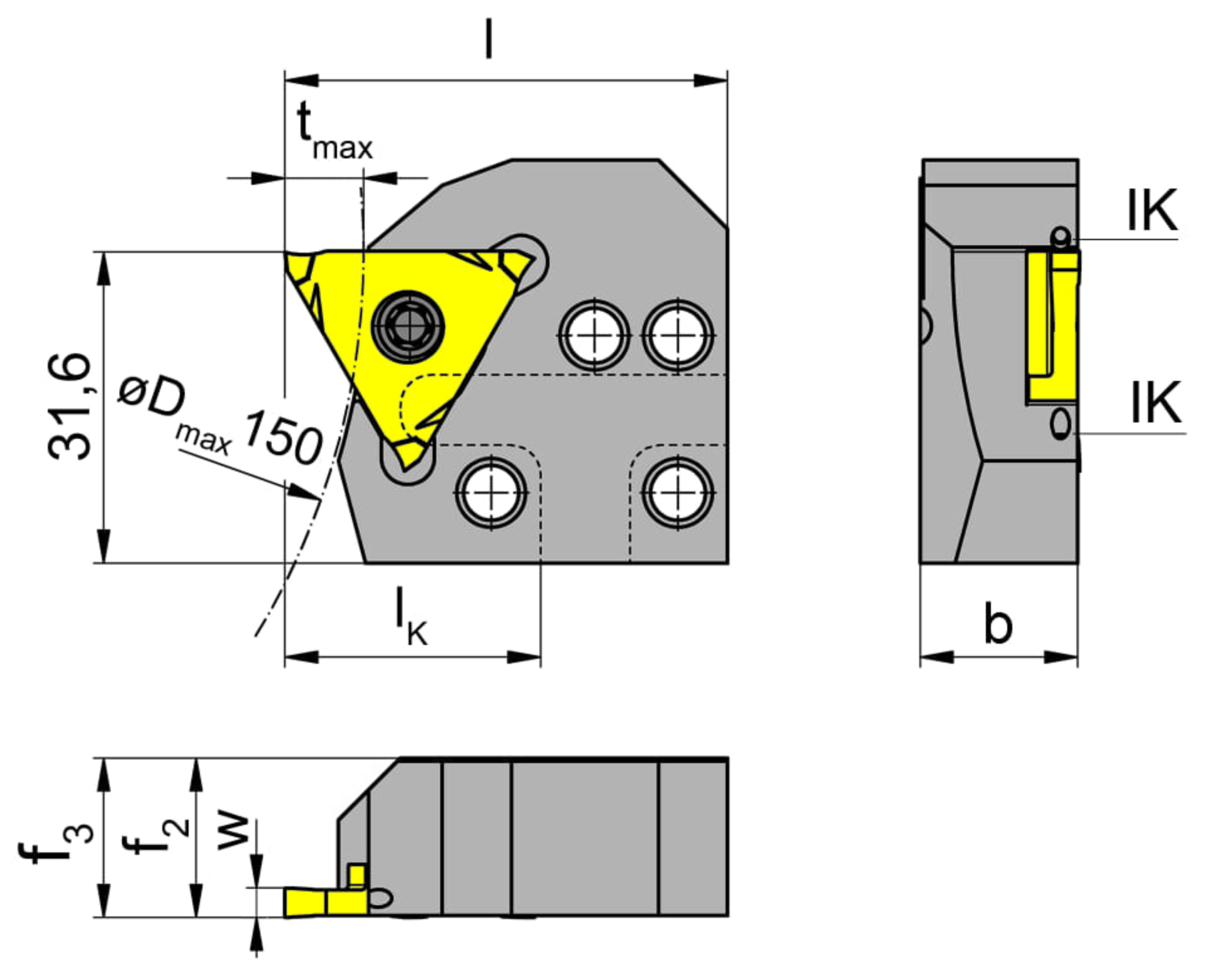

Maximum workpiece diameter (Dmax)

150 mm

Maximum depth of groove (tmax)

8 mm

Length of unit cassette to cutting edge (lK)

26 mm

Cassette thickness (b)

16 mm

Total length (including cutting insert) (l)

45 mm

Adjustment dimension cutting center (f2)

16.2 mm
