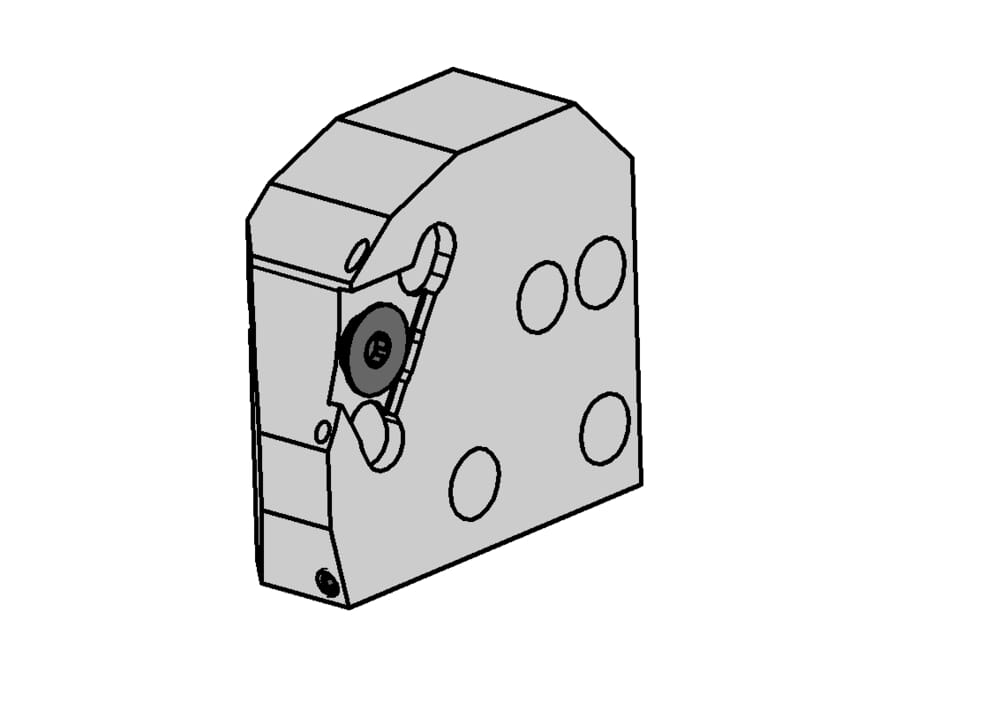

RNK34T.0220.4.20.IK
Cartridge
Part number RNK34T0220420IK
HORN Cartridge RNK34T.0220.4.20.IK for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
3
mm
Plating seat size (Größe)
2
Katalog_CCTMS
220001
ISO_CCTMS
HORN22000193$$
DIN_CCTMS
HORN-22000193
Katalog_CCTWS
34T02N
DIN_CCTWS
HORN-34T024N
ISO_CCTWS
HORN34T02$$$$N$$$$$

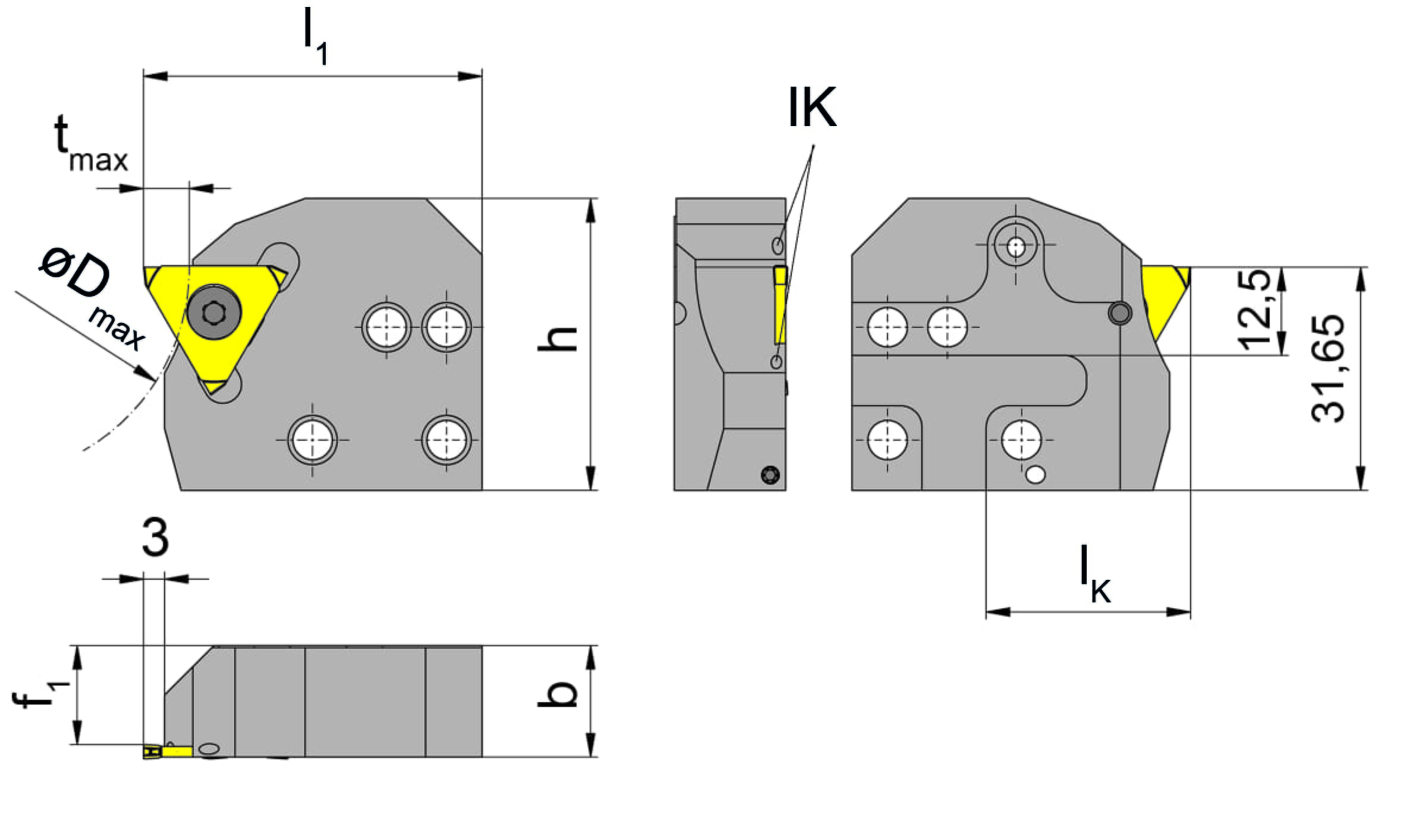

Adjustment dimension locating face insert (f1)
13.3
mm
Adjustment dimension of system cassette formula (f)
f1+w+a1
Clamping range minimum (Spannbereich)
2.01
mm
Maximum workpiece diameter (Dmax)
60
mm
Maximum depth of groove (tmax)
6.5
mm
Length of unit cassette to cutting edge (lK)
29
mm
Cassette thickness (b)
15.8
mm
Height (h)
41.4
mm
Total length (including cutting insert) (l1)
48
mm
