RNK356.0220.05.IK
Toolholder
Part number RNK356022005IK

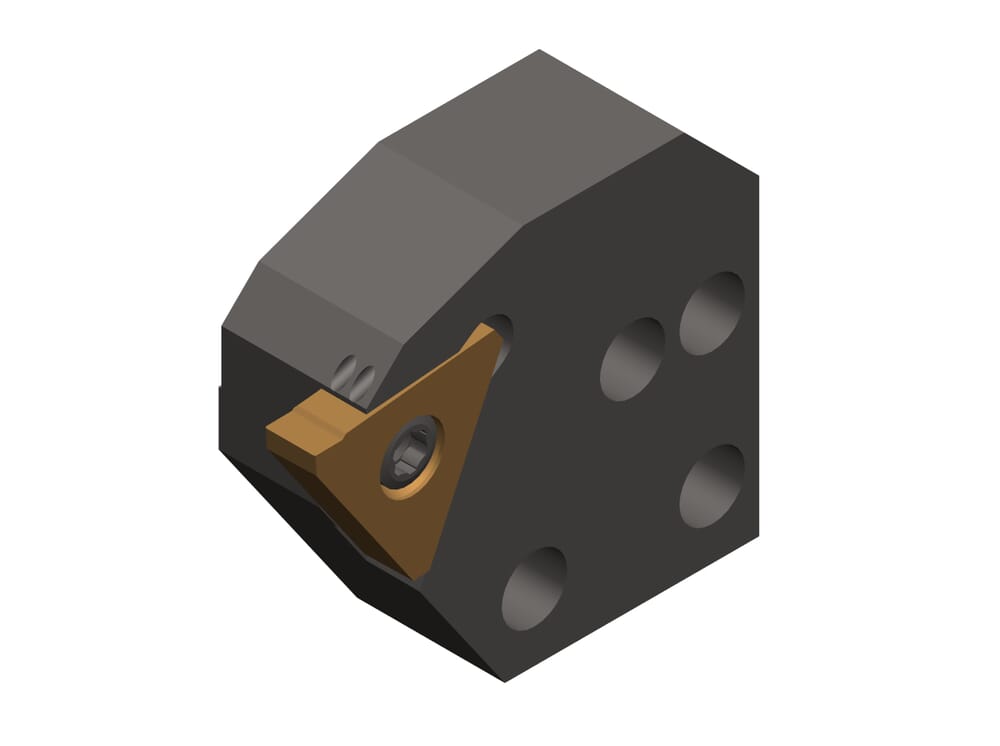

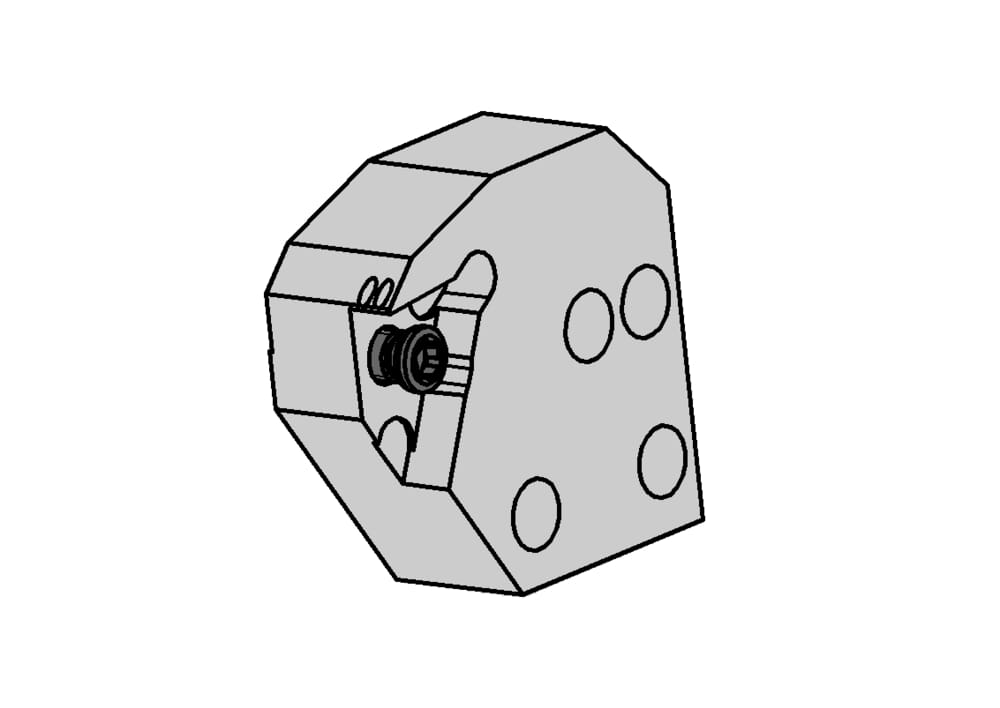

HORN Toolholder RNK356.0220.05.IK for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
5
Katalog_CCTMS
220001
ISO_CCTMS
HORN22000193$$
DIN_CCTMS
HORN-22000193
Katalog_CCTWS
31505R
DIN_CCTWS
HORN-31505051R
ISO_CCTWS
HORN31505$051R$$$$$

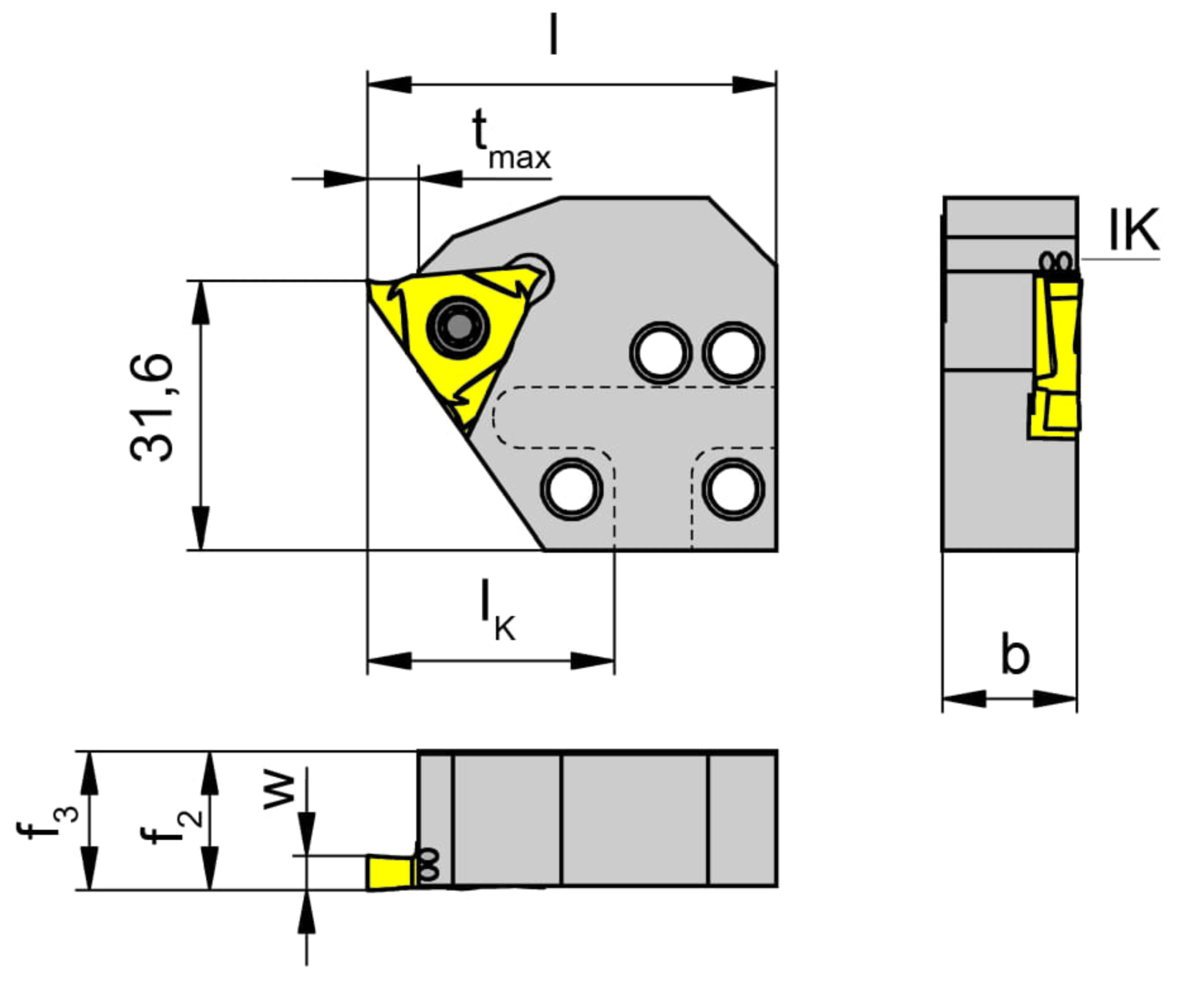

Adjustment dimension of system cassette formula (f3)
f3=f2
Maximum depth of groove (tmax)
5
mm
Length of unit cassette to cutting edge (lK)
29
mm
Cassette thickness (b)
15.8
mm
Total length (including cutting insert) (l)
48
mm
Adjustment dimension cutting center (f2)
16.3
mm
