RNK356.0220.S.4.03.IK

Cartridge

Part number RNK3560220S403IK

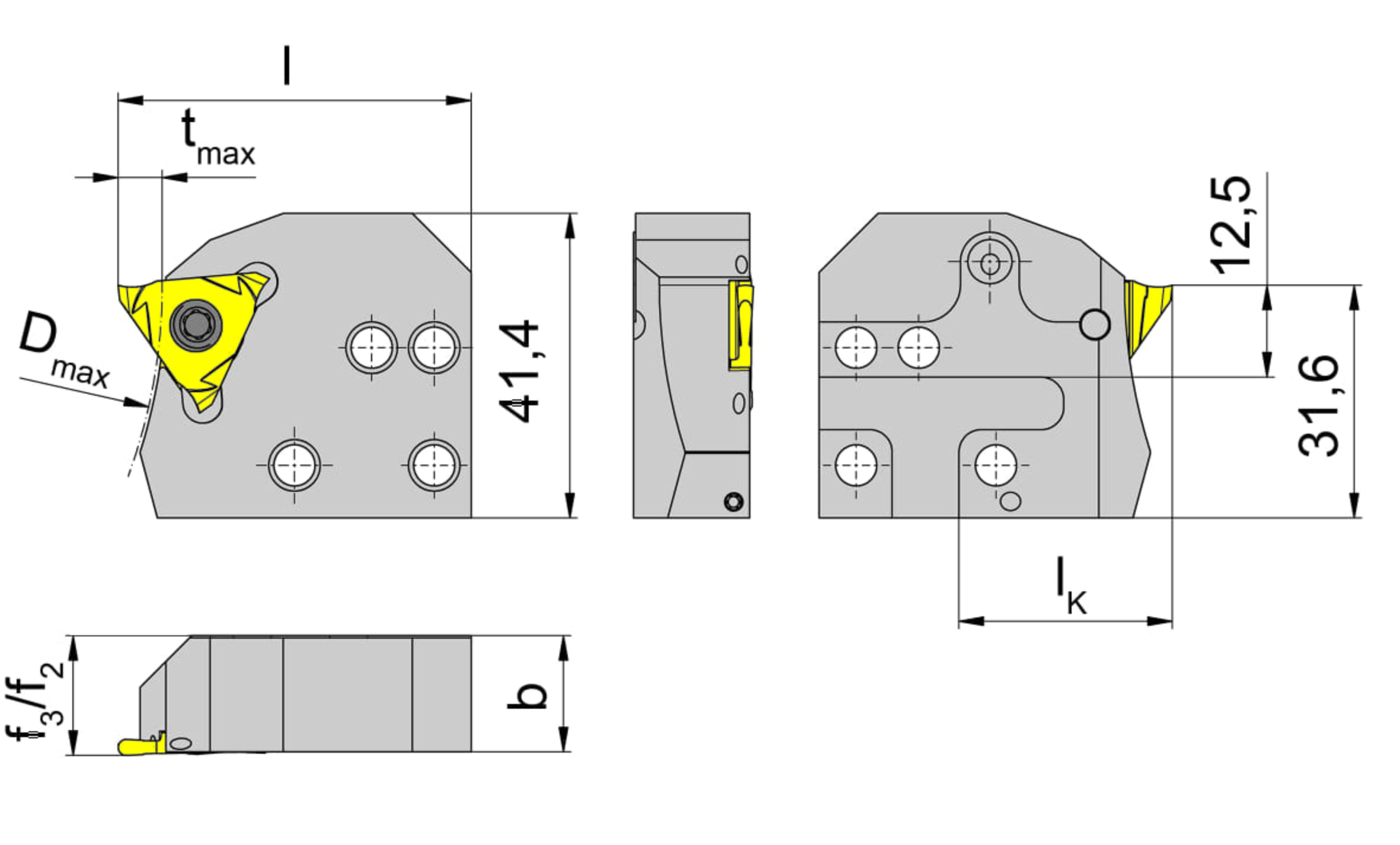

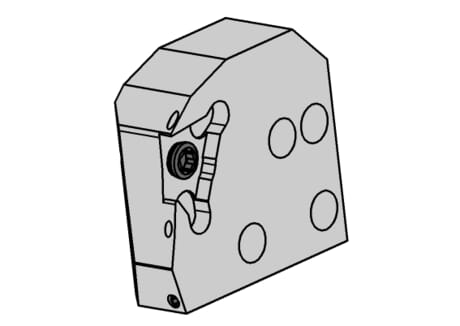

HORN Cartridge RNK356.0220.S.4.03.IK for Turning

Adjustment dimension of system cassette formula (f3)

f3=f2

eclass-shortcut

21-18-10-04

plating-seat-size

Katalog_CCTMS

220001

ISO_CCTMS

HORN22000193$$

DIN_CCTMS

HORN-22000193

Katalog_CCTWS

S31503R

DIN_CCTWS

HORN-S31503051R

ISO_CCTWS

HORNS31503051R$$$$$

Maximum workpiece diameter (Dmax)

150 mm

Maximum depth of groove (tmax)

6 mm

Length of unit cassette to cutting edge (lK)

29 mm

Cassette thickness (b)

15.8 mm

Total length (including cutting insert) (l)

48 mm

Adjustment dimension cutting center (f2)

16.1 mm
