RNK356.0840.1.07
Toolholder
Part number RNK3560840107

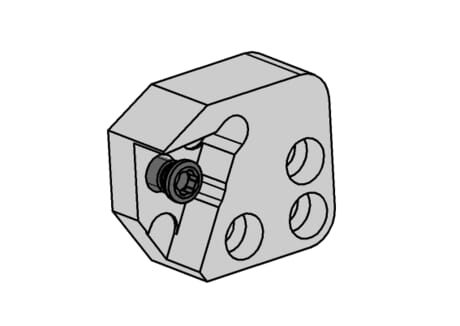

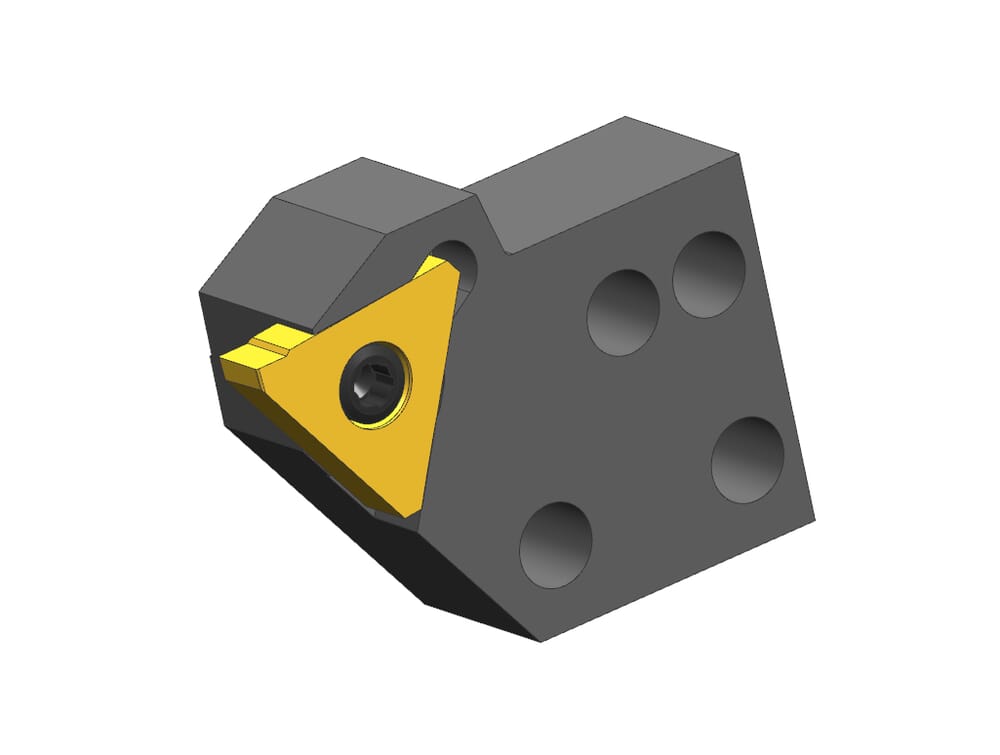

HORN Toolholder RNK356.0840.1.07 for Turning
Please note:Technical instructions
Adjustment dimension locating face insert (f2)
6
mm
eclass-shortcut
21-18-10-04
cutting-width-min-met
6.6
mm
cutting-width-max-met
7.5
mm
Katalog_CCTMS
840001
ISO_CCTMS
HORN84000183$$
DIN_CCTMS
HORN-84000183
Katalog_CCTWS
31507L
DIN_CCTWS
HORN-31507051L
ISO_CCTWS
HORN31507$051L$$$$$
Adjustment dimension of system cassette formula (f3)
f2+w
Clamping range maximum (Spannbereich)
7.5
mm
Clamping range minimum (Spannbereich)
6.6
mm
Maximum depth of groove (tmax)
5
mm
Cassette thickness (b)
13
mm
Height (h)
27
mm
Total length (including cutting insert) (l)
37
mm
