RNK356.0850.4.25.IK
Cartridge
Part number RNK3560850425IK

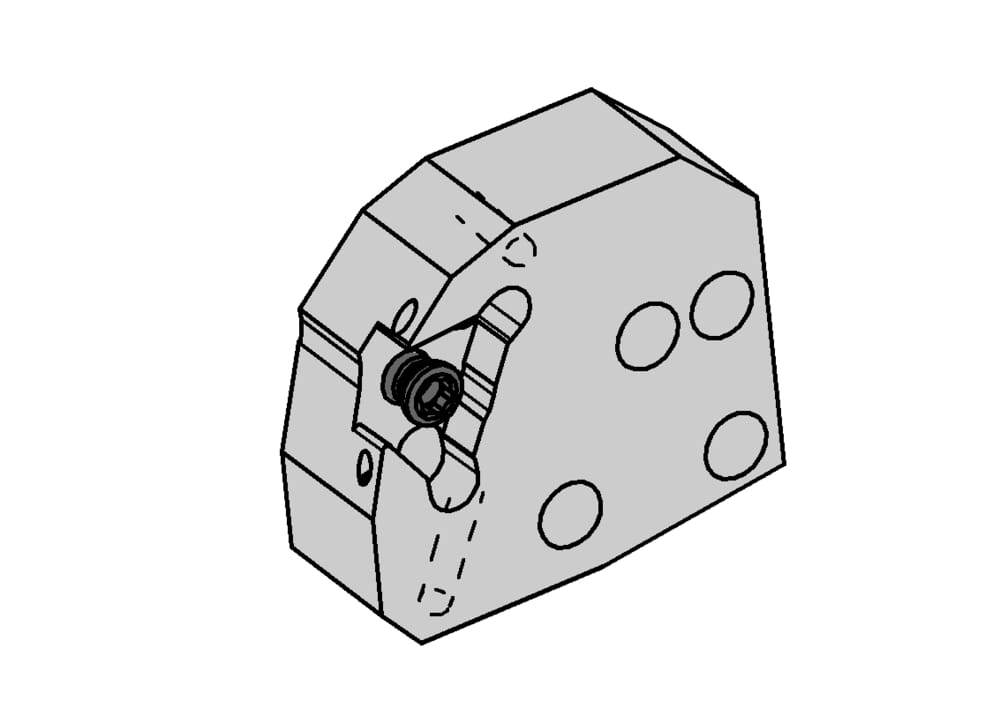

HORN Cartridge RNK356.0850.4.25.IK for Turning
Please note:Technical instructions
Maximum workpiece diameter (Dmax)
185
mm
Katalog_CCTMS
220001
ISO_CCTMS
HORN22000193$$
DIN_CCTMS
HORN-22000193
Katalog_CCTWS
31505R
DIN_CCTWS
HORN-31507051R
ISO_CCTWS
HORN31507$051R$$$$$

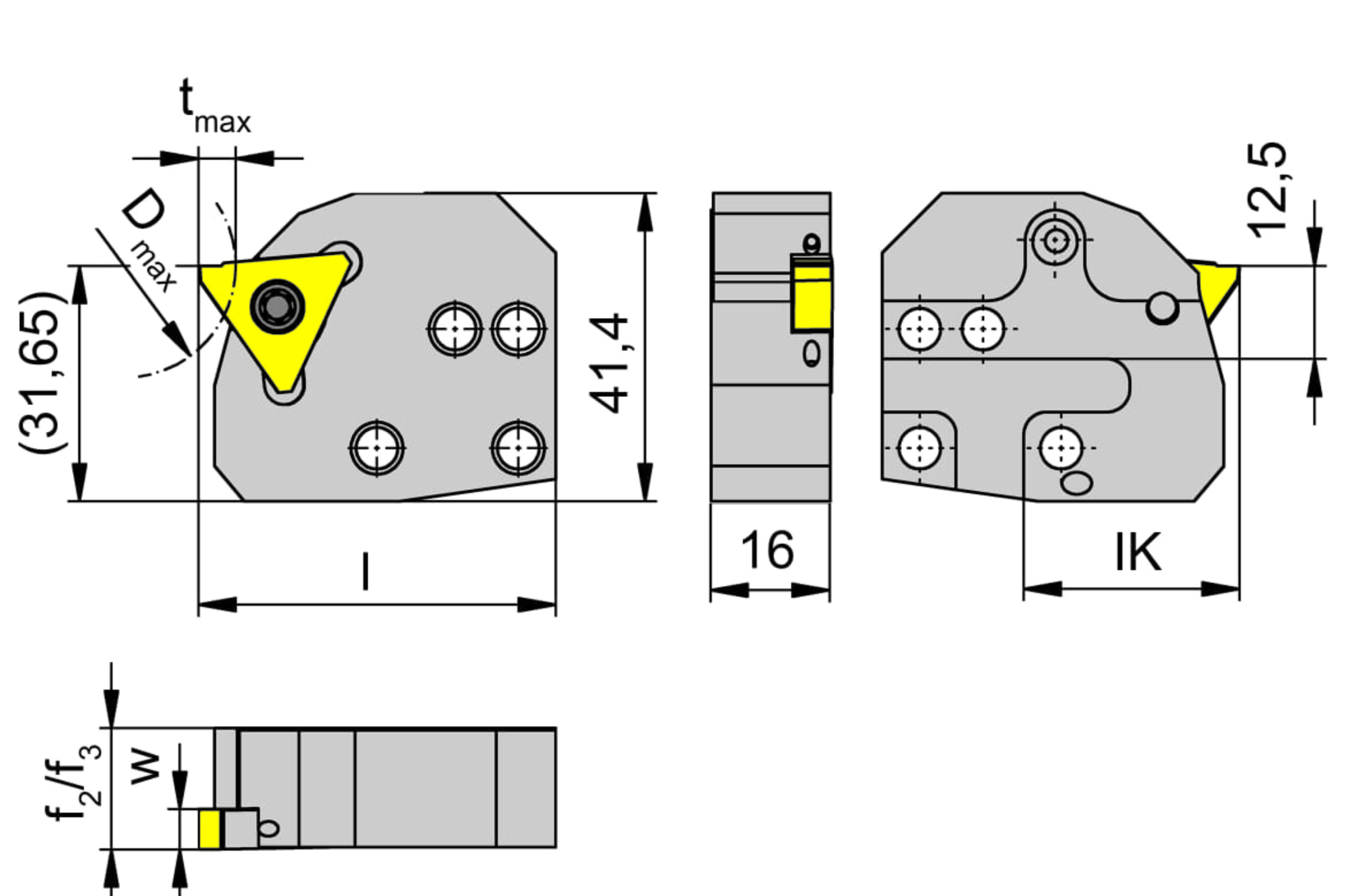

Adjustment dimension of system cassette formula (f3)
f3=f2
Maximum depth of groove (tmax)
5
mm
Length of unit cassette to cutting edge (lK)
29
mm
Total length with cutting edge (l)
48
mm
Adjustment dimension of system cassette (f2)
16.3
mm
