RNK360.0840.1.01

Toolholder

Part number RNK3600840101

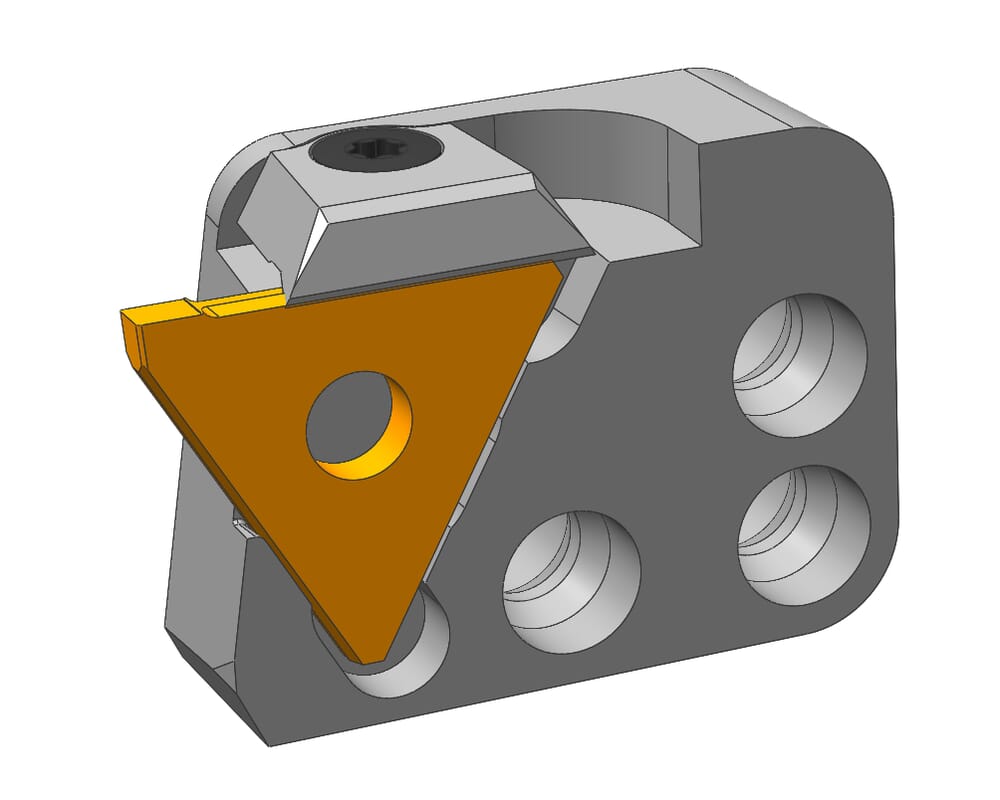

HORN Toolholder RNK360.0840.1.01 for Turning

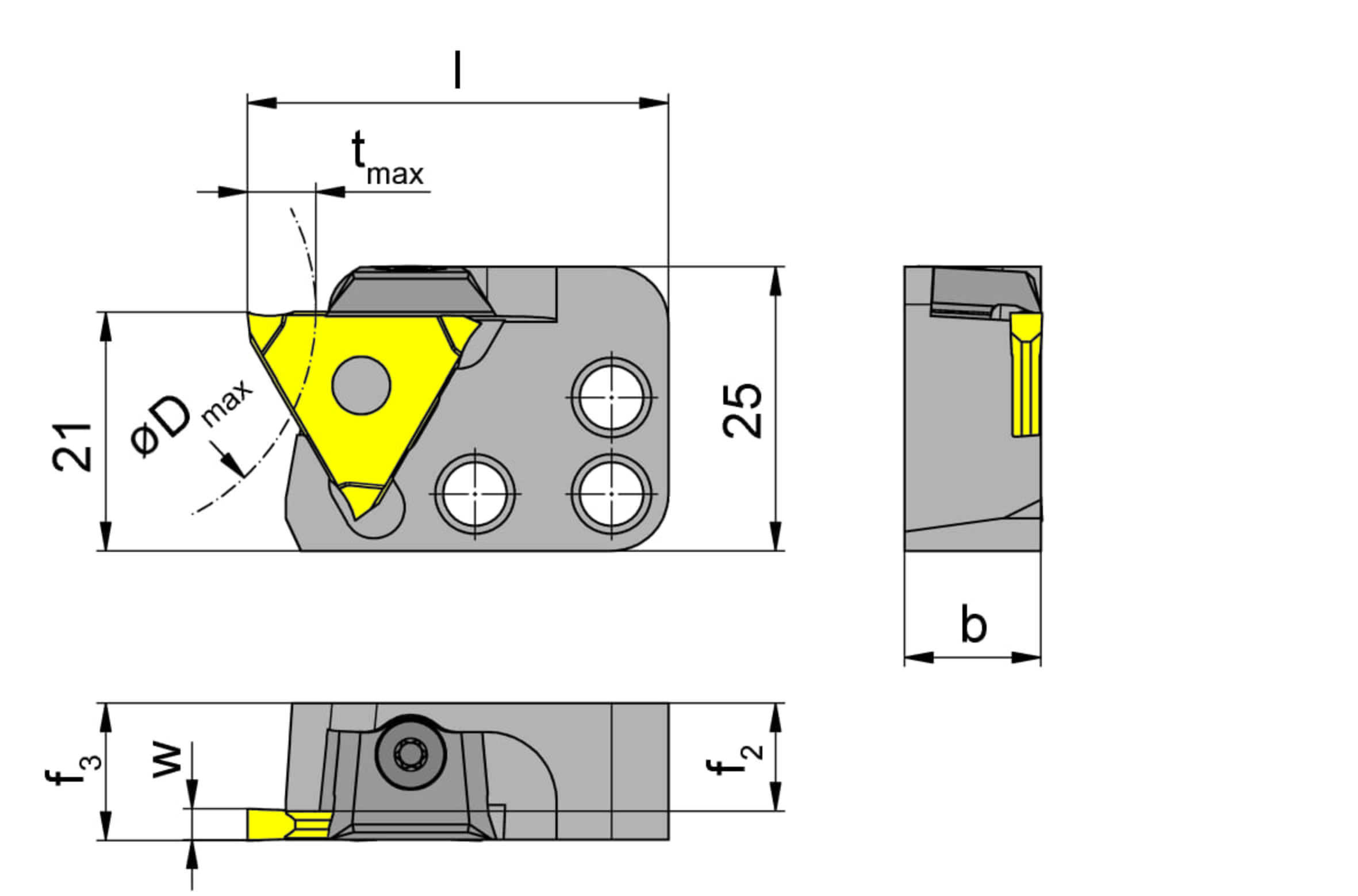

Adjustment dimension locating face insert (f2)

10.5 mm

eclass-shortcut

21-18-10-04

cutting-width-min-met

0.5 mm

cutting-width-max-met

1.9 mm

Katalog_CCTMS

840001

ISO_CCTMS

HORN84000183$$

DIN_CCTMS

HORN-84000183

Katalog_CCTWS

31201N;31201R;31201L;31208N;31211N

DIN_CCTWS

HORN-31201000N;HORN-31201000R;HORN-31201000L;HORN-31208000N;HORN-31211000N

ISO_CCTWS

HORN-31201$000N$$$$$;HORN-31201$000R$$$$$;HORN-31201$000L$$$$$;HORN-31208$000N$$$$$;HORN-31211$000N$$$$$

Adjustment dimension of system cassette formula (f3)

f2+w-a1

Clamping range maximum (Spannbereich)

1.9 mm

Clamping range minimum (Spannbereich)

0.5 mm

Maximum workpiece diameter (Dmax)

40 mm

Maximum depth of groove (tmax)

4 mm

Cassette thickness (b)

12 mm

Total length (including cutting insert) (l)

37 mm
